Medium Size Excavator for Sale - - AILISHENG Construction Equipment

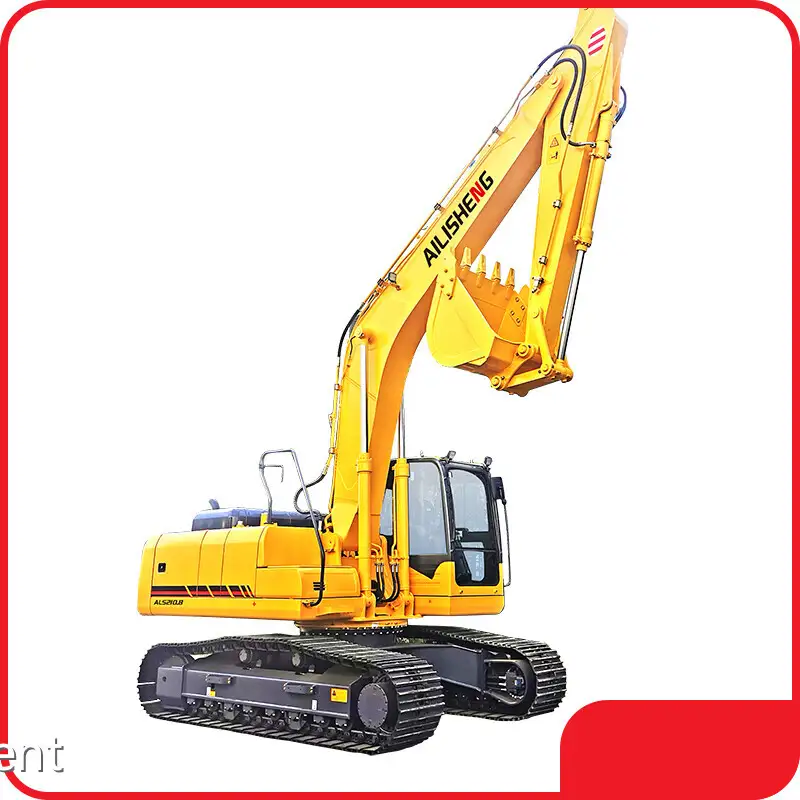

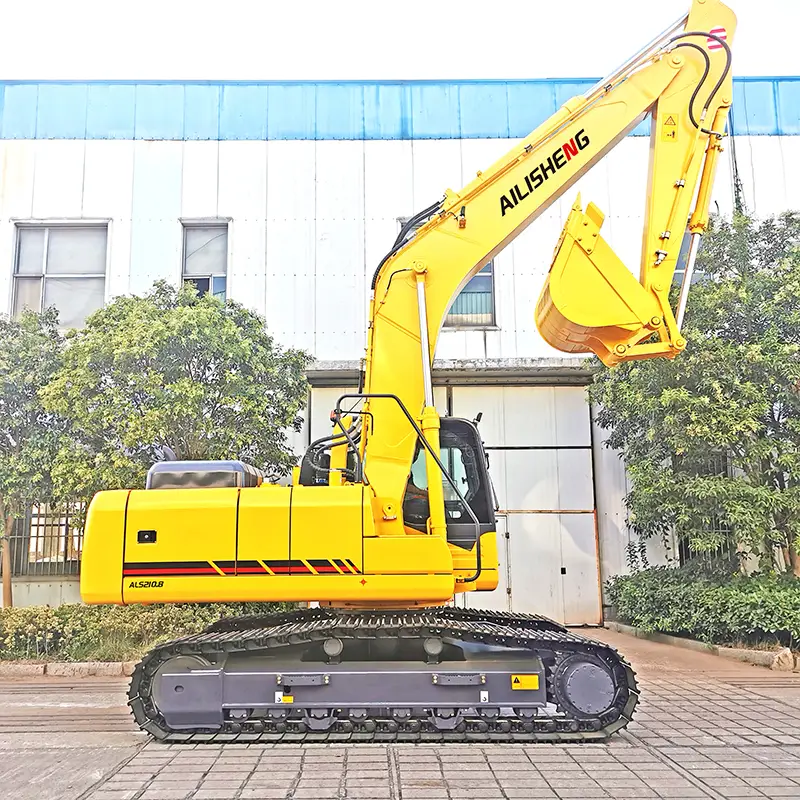

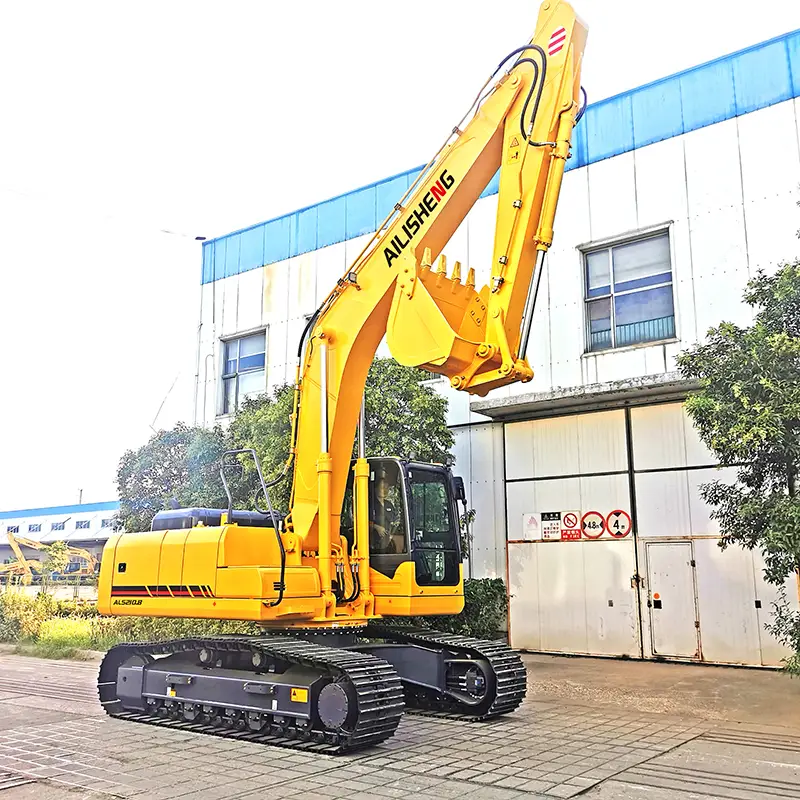

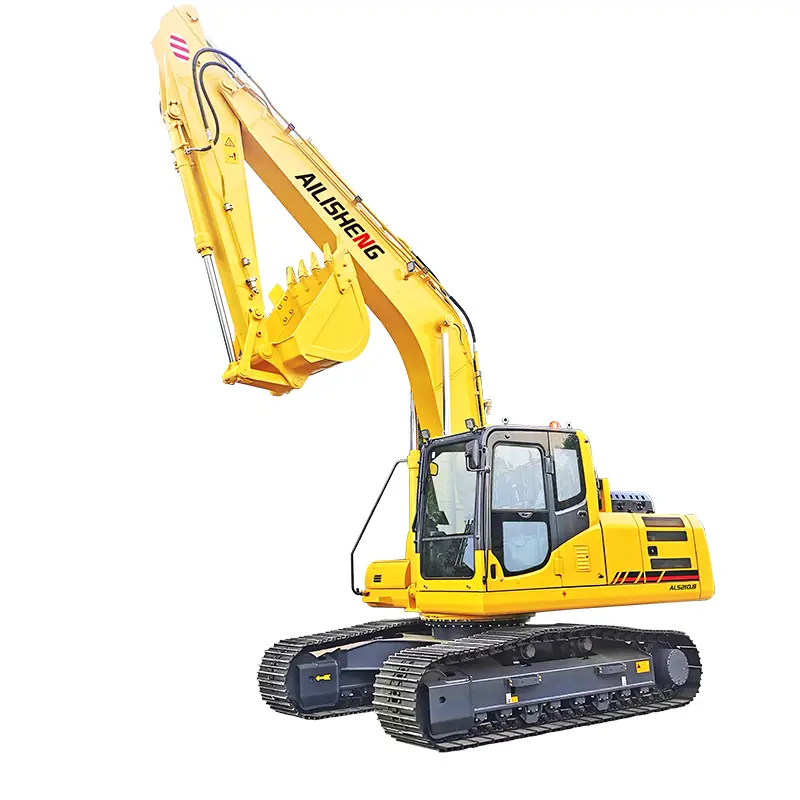

Product details of the medium size excavator for sale
Product Introduction
The wonderful color of our medium size excavator for sale is big plus. The performance of this product is more stable than that of other products on the market. Our professional QC engineers keep track of the entire process of testing.
High-efficiency Kawasaki hydraulic system
The internationally renowned hydraulic system and intelligent electronic control system greatly improve the product's working efficiency, with stable performance, soft operation and reliable quality. The overall performance of the hydraulic system is reasonably matched with the output power of the engine, which significantly reduces energy loss.
High reliability Cummins engine
Using the well-proven Cummins 4BTAA3.9-C115 engine, it has abundant power and good durability and is suitable for fuel in general areas with high fuel economy. Perfect matching of engine and pump power, low fuel consumption, low emissions, and low cost.
High efficiency working perfomance
The potent power output and Ailisheng's unique intelligent control system and intelligent power control technology ensure efficient operation and reduce fuel consumption.
Strengthening the structure
Ensure the reliability and durability of the excavators.
1. Reinforced boom & arm,
2. High stress zone:Reinforced thick plate,
3. Critical parts:Forgings and castings
4. Middle area:Reinforced with welded partitions;
Increase the thickness of the plate for critical parts and adapt to the advanced manufacturing process to improve durability. It not only increases the plate thickness and force-bearing area but also adopts an integrated casting structure at the linked part, dramatically improving service life.
Ultra-long life
Finite element stress analysis software and MT and UT dual flaw detection guarantees are used to improve the strength of structural parts and covering parts.
Structure-optimized chassis
The chassis structure design is optimized to improve the overall working stability and the durability of the lower chassis. ALS130.8 has the characteristics of wide gauge and long track characteristics, more reasonable weight distribution, stability in dynamic and slope operation, stronger side lifting force, and more stable operation under heavy load.
Luxury cab
Adhering to Ailisheng's driver-centered design concept, with comfortable operation, wide field of vision and low noise. It has an air-conditioning system that meets the operation's needs and a multi-functional LCD instrument panel to improve the comfort and convenience of the operation.
The main frame and boom are equipped with LED work headlights as standard
The main frame and boom are equipped with LED work headlights as standard: significantly improving the driver's night work vision and improving night work efficiency and safety.
Maintainability
The distribution of maintenance parts is reasonably designed, and daily inspections can be easily performed on the ground.
Service
Our commitment to total customer satisfaction extends worldwide. To keep your machine and business up and running with Ailisheng uptime services that are proven to cut repair costs and unplanned downtime. Ailisheng always takes customer needs as the starting point and provides customers with a full range of services, including maintenance, repair, accessories, and value-added care.
Application range: mining, general engineering, municipal engineering, road engineering.
|
Type |
|
ALS210.8 |
|
Operating weight |
T |
21.5 |
|
Bucket capacity(SAE) |
m3 |
0.9-1.1 |
|
Engine model |
|
6BTAA5.9-C178-II |
|
Power |
kw/r/min |
133/2000 |
|
Volume of fuel tank |
L |
350 |
|
Travel speed (High/Low) |
km/h |
5.8/3.2 |
|
Swing speed |
r/min |
10.7 |
|
Gradeability |
° |
35 |
|
Digging force of bucket |
KN |
147.9 |
|
Digging force of stick |
KN |
107.3 |
|
Specific pressure of ground contact |
Kpa |
45.3 |
|
Max. traction |
kN |
220 |
|
Type of hydraulic pump |
|
AP4V0140(or K3V112DT-1) |
|
Maximum flow |
L/min |
280*2(223*2) |
|
Working pressure |
Mpa |
34.3 |
|
Volume of hydraulic fluid tank |
L |
230 |
|
A-Overall length |
mm |
9535 |
|
B-Overall Width |
mm |
2780 |
|
C-Overall height(tope of boom) |
mm |
3140 |
|
D-Overall height(tope of cab) |
mm |
3090 |
|
E-Gap from counterweight to ground |
mm |
1080 |
|
F-Min ground clearance |
mm |
470 |
|
G-Tail swing radius |
mm |
2800 |
|
H-Length of track on ground |
mm |
3260 |
|
J-Track length |
mm |
4070 |
|
K-Gauge |
mm |
2180 |
|
L-Width of track |
mm |
2780 |
|
M-Width of track shoe |
mm |
600 |
|
N-Width of turning table |
mm |
2700 |
|
O-Max. digging height |
mm |
9270 |
|
P-Max. dumping height |
mm |
6600 |
|
Q-Max. digging depth |
mm |
6525 |
|
R-Max. vertical wall digging depth |
mm |
5670 |
|
Max. digging depth at 2.5m plane |
mm |
6327 |
|
T-Max. digging distance |
mm |
9820 |
|
U-Max. digging distance at plane |
mm |
9630 |
|
Min. swing radius |
mm |
3800 |
|
Max height at min swing radius |
mm |
7640 |
|
Distance from center of swing to rear end |
mm |
2870 |
|
Y-Thickness of track grouses |
mm |
26 |
|
Length of stick |
mm |
2900 |
|
Length of boom |
mm |
5700 |
Company Feature
• AILISHENG Construction Equipment is located in a position where multi traffic lines pass through. It is conducive to outward transportation and the timely supply of Electric Construction Equipment,Excavators,Wheel Loaders,Soil Vibratory Compactors,Landfill Compactors,Skid Steer Loaders,Forklift Trucks,Telescopic Forklift,Dozers,Motor Graders,Backhoe Loaders.
• AILISHENG Construction Equipment has a number of highly skilled and experienced professionals. They provide the strength to continuously develop new products and improve existing products.
• We have a large and complete sales network. Therefore, some of the products have been exported overseas and they are very popular among overseas consumers.
• AILISHENG Construction Equipment was founded in Based on the years of experience, we have become a famous production enterprise at home and abroad.
AILISHENG Construction Equipment always focuses on the quality of products and services. Electric Construction Equipment,Excavators,Wheel Loaders,Soil Vibratory Compactors,Landfill Compactors,Skid Steer Loaders,Forklift Trucks,Telescopic Forklift,Dozers,Motor Graders,Backhoe Loaders have excellent quality and favorable price. If needed, please leave your contact information. We will get back to you as soon as possible.
