Product features

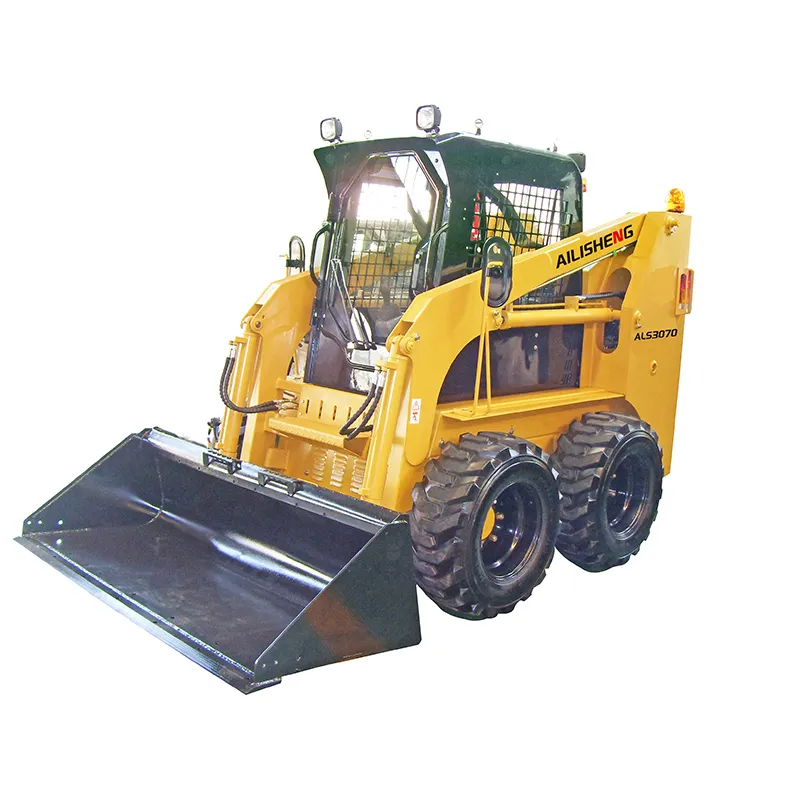

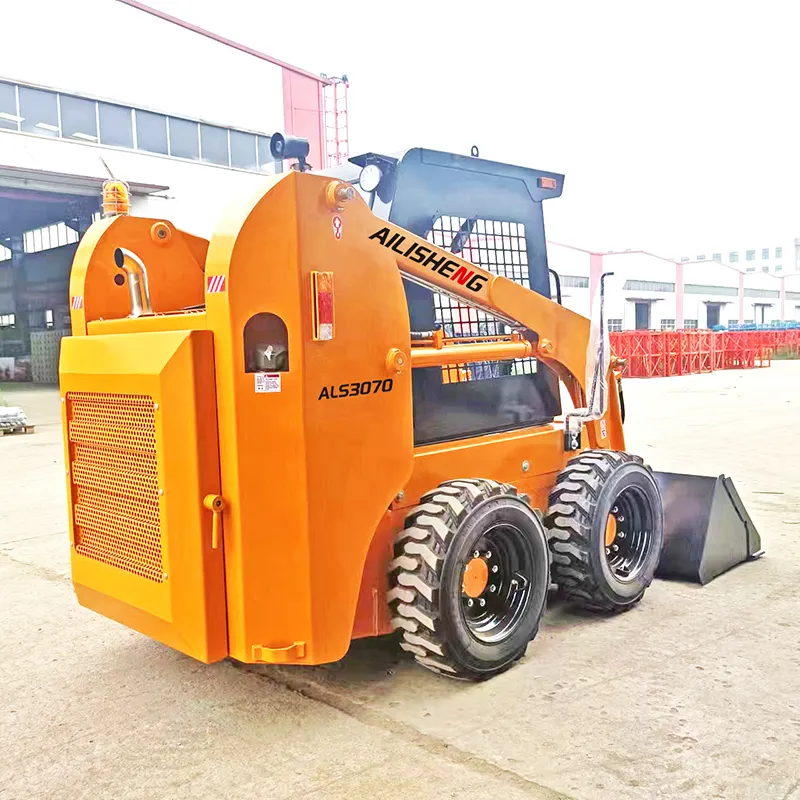

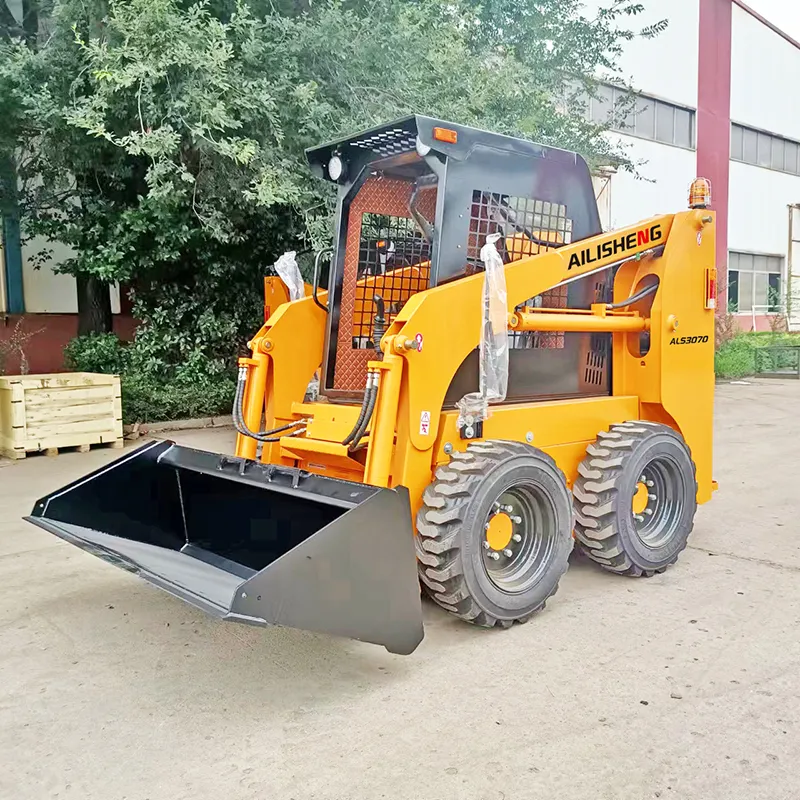

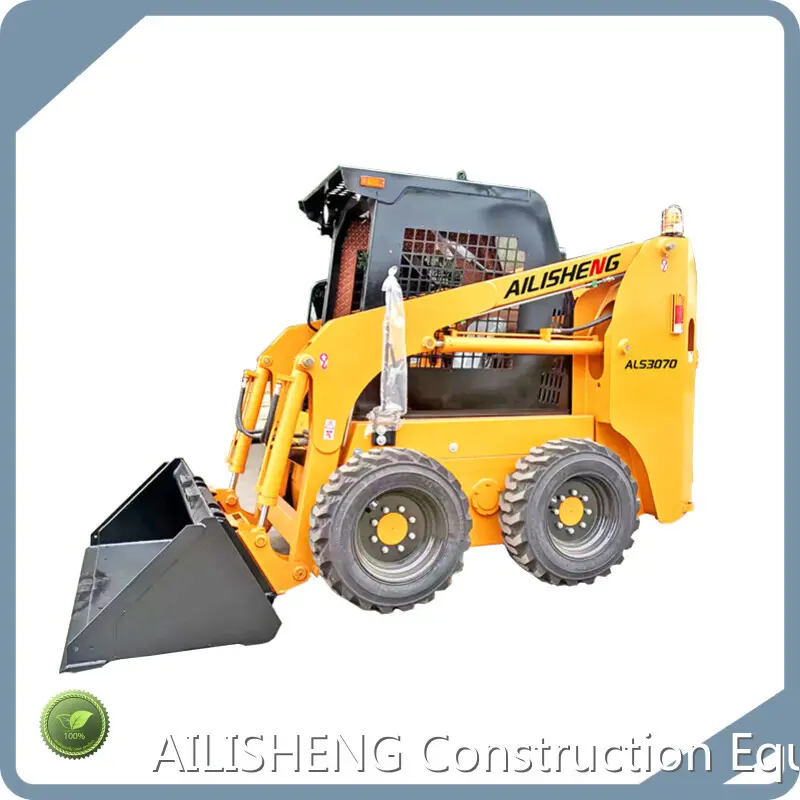

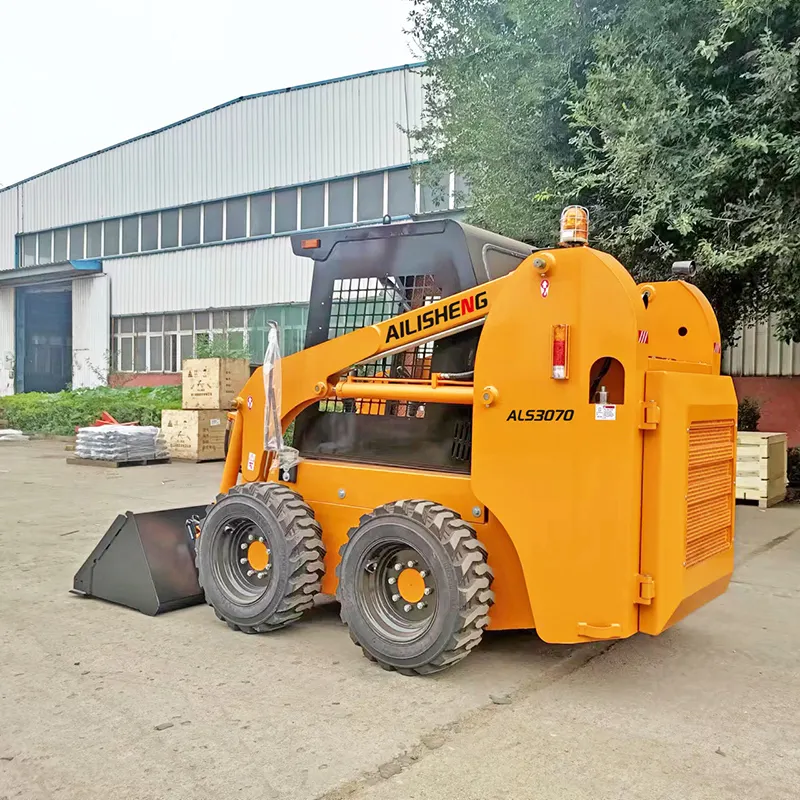

- Delivering unmatched performance, versatility, and ease of operation, the Ailisheng Skid Steer Loader is ideal for small confined areas, such as constructions sites, factory facilities, workshops, warehouses, docks, decks, ship cabins as well as other key sectors.
- Skid steer loader can attach various attachments to perform shoveling, stacking, lifting, digging, boring, breaking,grabbing, pushing, scarification, trenching, compacting, road cleaning, and many other operations which are provided to increase your flexibility, enabling you to handle many jobs with just the one machine.
- Using of simulation technology to learn the mission data at travelling and working conditions helped optimizing power and fuel efficiency.
-Compact structure, maneuverable movement suitable for narrow Space operation.
-Open cabin with mechanical control system.
-Double accelerograph control.
-Hydraulic brake.
Main Parameters
|
ALS3070 |
Engine Brand |
Xinchai |
Engine model |
490 |
Bore x stroke (mm) |
95X105 |
Rated power (Kw) |
37 |
Rated speed(rpm) |
2650 |
Number of cylinders |
4 |
Max. torque (N.m) |
156 |
Displacement (L) |
2.67 |
Max. Speed (km/h) |
12 |
Tire (track) model |
10-16.5 |
Loading Capacity (kg) |
700 |
Lifting Type |
Arc-Shaped Lifting |
Bucket capacity(m3) |
0.4 |
Rated flow(L/min) |
75 |
tank capacity(L) |
65 |
Weight with bucket(kg) |
3100 |
Dimension |
|
Height at Maximum Extension(mm) |
3980 |
Hinge Pin Height (mm) |
3080 |
Total Height (mm) |
2140 |
Height to bottom of bucket(mm) |
2913 |
Overall length without bucket ( mm ) |
2640 |
overall length with bucket(mm) |
3420 |
Dumping angle at maximum height(° ) |
40 |
Dumping height(mm) |
2380 |
Dumping reach(mm) |
750 |
Rollback at ground position(° ) |
30 |
Rollback fully raised at max. height(° ) |
104 |
Wheelbase(mm) |
991 |
Ground clearance(mm) |
185 |
Angle of departure(°) |
20 |
Front turning radius without bucket(mm) |
1168 |
Front turning radius(mm) |
1958 |
Rear tuning radius(mm) |
1630 |
Rear length (mm) |
1108 |
Track width(mm) |
1450 |
Width (mm) |
1720 |
Bucket width (mm) |
1740 |
The structure and parameters are subject to change without prior notice due to technical progress. If the sample product is different from the actual product in some way, the actual product shall prevail. |
Company Advantages
· AILISHENG Construction Equipment has been developing professional design concept to maintain its competitiveness.
· The product has undergone rigorous testing during the trial production phase.
· While pursuing growth, Xiamen Ailisheng Intelligent Equipment Co.,Ltd must also take into account environmental protection.
Company Features
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd is an ambitious mini skidsteer for sale manufacturer. We have progressed from the beginning through our own organic evolution.
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd has strong technical force and has a high-quality professional R&D team.
· AILISHENG always guarantees quality and service. Get info!
Application of the Product
Our mini skidsteer for sale is widely used in industry.
AILISHENG Construction Equipment has many years of industrial experience and great production capability. We are able to provide customers with quality and efficient one-stop solutions according to different needs of customers.
