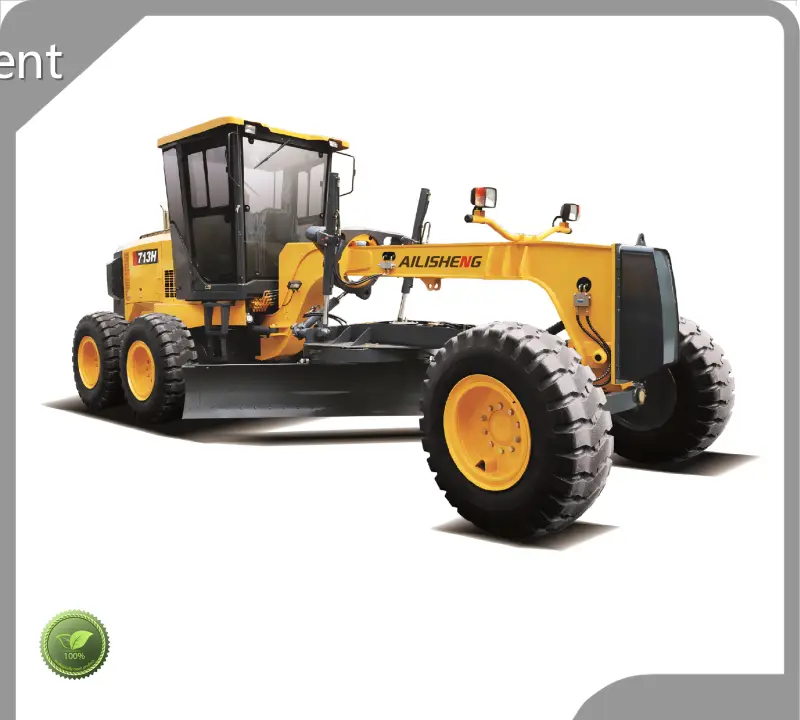

Product details of the mini road graders for sale
Product Information
We develop AILISHENG Construction Equipment mini road graders for sale using hi-tech tools and equipment. We use the guaranteed raw materials we source for trusted suppliers to guarantee the quality of this product. Xiamen Ailisheng Intelligent Equipment Co.,Ltd continuously upgrades and perfects mini road graders for sale to better serve customers.
Excellent Performance
· Sing-handle electro-hydraulic controlled power-shift T/M, 6forward & 3reverse shifts makes operation easy and convenient.
· Hydraulic lock, auto lock/unlock NO-SPIN(OPTIONAL) differential ensures stability and powerful traction.
· Ideal axle load allocation provides excellent stability while cutting hard surface.
· Serviceable, efficient hydraulic system enables every part to be fully used
· Reliable full hydraulic brake system ensures safety.
· Box-typed frame and advanced T/M enable it to complete heavy-duty work.
· A wide working range is accomplished through flexible blade suspension system and articulated frame.
Specifications

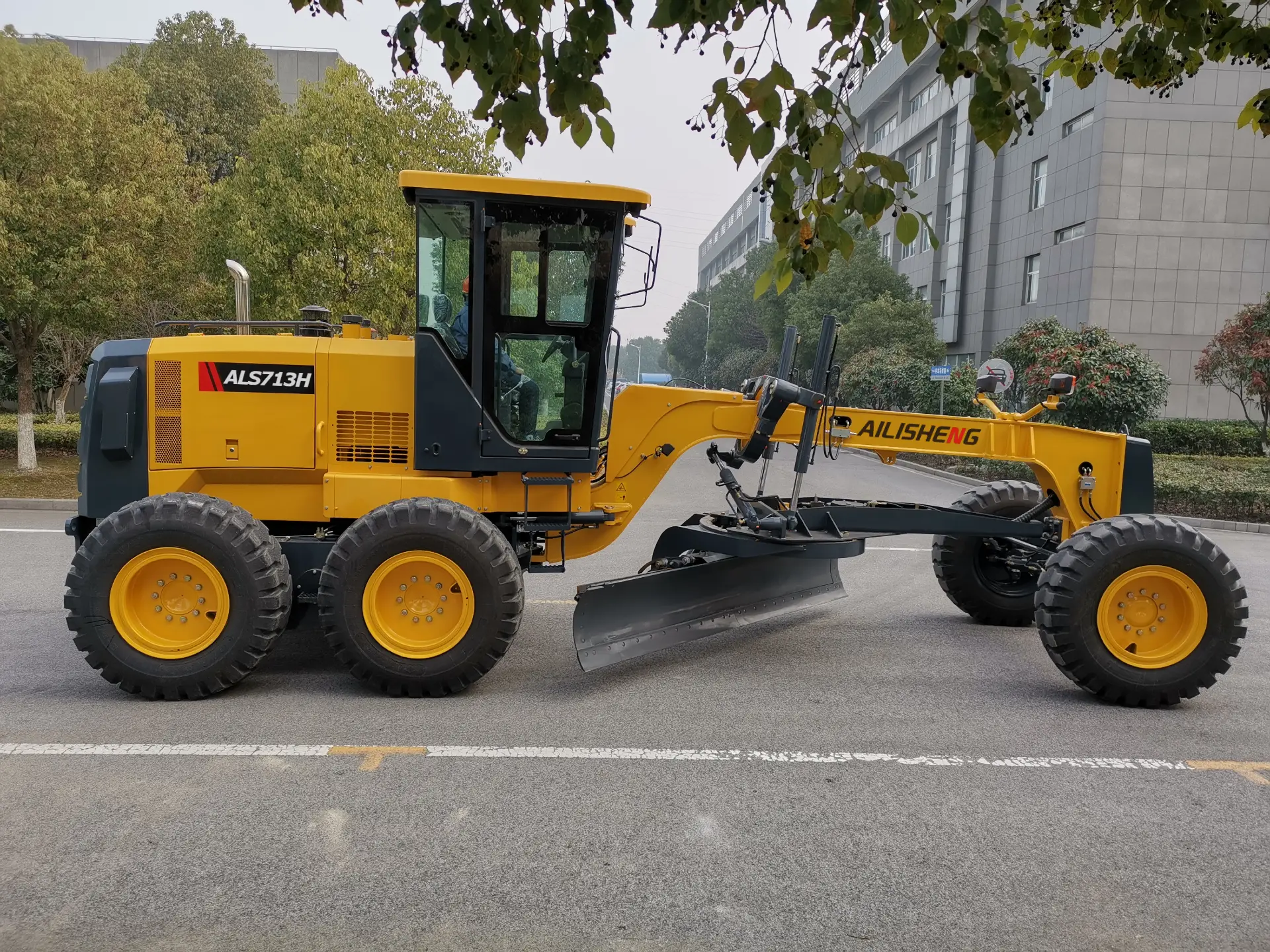

Overall Dimension ALS713H | ||||||||||||
1 | Length | 8290mm | ||||||||||
2 | Width | 2600mm | ||||||||||
3 | Height(To the top of the cab) | 3465mm | ||||||||||
4 | Wheel base | 5780mm | ||||||||||
5 | Tread | 2120(mm) | ||||||||||
6 | Min. turning radius | 6.6(m) | ||||||||||
Main Technical Specification | ||||||||||||
1 | Operating weight | 12000kg | ||||||||||
2 | Blade length | 3658mm | ||||||||||
3 | Blade height | 580mm | ||||||||||
4 | Shovel Blade thickness | 20mm | ||||||||||
5 | Max. lift above ground | 410mm | ||||||||||
6 | Max. grading depth | 560mm | ||||||||||
7 | Max. shoulder reach outside rear tire | 2000mm | ||||||||||
8 | Traveling speed(Km/h),6 forward and 3 reverse | |||||||||||
(1) forward | 6.9/10.7/17.3/26/37.8/53.4 | |||||||||||
(2) reverse | 6.9/17.3/37.8 | |||||||||||
Diesel engine | ||||||||||||
1 | Model | DongFeng Cummins 6BT5.9-C130 6BT5.9-C130 | ||||||||||
2 | Type | Direct injection. Turbocharged. Water cooling | ||||||||||
3 | Rated output | 97kW | ||||||||||
4 | Rated speed | 2200(r/min) | ||||||||||
5 | Max. Torque | 560(N.M)/1500rpm | ||||||||||
Transmission case | ||||||||||||
1 | Model | YD13 (HANGCHI ADVANCE) | ||||||||||
2 | Type | power shift, single-shift lever, natural-shift lock device | ||||||||||
3 | Gear shift position | 6 Forward and 3 reverse gears | ||||||||||
Axle and Tire | ||||||||||||
1 | Max. drawing force | 61.7KN(f=0.75) | ||||||||||
2 | Size of tire | 17.5-25-12PR(standard) | ||||||||||
13.00-24-12PR(optional) | ||||||||||||
Working Device Hydraulic System | ||||||||||||
1 | System pressure | 17.5MPa | ||||||||||
Steering System | ||||||||||||
1 | Type | Fore Tires deflexion | ||||||||||
2 | System pressure | 16MPa |
