Product details of the skid steer loader backhoe attachment
Quick Overview
AILISHENG Construction Equipment
Product Description
Compared with products in the same category, skid steer loader backhoe attachment's core competencies are mainly reflected in the following aspects.
Product's main technical parameter
Drive unit technical parameters | |||||
Model | ALS51025 | ALS51045 | ALS51075 | ALS510100 | ALS510200 |
Overall length(rodless)(mm) | 242 | 307 | 317 | 321 | 400 |
Overall width(rodless)(mm) | 184 | 240 | 237 | 245 | 312 |
Overall height(mm) | 1847 | 1926 | 2043 | 2149 | 2556 |
Weight(kg) | 148 | 187 | 249 | 297 | 498 |
Flow(L/min) | 23-61 | 23-76 | 45-151 | 45-151 | 45-151 |
Operation pressure(MPa) | 17 | 17 | 18.5 | 17 | 18.5 |
Soil drilling bore holes(mm) | 50-300 | 100-400 | 100-500 | 100-700 | 100-1000 |
speed | 42-152 | 20-73 | 31-107 | 20-72 | 11-37 |
maximum drilling depth(m) | 1.6 | 2.1 | 2.4 | 3 | 5.3 |
Hexagonal output shaft dimensions (inches) | 2 | 2 | 2 | 2.5 | 2.6 |
Drill length(m) | 1.22 | 1.22 | 1.22 | 1.6 | 1.6 |
Rated torque(N.M) | 870 | 2325 | 3400 | 4850 | 10000 |
Applicable excavator (T) | 0.8T-1.5T | 1.5T-2.5T | 2T-3.5T | 4T-5.5T | 8T-12T |
Common drill code ALS | ||||||||
Model | ALS02 | ALS04 | ALS06 | ALS08 | ALS09 | ALS10 | ALS12 | ALS14 |
Screw outside diameter(mm) | 50 | 100 | 150 | 200 | 223 | 250 | 300 | 350 |
Model | ALS16 | ALS20 | ALS24 | ALS28 | ALS32 | ALS36 | ALS40 | |
Screw outside diameter(mm) | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
Different drive unit is equipped with different drill pipe joint
Extension rod | |||||
Model | ALS-300 | ALS-500 | ALS-600 | ALS-1000 | ALS-1200 |
Length(mm) | 300 | 500 | 600 | 1000 | 1200 |
Ref weight(Kg) | 14 | 16 | 18 | 23 | 25 |
Drill pipe and extension rod custom-made will be accepted.
Model of tool combination | |
Skid steer loader | 0510 XX SDXX + L-XX |
Wheel loader | BM02 XX SDXX + L-XX |
Excavator | HN29 XX SDXX + L-XX |
Mini skid steer loader | Mini0510 XX SDXX + L-XX |
Product's Main features

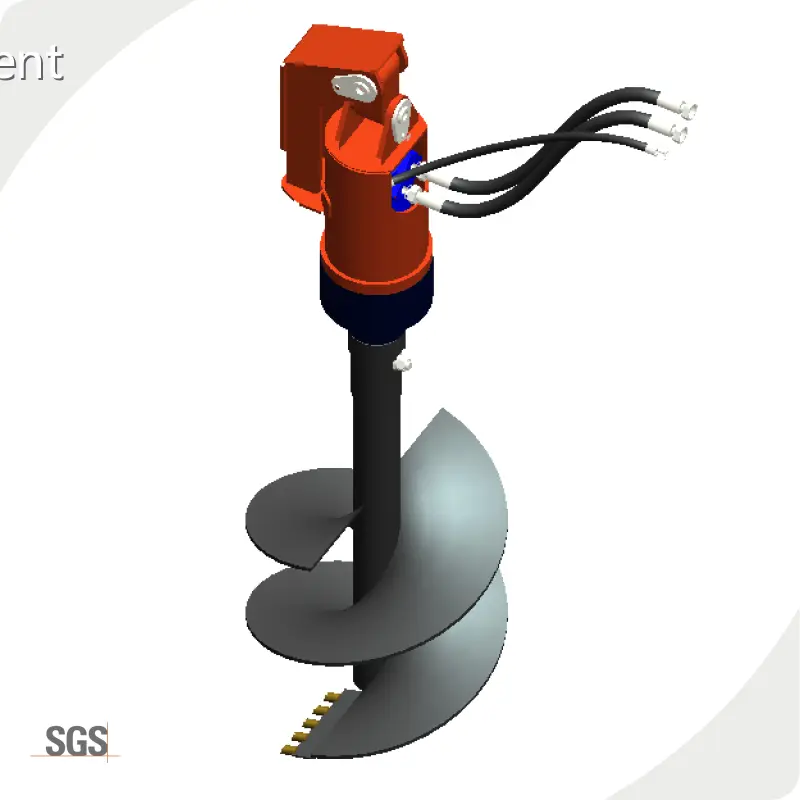

The auger attachment can be adapted to skid steer loaders, wheel loaders, excavators and Mini skid steer loaders, which are used for digging tree pits during afforestation, digging poles on both sides of the road and other operations, with high efficiency and easy to use.
P.S.: The product is constantly updated and improved, we reserve the right to change the parameters and design without informing the user in advance. There may be differences between the appearance color of the product in the photo and the actual product, and the color standard shall prevail.
Company Introduction
As an expert in manufacturing skid steer loader backhoe attachment, AILISHENG Construction Equipment occupies a dominant position in the market. AILISHENG Construction Equipment accomplishes great achievement in developing high-quality skid steer loader backhoe attachment. We have a focus on delivering customer value. We are committed to our customers' success by providing them with the highest quality supply chain services and operational reliability.
If you are interested in our products, please feel free to contact us.
