Product's Main technical parameter
ALS272 Sweeper technical parameter | ||
Model | ALS272C Domestic motor | ALS272B Import motor |
Overall length (mm) | 1442 | 1442 |
(mm)Overall width | 2082 | 2137 |
Overall height (mm) | 677 | 677 |
Overall weight (kg) | 495 | 495 |
Collection hopper bucket capacity (m3) | 0.46 | 0.46 |
Effective clearance width (mm) | 1830 | 1830 |
Brush roll diameter (mm) | φ660 | φ660 |
Maximum permissible pressure (Mpa) | 21 | 21 |
Operating flow (L/min ) | 60-80 | 60-80 |
Applicable model | Skid steer loader/small whell loader | Skid steerloader/small whell loader |
Option attachment Atomizing dust removal system, side brush cleaning system, foot pedal, anti-collision beam, quick change (imported or domestic) |
Product's main features

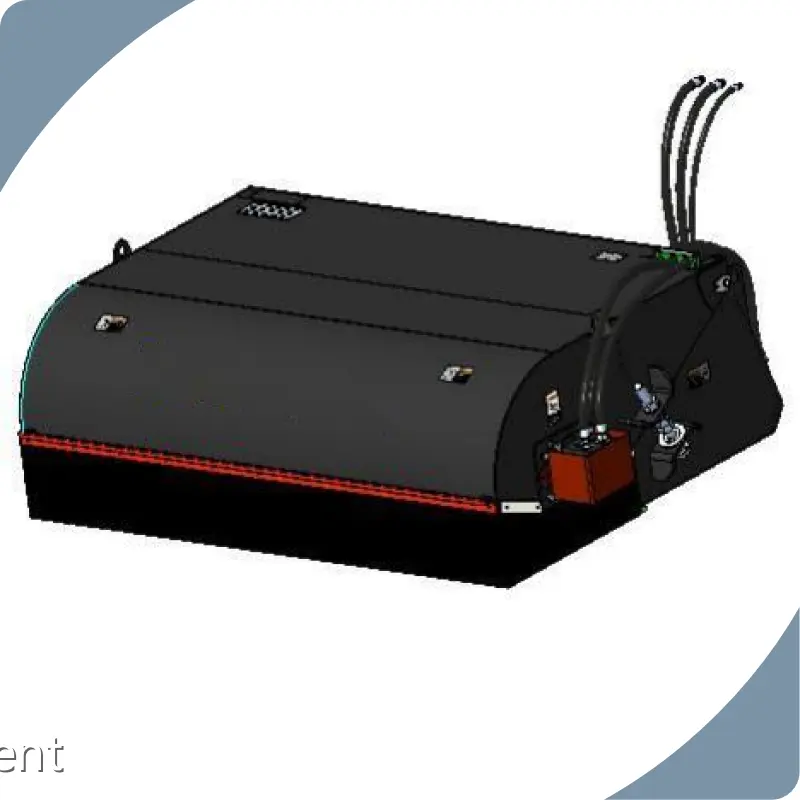

The machine attachment can be
installed in the skid steer loader, small wheel loader and other machines, can
clean the dust and waste on the road, quickly clean the parking lot, sidewalk,
wharf, warehouse and port and other sites. Can be cleaned garbage in the
bucket, put in the designated position. Can easily solve the problem of
cleaning before the highway paving, efficient cleaning operation, good construction
effect, high efficiency.
1. Using hydraulic
drive, can realize positive and negative two directions cleaning, bucket bottom
with replaceable wear plate to extend the service life of the bucket body.
2. Brush using a new
type of mixed wire brush, which: plastic wire for high elastic, wear-resistant
polyethylene engineering materials, steel wire using high elastic,
wear-resistant material 32SiMnTi, greatly improve the service life and cleaning
effect of the brush.
3. The motor end
design has anti winding device, prevent wire winding motor affect the service
life of the motor.
4. The unique
anti-overturning design, can effectively prevent the cover overturning, damage
the cab.
5. The optional side
brush can be used for roadside, wall and drainage cleaning.
6. Optional high
pressure atomization dust removal system, to achieve the effect of dust removal
and dust suppression.
7. Suitable for
small loader, please add (overturning bucket, bucket) limit block according to
the host situation.
P.S.:The products are being updated and improved constantly. We reserve the right to change the parameters and design without informing the user in advance. There may be differences between the appearance color of the product in the photo and the actual product.
