High-quality Mini Dozer
Company Advantages
· AILISHENG Construction Equipment mini dozer is designed with a variety of styles.
· The product is examined on set industry standards to make sure that it is free from flaws.
· Before loading, all the mini dozer will be through complete tests.
Scope of Application:

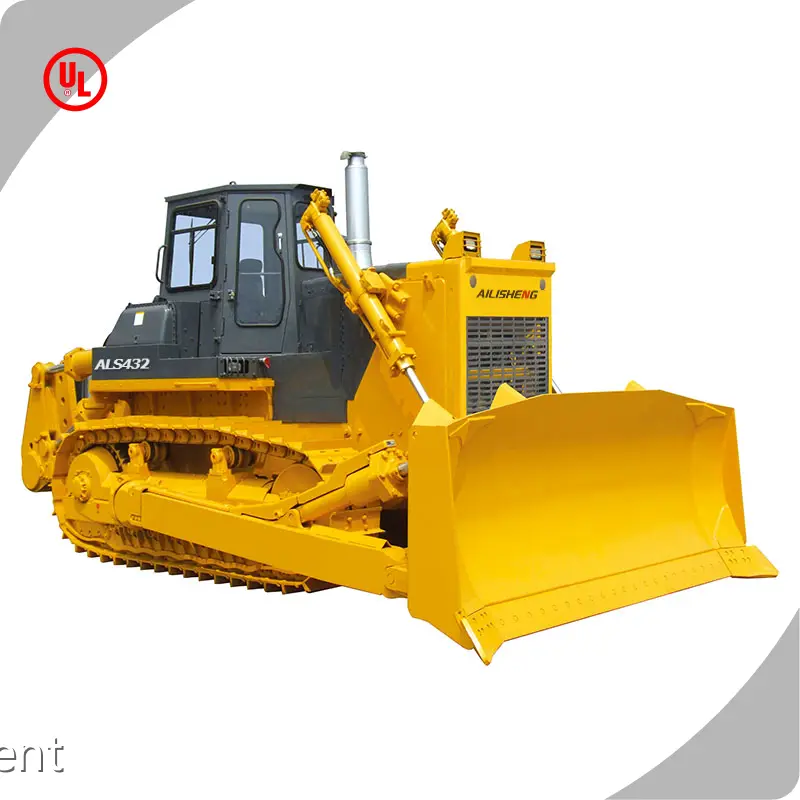

ALS432 crawler bulldozer, carries out standardized mass production of high-power bulldozer. The whole machine adopts advanced hydraulic transmission, hydraulic control technology, advanced and reasonable structure, light and flexible operation, quality and reliable.
Main Features
•A CUMMINS NTA855-C360S10 engine which can gives you more power and reliability you need.
•The highly reliable power shift transmission, stable torque converter and the two-stage straight-tooth structure final drive transmit power efficiently.
•With independent engine cooling water tank, chassis oil cooler, water and air intercooler provides excellent cooling performance and simple maintenance operation to ensure continuous operation of the machine.
•The main frame of the full box structure adopts steel plate welded full box type integral structure, which is welded with the rear axle box. It has high impact load bearing capacity and resistance to bending and twisting. High quality weld seam ensures the main frame has a full life cycle.
•The final drive is driven low and provides more powerful driving force and efficient gradeability. The crawler-type walking chassis has reached the international advanced level and is suitable for various complicated working conditions, with high reliability and carrying capacity.
•The standard straight tilt blade features powerful cutting force and the three-shank ripper can be equipped for the ripping of clay and frozen earth, featuring high working efficiency and super-strong penetrating force
Main Specifications
| Model | ALS432 |
| Type | Standard Hydraulic Crawler Type |
| Engine Model | CUMMINS NTA855-C360S10 |
| （L）Displacement | 14.01 |
| （kw/rpm）Rated power | 257/2000 |
| （N.m/rpm）Max.torque | 1440@1400 |
| Operating weight | 37.2 Ton |
| (mm) Dimension(no ripper) | 6535×4150×3515 |
| (mm) Grounding length | 3150 |
| (MPa) Ground pressure | 0.105 |
| （mm） Track gauge | 2140 |
| (m³) Dozing capacity | 10 |
| （mm） Blade width | 4150 |
| （mm） Blade height | 1610 |
| （mm） Max drop below ground | 560 |
| （mm） Track shoe width | 560 |
| （mm） Pitch | 228.6 |
| Quantity of track link | 41 |
| Quantity of Carrier rollers | 4 |
| Quantity of Track rollers | 14 |
| （MPa） Max pressure | 14 |
| L/min Discharge | 355 |
| （KN） Max tractor force | 280 |
| (Km/h) Forward Speed | F1:0-3.6 |
| F2:0-6.6 | |
| F3:0-11.5 | |
| (Km/h) Rear Speed | R1:0-4.4 |
| R2:0-7.8 | |
| R3:0-13.5 |
Company Features
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd is leading the mini dozer market.
· AILISHENG Construction Equipment has the capability to produce mini dozer with high quality. Our QC team plays an important role in the quality assurance of mini dozer. High durability performance of mini dozer makes our clients rest assured during the transportation.
· AILISHENG Construction Equipment always regards high quality as the most important factor for an enterprise's success. Please contact.
Product Details
Our mini dozer has better quality performance by virtue of the following excellent details.
Application of the Product
AILISHENG Construction Equipment's mini dozer can be used in multiple industries.
Since the establishment, AILISHENG Construction Equipment has always been focusing on the R&D and production of Electric Construction Equipment,Excavators,Wheel Loaders,Soil Vibratory Compactors,Landfill Compactors,Skid Steer Loaders,Forklift Trucks,Telescopic Forklift,Dozers,Motor Graders,Backhoe Loaders. With great production capability, we can provide customers with personalized solutions according to their needs.
Enterprise Advantages
AILISHENG Construction Equipment recruits people with ability and virtue to build a comprehensive talents team. Our team members have excellent academic performance and professional skills.
In order to provide customers with quality services, we will conduct various services before, during and after sales to ensure customer satisfaction.
Looking forward to the future, AILISHENG Construction Equipment will insist on the overall development strategy of 'management modernization and market internationalization'. Besides, we speed up the pattern transformation of economic development and stick to the development road of circular economy. In this way, we can make new and greater contributions for promoting the economic development, social progress and realizing China's dream.
AILISHENG Construction Equipment was incorporated in After years of painstaking effort, our overall strength and brand influence have been greatly improved. It promotes us to become one of the outstanding enterprises in the country.
AILISHENG Construction Equipment has sales outlets in many provinces, municipalities and autonomous regions in China, making the sales range covering the whole country.
