Excavators Manufacturer Products Wholesale - AILISHENG Construction Equipment
Company Advantages
· AILISHENG Construction Equipment excavators manufacturer reflects the finest craftsmanship in the industry.
· It has been rigorously tested for quality and performance.
· By implementing comprehensive quality control, the quality of excavators manufacturer is deeply replied by customers.
Product features

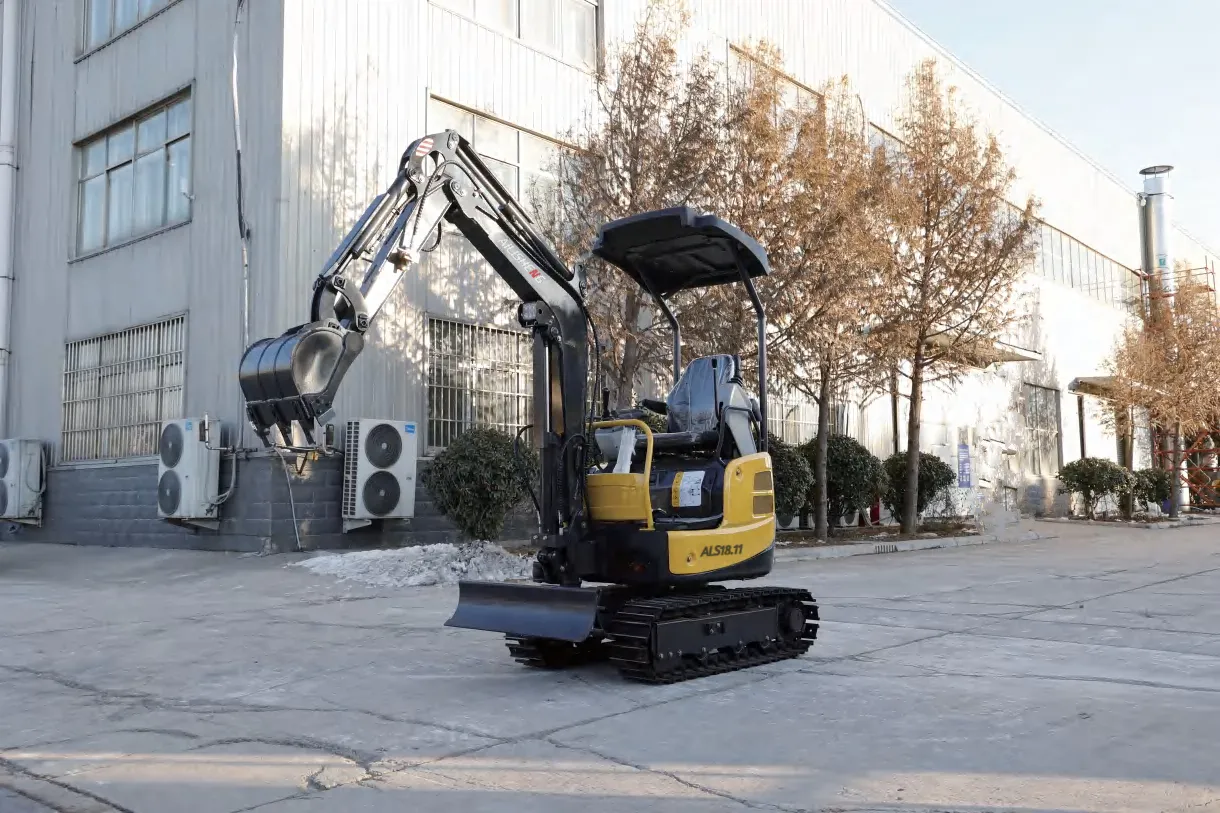

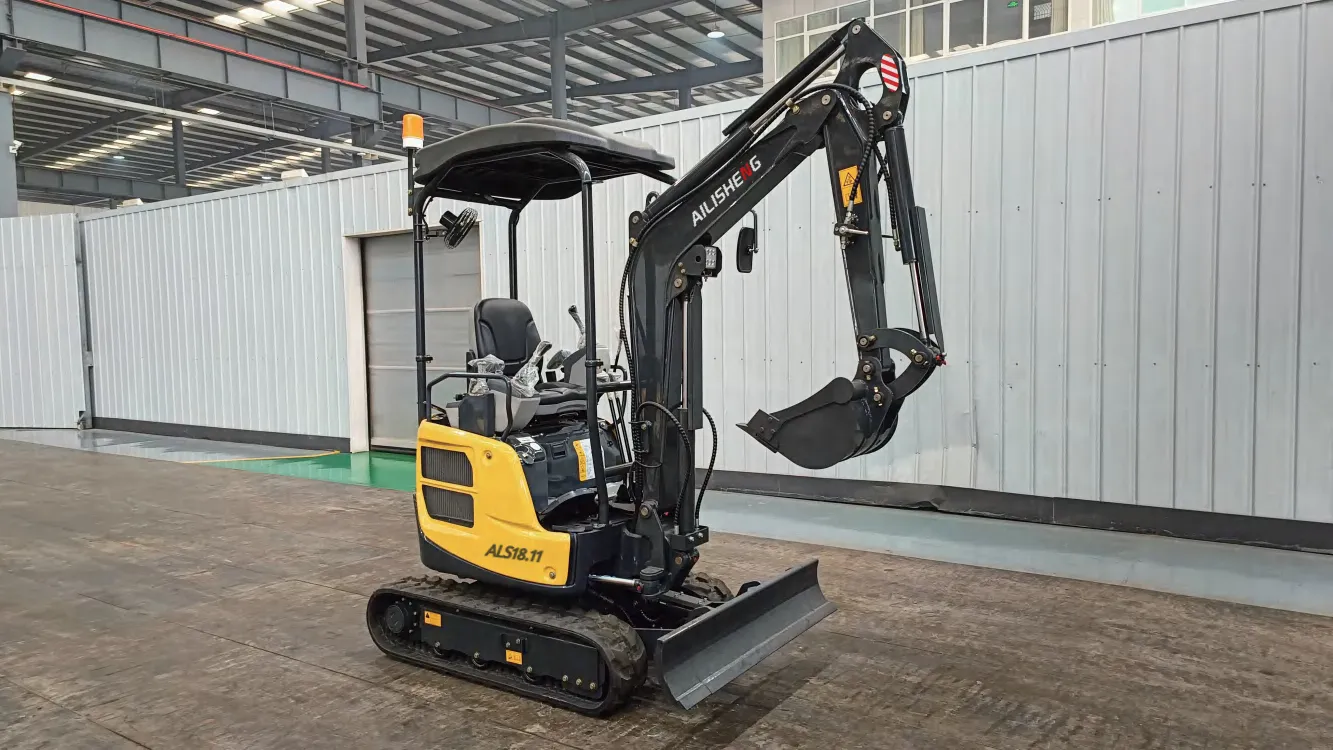

ALS18 combines a compact design with wide digging reach for efficient performance, excellent maneuverability, and tough durability to ensure an extended working life.
The ergonomic and sturdy joysticks, which work completely proportionally, expand the functions and possibilities for controlling the excavator. The operator can carry out movements more precisely and work with increased concentration.
The powerful and well-balanced arm and bucket let you dig faster and more efficiently even in the toughest conditions.
YANMAR 3TNV74F engine is engineered for maximum digging and lifting performance. They also deliver minimized noise and vibration, and meet the latest engine emission regulation.
The wide variable track width provides superior stability so you can perform safely with its attachments. And the hydraulic system and powerful boom cylinder deliver the lifting power you need for a wide range of jobs. Combined, you get an advanced hydraulic system that automatically regulates and distributes the optimum amount of oil to each cylinder based on the weight of the load, for smooth, responsive and stable lifting capacity and operation.
For excellent performances across uneven surfaces, the ALS18 has an extendable undercarriage. Retracted, it measures 990 mm, with reduced width offering greater maneuverability and access to confined spaces and through narrow entrances. By extending to 1240 mm, it offers greater frontal stability and lifting capability. And whether extended or retracted, this well-balanced machine offers excellent weight distribution. In addition, the extendable blade makes enlargement maneuvering quick and easy.
With its swing boom, even the tightest spaces become efficient work places. The boom swing realizes direct digging operation close to the house edge without put the machine in motion.
ALS18 has a wide range of powerful working applications for digging, lifting, loading and mulching. Plus, the increased efficiency of our bucket capacity, digging depth and load over height meet or exceed the requirements of today’s construction sites.
Optional configurations also include retractable chassis, boom side sway, folding anti roll frame, four column ceiling, fast charging, photovoltaic charging, remote control device, etc.
Main technical parameter
| 1.8T Mini Excavator ALS18 | |||
| Item | Unit | ALS18 | |
| Main dimensions | A Full Length | mm | 3570 |
| B Transporting Width | mm | 990/1240 | |
| C Overall height of cab | mm | 2250 | |
| D overall width | mm | 990/1240 | |
| E Total width of upper slewing platform | mm | 760/1010 | |
| Working dimensions | F boom height | mm | 2630 |
| G Distance from the center of gyration to the rear of the track | mm | 815 | |
| H Maximum digging height | mm | 3540 | |
| I Maximum dumping height | mm | 2440 | |
| J Maximum digging depth | mm | 2310 | |
| K Maximum Vertical Digging Depth | mm | 1910 | |
| L Maximum digging radius | mm | 3900 | |
| M Minimum turning radius | mm | 1430 | |
| N The minimum turning radius of the tail | mm | 620 | |
| O Maximum ground digging radius | mm | 3840 | |
| P Maximum lift of bulldozing blade | mm | 245 | |
| Q Maximum descending height of bulldozing blade | mm | 200 | |
| Machine performance parameters | Operating weight | Kg | 1860 |
| Bucket capacity | m³ | 0.04 | |
| Maximum travelling speed | Km/h | 3.8 | |
| Swing speed | (rpm) | 9 | |
| Boom swing angle left/right | ° | 65/58 | |
| Gradeability | % ° | 58/30 | |
| Ground pressure | Kpa | 25 | |
| Bucket Digging Force | KN | 15.2 | |
| Hydraulic system pressure | Mpa | 18 | |
| Engine | Brand | Kubota | |
| Model | D902 | ||
| Rated net power | Kw | 11.8 | |
| Rated speed | rpm | 2300 | |
Company Features
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd is a technologically advanced enterprise which mainly produces excavators manufacturer.
· We have a dedicated team. They have deep engineering expertise and experience in product development, test technology, and assembly technology, which helps deliver high-quality products such as excavators manufacturer to our customers.
· We are working hard to build an environmental-friendly business model that respects man and nature. This model is sustainable, which helps lower our carbon footprint.
Product Comparison
Compared with similar products in the market, the excavators manufacturer of AILISHENG Construction Equipment has the following main advantages.
Enterprise Advantages
Our employees are mainly composed of young people with outstanding professional skills and experienced experts. They have the good team spirit and ensure the efficient operation and our rapid development.
Our company values the needs and complaints of consumers. We seek development in demand and solve problems in complaints. Moreover, we continuously take innovation and improvement, and strive to create more and better services for consumers.
Based on the core value of 'innovation, quality, service, sharing', our company strives to manufacture quality products and provide good service. Our goal is to shape a first-class brand image in the industry.
Since the inception in AILISHENG Construction Equipment has been developing in the industry for years. We have accumulated rich experience and have mastered the advanced technology.
AILISHENG Construction Equipment's Electric Construction Equipment,Excavators,Wheel Loaders,Soil Vibratory Compactors,Landfill Compactors,Skid Steer Loaders,Forklift Trucks,Telescopic Forklift,Dozers,Motor Graders,Backhoe Loaders are reasonably-priced and quality-reliable. They enjoy a high market share in the international market.
