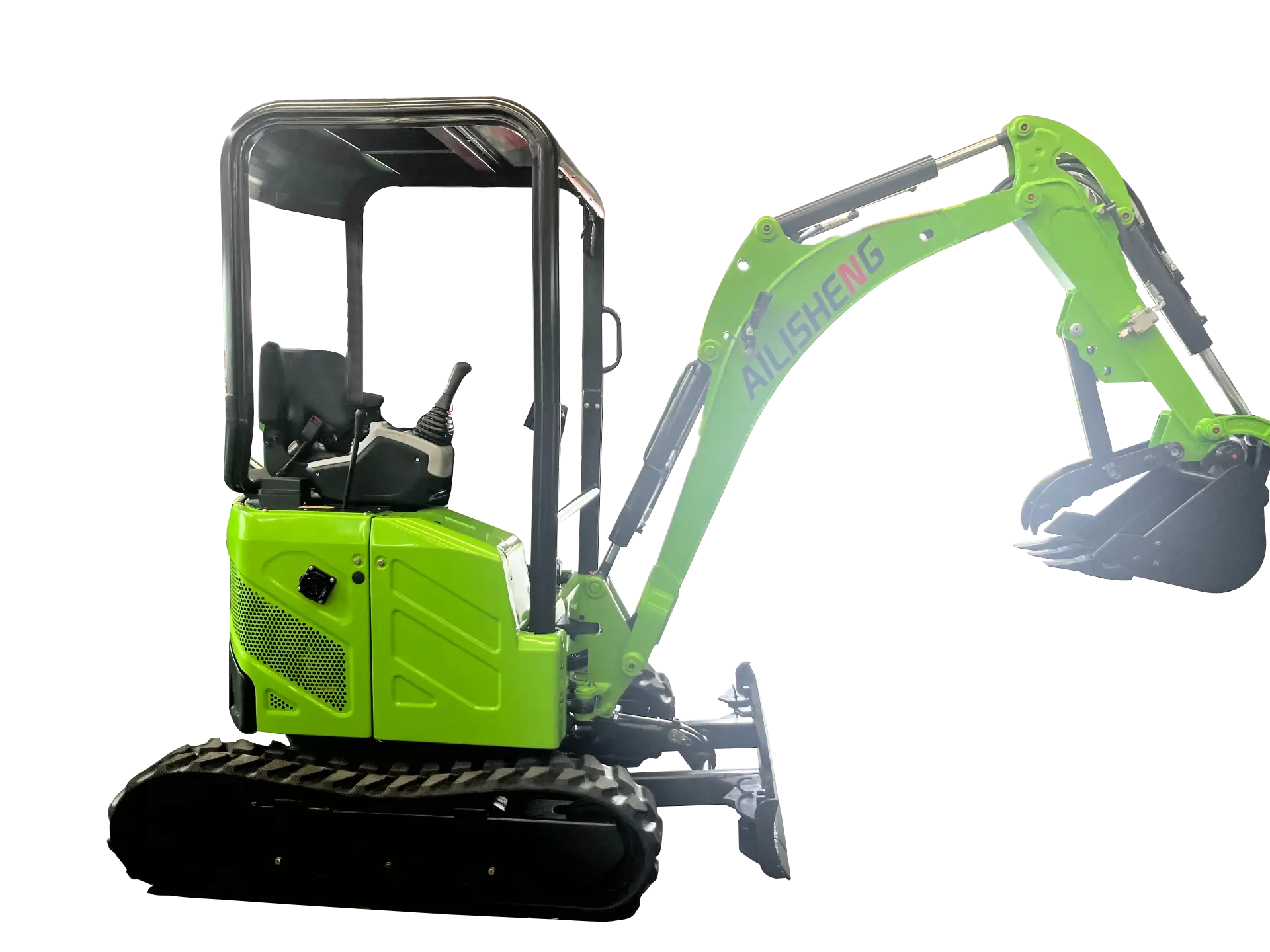

Product details of the electric powered mini excavator
Product Description
The production process of AILISHENG Construction Equipment electric powered mini excavator complies with international green specifications. The design of electric powered mini excavator is compact, so it's easier to carry with. Xiamen Ailisheng Intelligent Equipment Co.,Ltd has achieved a competitive advantage by orientating the market accurately.
Product features
● The ALS18EV series all electric compact mini excavator can expand your work field and time range to a greater extent, showing the working performance no less than that of the same traditional internal combustion engine powered models. Its unique features of environmental friendliness and lower cost, as well as its traditional characteristics such as ultra compactness, durability and versatility, make it an ideal machine for use in places that are sensitive to noise and waste gas and have very narrow and compact workplaces.
● The lithium iron phosphate power battery used in this product does not need maintenance, the power cost is far lower than the fuel cost, which greatly reduces the noise, vibration, pollution-free, high efficiency, high stability and high quality. Standard on-board charging and plug and charge of civil electricity. ALS18EV electric excavator adopts electric professional design chassis, frame, boom and hydraulic system, with excellent performance. It can adapt to a large number of auxiliary working devices, such as bucket, crushing, clamp, drilling, etc., with flexible and convenient switching.
● Optional configurations also include retractable chassis, boom side sway, folding anti roll frame, four column ceiling, fast charging, photovoltaic charging, remote control device, etc.
Main technical parameter
1.8T Electric Mini Excavator 18EV |
|||
Item |
Unit |
ALS18EV |
|
Main dimensions |
A Full Length |
mm |
3570 |
B Transporting Width |
mm |
990/1240 |
|
C Overall height of cab |
mm |
2250 |
|
D overall width |
mm |
990/1240 |
|
E Total width of upper slewing platform |
mm |
760/1010 |
|
Working dimensions |
F boom height |
mm |
2630 |
G Distance from the center of gyration to the rear of the track |
mm |
815 |
|
H Maximum digging height |
mm |
3540 |
|
I Maximum dumping height |
mm |
2440 |
|
J Maximum digging depth |
mm |
2310 |
|
K Maximum Vertical Digging Depth |
mm |
1910 |
|
L Maximum digging radius |
mm |
3900 |
|
M Minimum turning radius |
mm |
1430 |
|
N The minimum turning radius of the tail |
mm |
620 |
|
O Maximum ground digging radius |
mm |
3840 |
|
P Maximum lift of bulldozing blade |
mm |
245 |
|
Q Maximum descending height of bulldozing blade |
mm |
200 |
|
Machine performance parameters |
Operating weight |
Kg |
1860 |
Bucket capacity |
m³ |
0.04 |
|
Maximum travelling speed |
Km/h |
3.8 |
|
Swing speed |
(rpm) |
9 |
|
Boom swing angle left/right |
° |
65/58 |
|
Gradeability |
% ° |
58/30 |
|
Ground pressure |
Kpa |
25 |
|
Bucket Digging Force |
KN |
15.2 |
|
Hydraulic system pressure |
Mpa |
18 |
|
Lithium iron phosphate battery |
Voltage |
V |
80.5 |
Battery capacity |
Kwh |
18.35 |
|
Electric Motor |
Motor Rated/Peak Power AC |
KW |
10/15 |
Rated speed/peak speed |
rpm |
2000/3000 |
|
Charging pile |
Standard charging voltage/current |
V/A |
80V/50A |
Quick Charge Voltage/Current |
V/A |
80V/100A |
