Product features

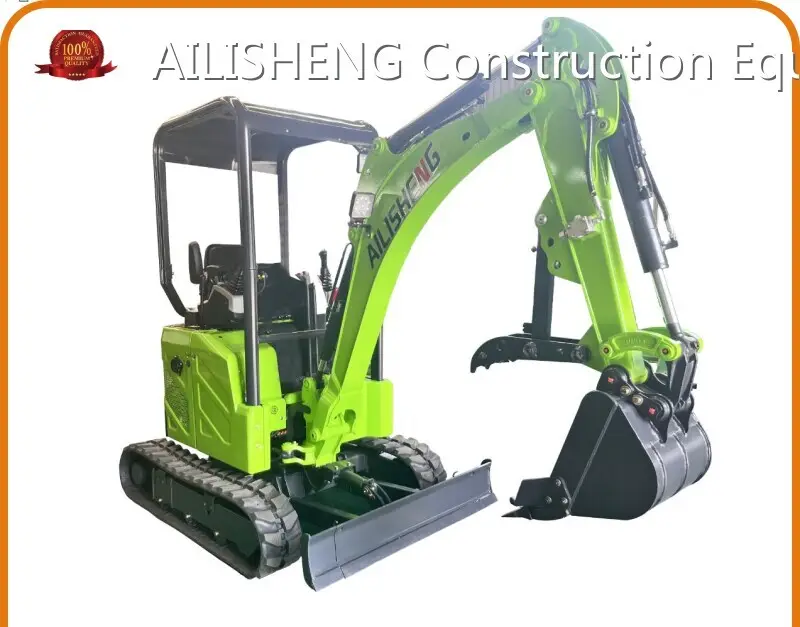

● The ALS20EV series all electric compact mini excavator can expand your work field and time range to a greater extent, showing the working performance no less than that of the same traditional internal combustion engine powered models. Its unique features of environmental friendliness and lower cost, as well as its traditional characteristics such as ultra compactness, durability and versatility, make it an ideal machine for use in places that are sensitive to noise and waste gas and have very narrow and compact workplaces.
● The lithium iron phosphate power battery used in this product does not need maintenance, the power cost is far lower than the fuel cost, which greatly reduces the noise, vibration, pollution-free, high efficiency, high stability and high quality. Standard on-board charging and plug and charge of civil electricity. ALS20EV electric excavator adopts electric professional design chassis, frame, boom and hydraulic system, with excellent performance. It can adapt to a large number of auxiliary working devices, such as bucket, crushing, clamp, drilling, etc., with flexible and convenient switching.
● Optional configurations also include retractable chassis, boom side sway, folding anti roll frame, four column ceiling, fast charging, photovoltaic charging, remote control device, etc.
Main technical parameter
|
|
Item |
ALS20EV |
|
1 |
Operating weight |
2065Kg |
|
2 |
Motor |
Permanent magnet synchronous motor |
|
3 |
Rated power |
15KW |
|
4 |
Motor Peak Power |
25KW |
|
5 |
Motor Rated Power |
65N·m |
|
6 |
Max. speed |
3000r/min |
|
7 |
Battery type |
Lithium iron phosphate battery |
|
8 |
Voltage(Standard) |
288V |
|
9 |
Battery capacity |
25.9KWh |
|
10 |
Bucket capacity |
0.04m3 |
|
11 |
Travel speed(H/L) |
3.2/2.3(Km/h) |
|
12 |
Swing speed |
10r/min |
|
13 |
Gradeability |
50.6% |
|
14 |
Ground pressure |
0.028MPa |
|
15 |
Bucket Digging Force |
15.2KN |
|
16 |
Arm Digging Force |
9.2KN |
|
17 |
Main pump flow |
30mL/r |
|
18 |
Max. Hydraulic system flow |
90L/min |
|
19 |
Hydraulic system pressure |
24.5Mpa |
Company Advantages
· Standard manufacturing: the production of AILISHENG Construction Equipment electric mini digger is based on the advanced technology developed by ourselves autonomously and the complete management system and standards.
· The product is superior in performance, durability, and usability.
· The product has gained much attention from customers owing to the great economic benefits it can bring.
Company Features
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd has grown into a trustworthy manufacturer of electric mini digger with years of development. We have a heritage of excellence for years.
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd focuses on technical innovation.
· AILISHENG Construction Equipment is ambitious to be the most dominant electric mini digger supplier. Get info!
Application of the Product
The electric mini digger produced by our company is suitable for various occasions in industry.
With professional service spirit, AILISHENG Construction Equipment always provides customers with reasonable and efficient one-stop solutions.
