Electric Construction Equipment - - AILISHENG Construction Equipment
Company Advantages
· Skillfully designed, AILISHENG Construction Equipment electric construction equipment comes with a variety of styles.
· The product is under a strict and complete quality control system.
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd has passed ISO9001 quality certification and established a perfect quality assurance system and after-sales service system.
Excellent Performance

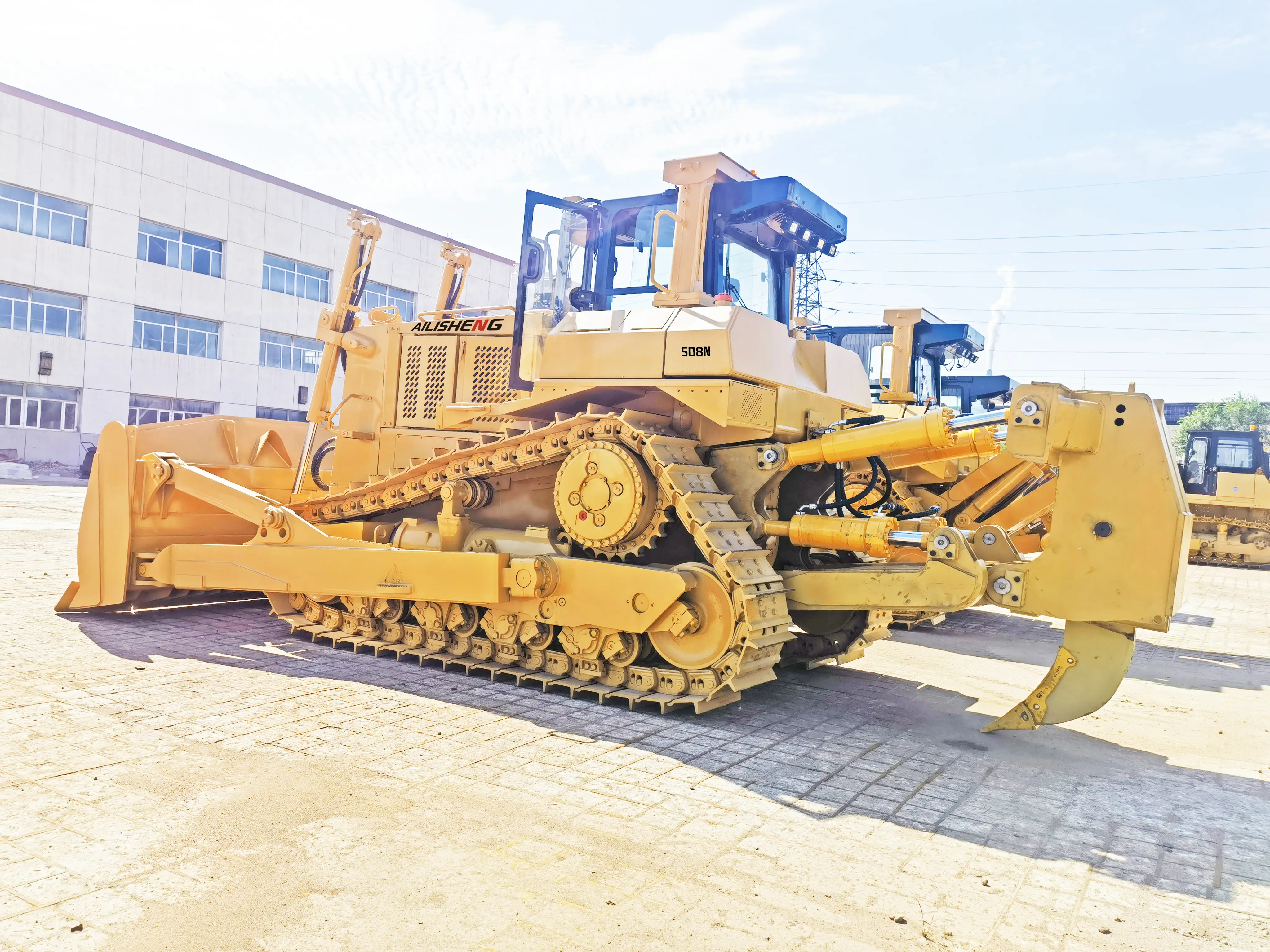

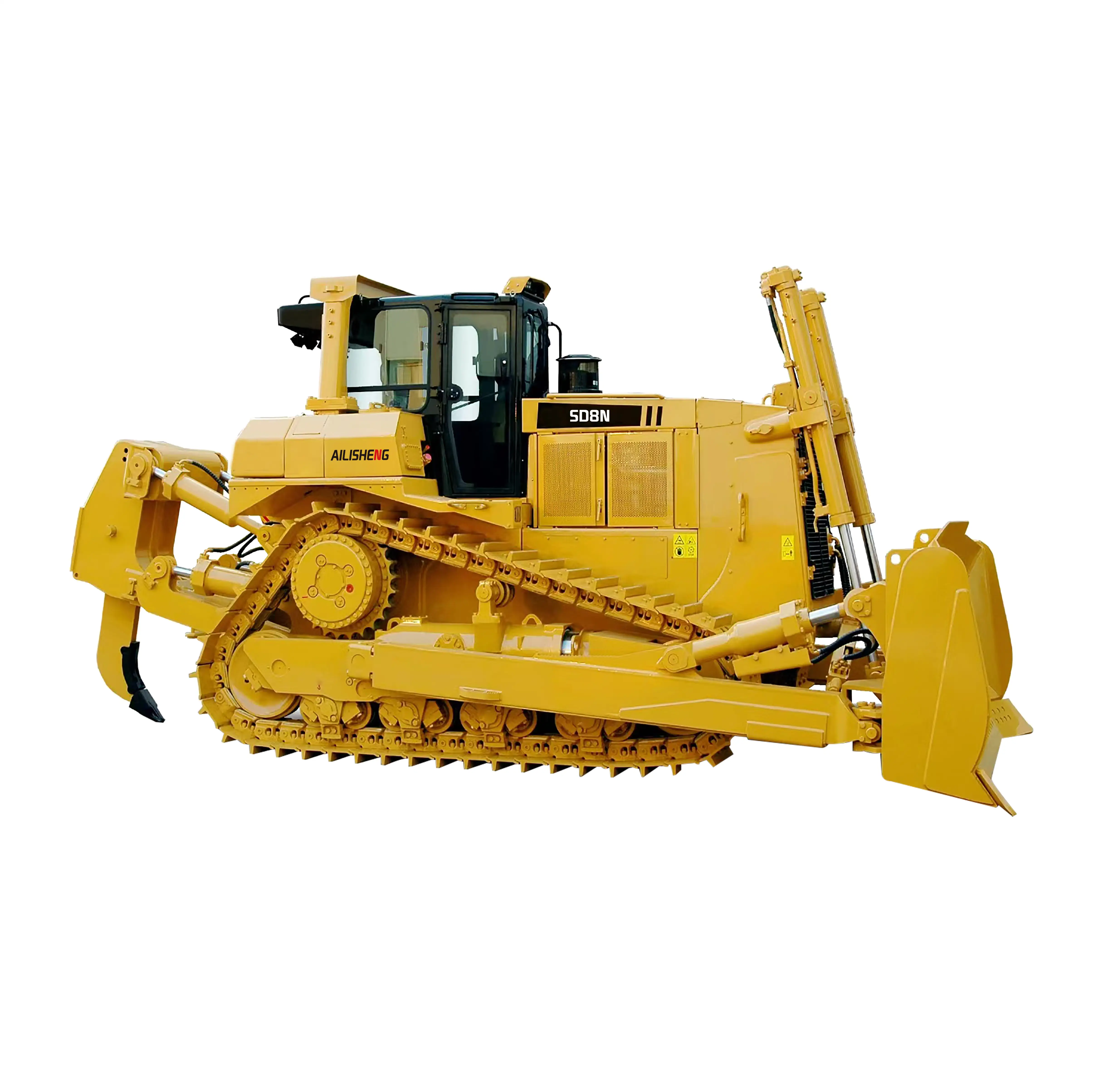

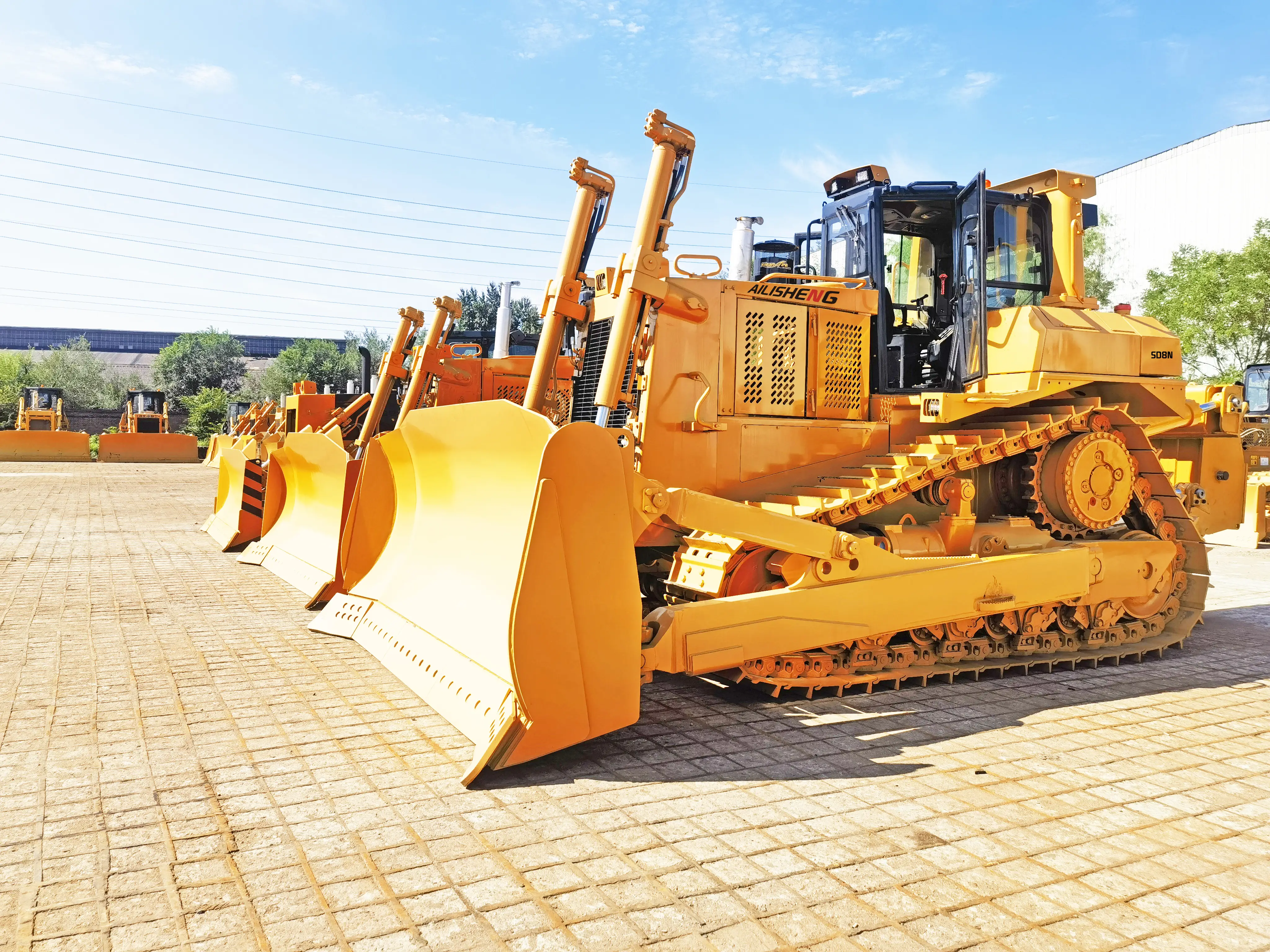

SD8N bulldozer is a track-type dozer with an elevated sprocket, hydraulic direct drive, semi-rigid suspended, and hydraulic controls. It has a power-separating hydraulic-mechanic type Torque converter, planetary, power shift, and one lever control transmission.
SD8N bulldozer equipped with an integrated hydraulic system and electric monitoring, SD8N bulldozer can be equipped with many optional equipment and attachments, and it can be used in road building, hydro-electric construction, land clearance, port and mine development, and other construction field.
Main technical parameter
|
Description |
Unit |
SD8N |
|
|
Dozer Type |
|
Tilt |
|
|
Operation weight (including ripper) |
Kg |
36800 |
|
|
Ground pressure (including ripper) |
KPa |
93 |
|
|
Track gauge |
mm |
2083 |
|
|
Gradient |
|
30°/25° |
|
|
Min. ground clearance |
mm |
556 |
|
|
Dozing capacity |
m³ |
11.24 | |
|
Blade width |
mm |
3940 |
|
|
Max. digging depth |
mm |
582 |
|
|
Overall dimensions (including ripper) |
mm |
7751 x 3940 x3549 |
|
|
Engine |
|
|
|
|
Type |
|
Cummins NT855-C360S10 |
|
|
Rated revolution |
rpm |
2100 |
|
|
Flywheel power |
KW/HP |
235/320 |
|
|
Torque storage coefficient |
|
20% |
|
|
Undercarriage system |
|
|
|
|
Type |
|
The track is triangle shape. The sprocket is elevated elastic suspended. |
|
|
Number of track rollers (each side) |
|
8 |
|
|
Pitch |
mm |
216 |
|
|
Width of shoe |
mm |
560 |
|
|
Implement hydraulic system |
|
|
|
|
Max. system pressure |
MPa |
20 |
|
|
Pump type |
|
Gears oil pump |
|
|
System output |
L/min |
220 |
|
|
Gear 1st 2nd 3rd |
|
Forward (Km/h) 0-3.5 0-6.2 0-10.8 |
|
Backward (Km/h) 0-4.7 0-8.1 0-13.9 |
Driving system
Torque converter Torque converter is power separating hydraulic-mechanic type
Transmission Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted.
Steering clutch. The steering clutch is hydraulic pressed, usually separated clutch.
Braking clutch The braking clutch is pressed by spring, separated hydraulic, meshed type.
Final drive The final drive is two-stage planetary reduction gear mechanism, splash lubrication.
Company Features
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd is a electric construction equipment supplier with extensive industry experience.
· We are blessed to have a pool of R&D talents. Their professionalism in providing product solutions and strict attitude on product quality have all helped us better take care of clients' demands. The company has built up a professional production management team. They are experienced in finding out the most cost-effective manufacturing ways. This sets a solid foundation for us to create the most value for money services for clients.
· Doing well is the common pursuit and ideal of AILISHENG Construction Equipment. Inquire online!
Product Details
In order to know electric construction equipment better, AILISHENG Construction Equipment will show you the specific details in the following section.
