Electric Construction Equipment - - AILISHENG Construction Equipment-1
Product features

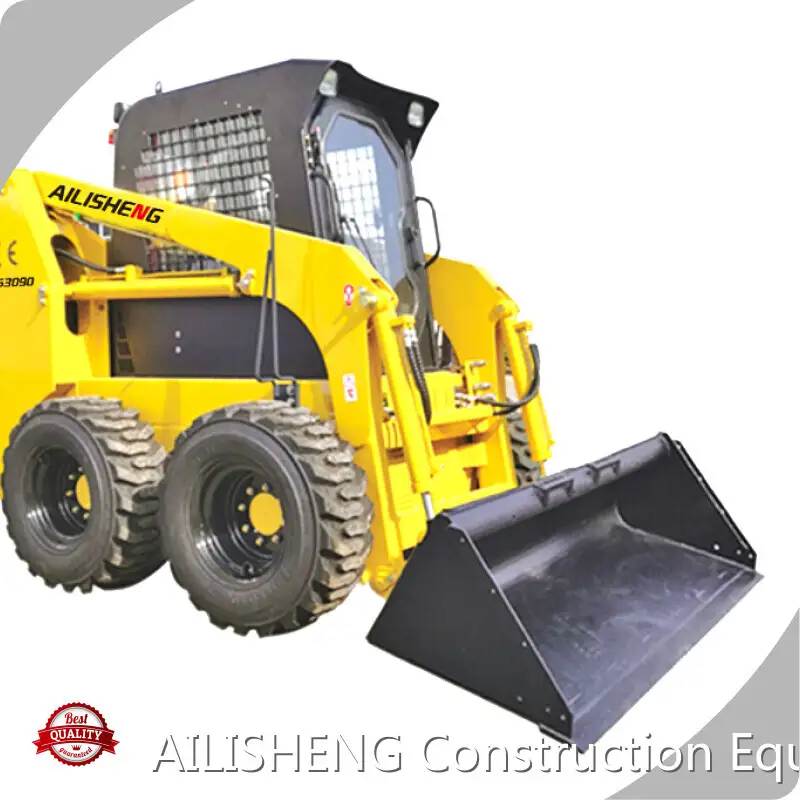

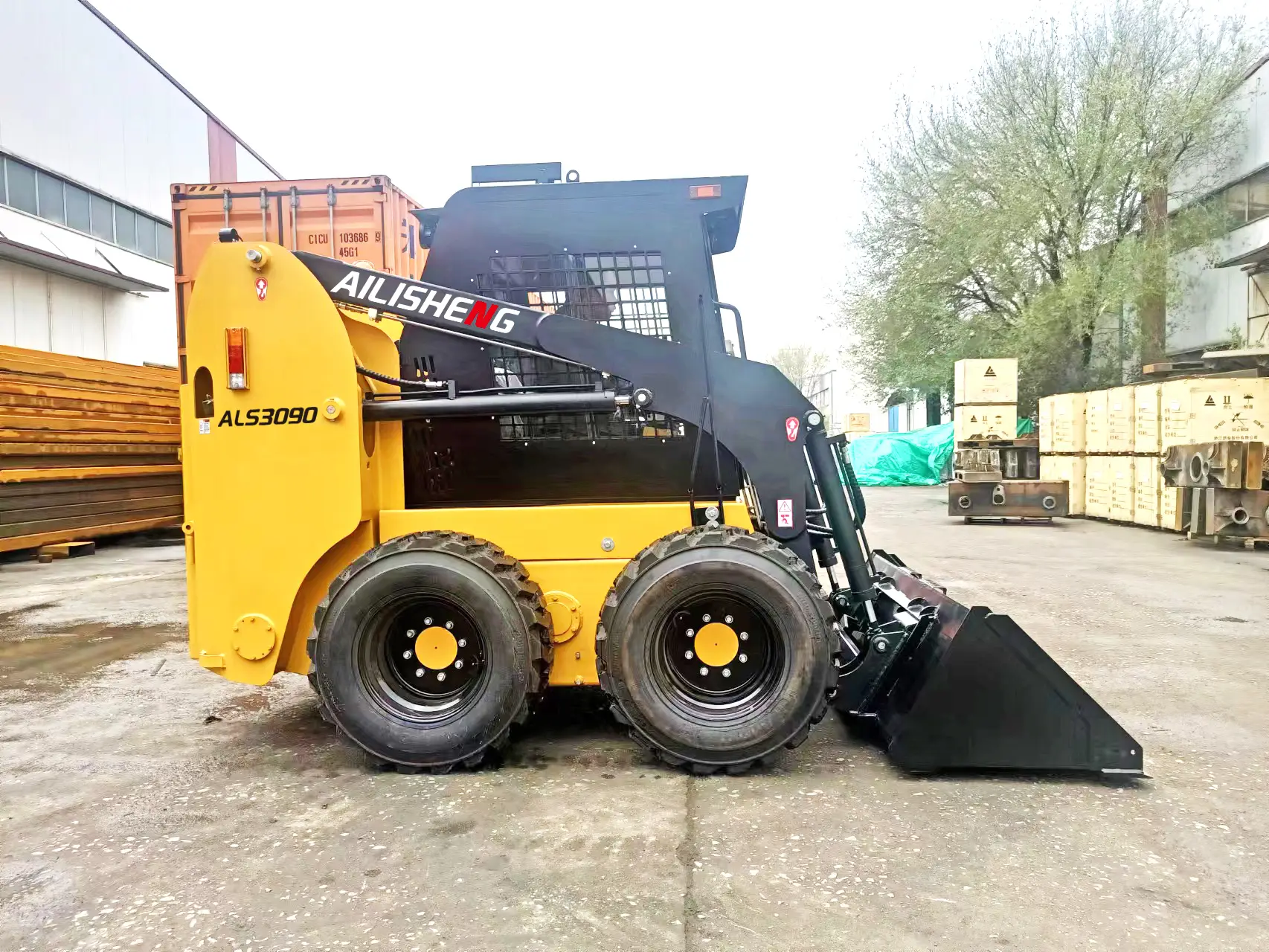

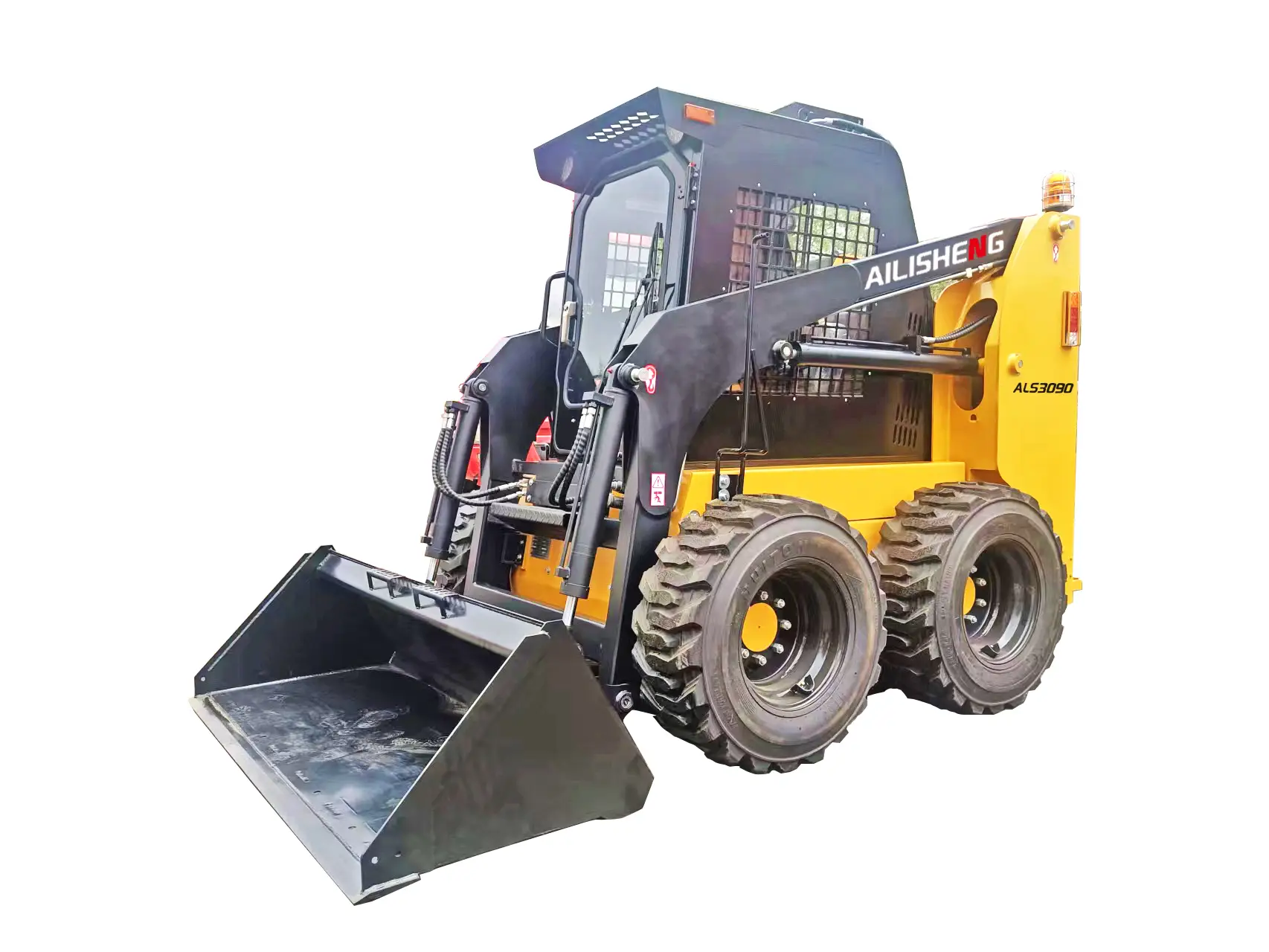

- Delivering unmatched performance, versatility, and ease of operation, the Ailisheng Skid Steer Loader is ideal for small confined areas, such as constructions sites, factory facilities, workshops, warehouses, docks, decks, ship cabins as well as other key sectors.
- Skid steer loader can attach various attachments to perform shoveling, stacking, lifting, digging, boring, breaking,grabbing, pushing, scarification, trenching, compacting, road cleaning, and many other operations which are provided to increase your flexibility, enabling you to handle many jobs with just the one machine.
- Using of simulation technology to learn the mission data at travelling and working conditions helped optimizing power and fuel efficiency.
-Compact structure, maneuverable movement suitable for narrow Space operation.
-Open cabin with mechanical control system.
-Double accelerograph control.
-Hydraulic brake.
Main Parameters
|
|
ALS3090 |
|
Engine Brand |
Xinchai |
|
Engine model |
498 |
|
Bore x stroke (mm) |
96X105 |
|
Rated power (Kw) |
45 |
|
Rated speed(rpm) |
2500 |
|
Number of cylinders |
4 |
|
Max. torque (N.m) |
193 |
|
Displacement (L) |
3.168 |
|
Max. Speed (km/h) |
12 |
|
Tire (track) model |
12-16.5 |
|
Loading Capacity (kg) |
850 |
|
Lifting Type |
Arc-Shaped Lifting |
|
Bucket capacity(m3) |
0.5 |
|
Rated flow(L/min) |
75 |
|
tank capacity(L) |
60 |
|
Weight with bucket(kg) |
3150 |
|
Dimension |
|
|
Height at Maximum Extension(mm) |
3690 |
|
Hinge Pin Height (mm) |
2920 |
|
Total Height (mm) |
2080 |
|
Height to bottom of bucket(mm) |
2783 |
|
Overall length without bucket ( mm ) |
2640 |
|
overall length with bucket(mm) |
3440 |
|
Dumping angle at maximum height(° ) |
40 |
|
Dumping height(mm) |
2250 |
|
Dumping reach(mm) |
710 |
|
Rollback at ground position(° ) |
30 |
|
Rollback fully raised at max. height(° ) |
104 |
|
Wheelbase(mm) |
991 |
|
Ground clearance(mm) |
205 |
|
Angle of departure(°) |
20 |
|
Front turning radius without bucket(mm) |
1198 |
|
Front turning radius(mm) |
1958 |
|
Rear tuning radius(mm) |
1728 |
|
Rear length (mm) |
1208 |
|
Track width(mm) |
1500 |
|
Width (mm) |
1880 |
|
Bucket width (mm) |
1880 |
|
The structure and parameters are subject to change without prior notice due to technical progress. If the sample product is different from the actual product in some way, the actual product shall prevail. |
|
Company Advantages
· AILISHENG Construction Equipment electric construction equipment is made of high quality materials sourced by professionals with rich experience and the deep knowledge of the related materials.
· We adhere to strict quality industry standards and fully guarantee that our products meet international standards.
· That AILISHENG Construction Equipment concentrates on the service quality turns out to be effective.
Company Features
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd ranks among the top leaders in the domain of developing and manufacturing electric construction equipment. We have recognized manufacturing strength.
· Our manufacturing plant employs advanced and modern production facilities that are designed to improve production efficiency. It allows us to achieve fast delivery and quick reach to our customers around the world.
· We believe the best way to success is to give our customers such outstanding performance in all areas, including Pricing, Quality, On-Time Deliveries, and Customer Service. Inquire online!
Application of the Product
The electric construction equipment produced by AILISHENG Construction Equipment can be used in many fields.
Since the establishment, AILISHENG Construction Equipment has always been focusing on the R&D and production of Electric Construction Equipment,Excavators,Wheel Loaders,Soil Vibratory Compactors,Landfill Compactors,Skid Steer Loaders,Forklift Trucks,Telescopic Forklift,Dozers,Motor Graders,Backhoe Loaders. With great production capability, we can provide customers with personalized solutions according to their needs.
