Product details of the small dozer
Product Information
The whole production of AILISHENG Construction Equipment small dozer is finished by our professional craftsmen We specialize in researching and developing new technologies to bring the quality and performance of our products to the forefront of the industry. Prompt delivery is such characteristics of Xiamen Ailisheng Intelligent Equipment Co.,Ltd.
Excellent Performance

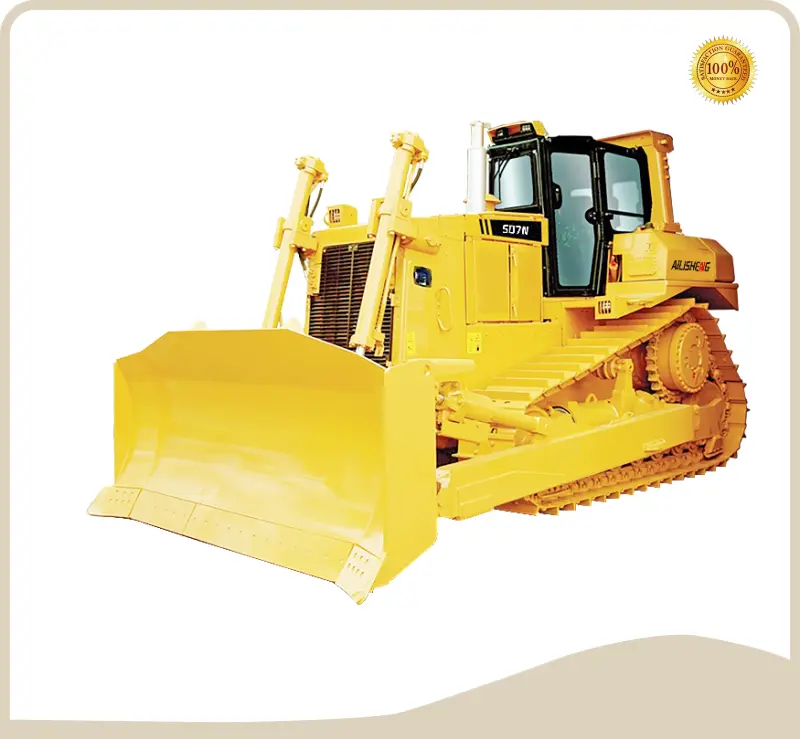

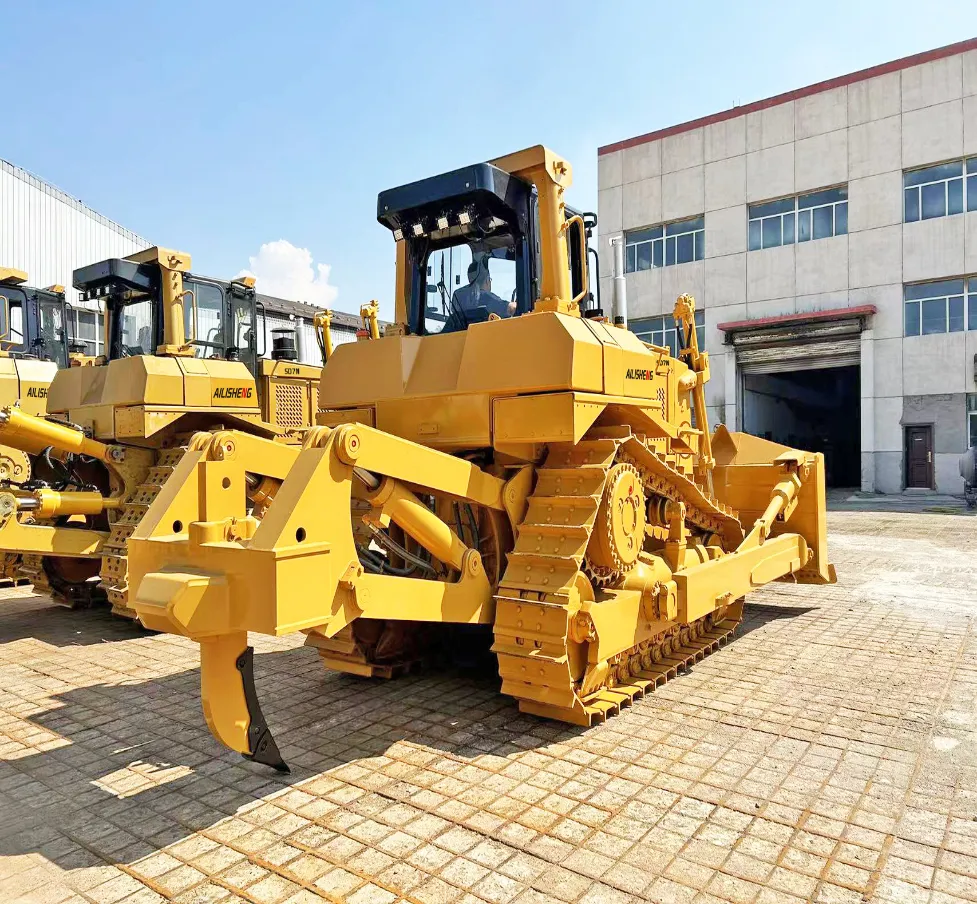

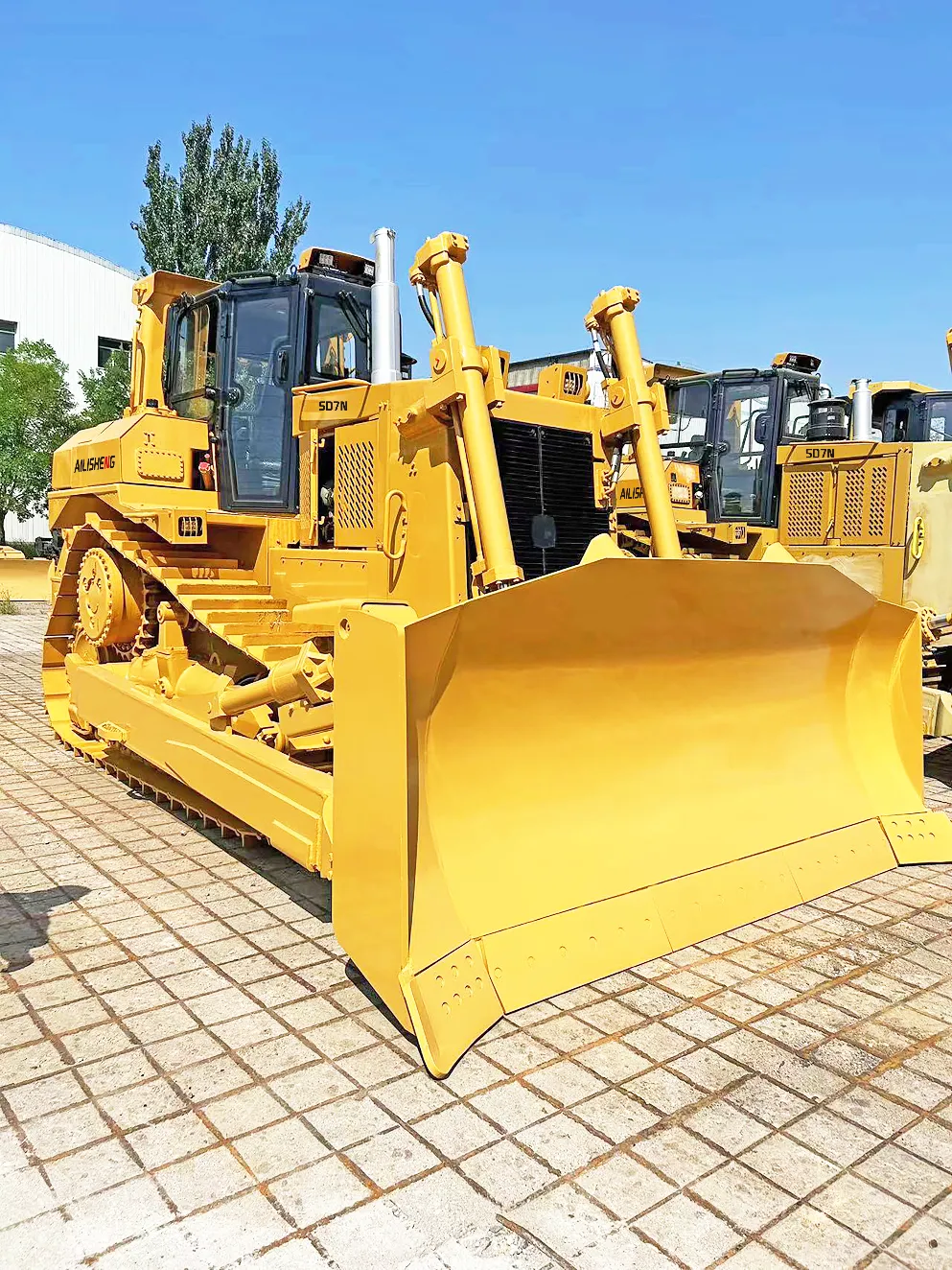

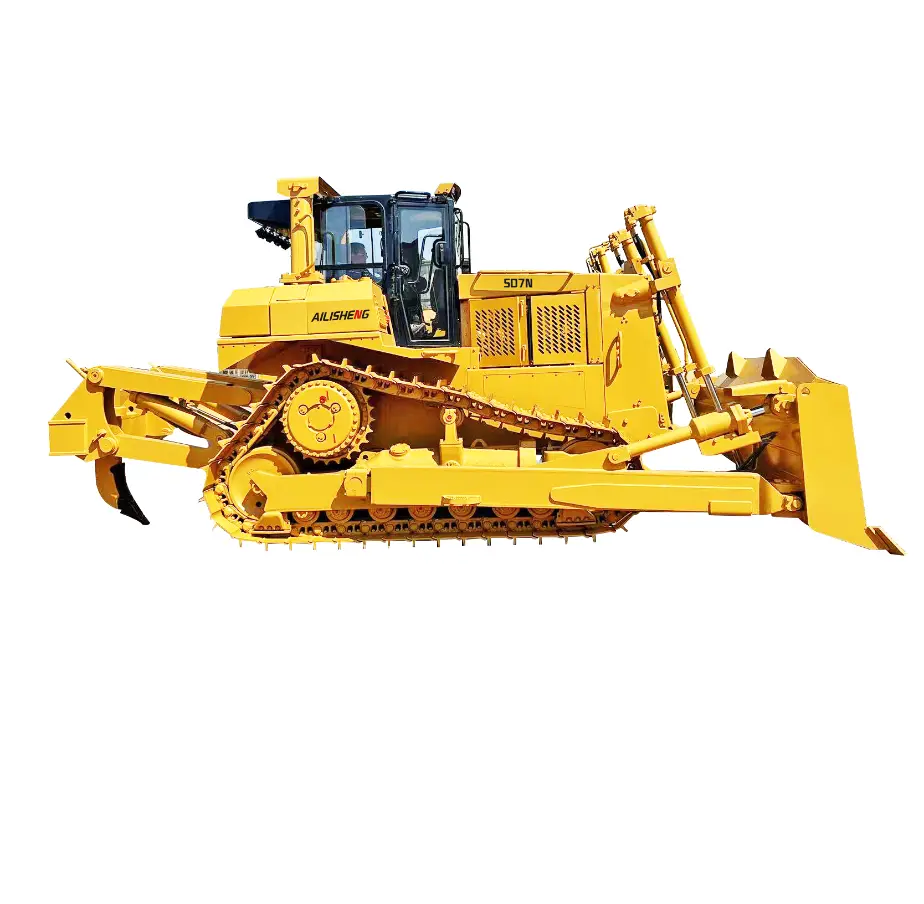

SD7N bulldozer is 230 horsepower track-type dozer with elevated sprocket, power shift drive, semi-rigid suspended and hydraulic controls.
SD7-230 horsepower, elevated sprocket bulldozer integrate with modular design is easy to repair & maintenance, It relieves oil with difference pressure, the hydraulic system performs protecting environment and save energy with high working efficiency. Safety comfortable operation condition, electric monitoring and ROPS cabin with reliable entire quality, excellent service is your wise choosing.
It can be equipped with straight tilting blade, angle blade, coal pushing blade, U shape blade; single shank ripper, three shanks ripper; ROPS, FOPS, forest defence cabin etc.. It is can ideal machine used in communication, oil field, power, mining etc. large earth moving program.
Main technical parameter
Description |
Unit |
SD7N |
|
Dozer Type |
|
Tilt |
|
Operation weight (not including ripper) |
Kg |
23800 |
|
Operation weight (With three-shanks ripper) |
Kg |
27800 |
|
Ground pressure |
KPa |
71.9 |
|
Track gauge |
mm |
1980 |
|
Gradient |
|
30°/25° |
|
Min. ground clearance |
mm |
404 |
|
Dozing capacity |
m³ |
8.4 | |
Blade width |
mm |
3500 |
|
Max. digging depth |
mm |
498 |
|
Overall dimensions |
mm |
5677x3500x3402 |
|
Overall dimensions (including ripper) |
mm |
7616x3500x3402 |
|
Engine |
|
|
|
Type |
|
Cummins NT855-C280s10 |
|
Rated revolution |
rpm |
2100 |
|
Flywheel power |
KW/HP |
169/230 |
|
Max. torque |
N.m/rpm |
1097/1500 |
|
Rated fuel consumption |
g/KW.h |
≤235 |
|
Undercarriage system |
|
|
|
Type |
|
The track is triangle shape. The sprocket is elevated elastic suspended. |
|
Number of track rollers (each side) |
|
7 |
|
Pitch |
mm |
216 |
|
Width of shoe |
mm |
560 |
|
Implement hydraulic system |
|
|
|
Max. system pressure |
MPa |
18.6 |
|
Pump type |
|
High pressure gears pump |
|
System output |
L/min |
194 |
Gear 1st 2nd 3rd |
Forward (Km/h) 0-3.9 0-6.5 0-10.9 |
Backward (Km/h) 0-4.8 0-8.2 0-13.2 |
Driving system
Torque converter Torque converter is power separating hydraulic-mechanic type
Transmission Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted.
Steering clutch. The steering clutch is hydraulic pressed, usually separated clutch.
Braking clutch The braking clutch is pressed by spring, separated hydraulic, meshed type.
Final drive The final drive is two-stage planetary reduction gear mechanism, splash lubrication.
Company Advantage
• AILISHENG Construction Equipment was incorporated in After years of painstaking effort, our overall strength and brand influence have been greatly improved. It promotes us to become one of the outstanding enterprises in the country.
• The sales network of our products is spread all over the world.
• AILISHENG Construction Equipment is located in a place with traffic convenience, which is conducive for both small and large purchase.
• Our company attaches great importance to the introduction and cultivation of talents. Therefore, we create a high-level talent team with great education background and professional skills.
• Our company has received popular recognition from customers with sincere service attitude, pragmatic serving style and innovative service methods. Therefore, we have a good reputation in the industry.
Welcome all customers to come for cooperation.
