Product details of the dozer for sale
Quick Detail
The production process of AILISHENG Construction Equipment dozer for sale is strictly controlled according to the requirement of lean production. The quality of this product has met the requirements of international standards. With the increasing popularity worldwide, the product is bound to have a wider commercial application in the future.
Product Introduction
The dozer for sale produced by AILISHENG Construction Equipment stands out in many similar products. And the specific advantages are as follows.
Scope of Application:

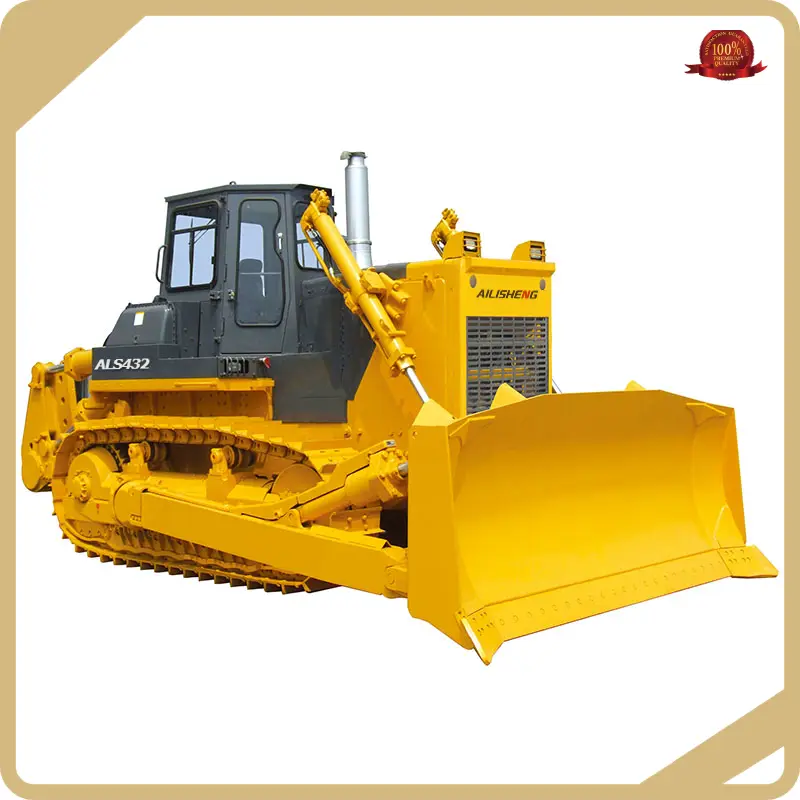

ALS432 crawler bulldozer, carries out standardized mass production of high-power bulldozer. The whole machine adopts advanced hydraulic transmission, hydraulic control technology, advanced and reasonable structure, light and flexible operation, quality and reliable.
Main Features
•A CUMMINS NTA855-C360S10 engine which can gives you more power and reliability you need.
•The highly reliable power shift transmission, stable torque converter and the two-stage straight-tooth structure final drive transmit power efficiently.
•With independent engine cooling water tank, chassis oil cooler, water and air intercooler provides excellent cooling performance and simple maintenance operation to ensure continuous operation of the machine.
•The main frame of the full box structure adopts steel plate welded full box type integral structure, which is welded with the rear axle box. It has high impact load bearing capacity and resistance to bending and twisting. High quality weld seam ensures the main frame has a full life cycle.
•The final drive is driven low and provides more powerful driving force and efficient gradeability. The crawler-type walking chassis has reached the international advanced level and is suitable for various complicated working conditions, with high reliability and carrying capacity.
•The standard straight tilt blade features powerful cutting force and the three-shank ripper can be equipped for the ripping of clay and frozen earth, featuring high working efficiency and super-strong penetrating force
Main Specifications
| Model | ALS432 |
| Type | Standard Hydraulic Crawler Type |
| Engine Model | CUMMINS NTA855-C360S10 |
| （L）Displacement | 14.01 |
| （kw/rpm）Rated power | 257/2000 |
| （N.m/rpm）Max.torque | 1440@1400 |
| Operating weight | 37.2 Ton |
| (mm) Dimension(no ripper) | 6535×4150×3515 |
| (mm) Grounding length | 3150 |
| (MPa) Ground pressure | 0.105 |
| （mm） Track gauge | 2140 |
| (m³) Dozing capacity | 10 |
| （mm） Blade width | 4150 |
| （mm） Blade height | 1610 |
| （mm） Max drop below ground | 560 |
| （mm） Track shoe width | 560 |
| （mm） Pitch | 228.6 |
| Quantity of track link | 41 |
| Quantity of Carrier rollers | 4 |
| Quantity of Track rollers | 14 |
| （MPa） Max pressure | 14 |
| L/min Discharge | 355 |
| （KN） Max tractor force | 280 |
| (Km/h) Forward Speed | F1:0-3.6 |
| F2:0-6.6 | |
| F3:0-11.5 | |
| (Km/h) Rear Speed | R1:0-4.4 |
| R2:0-7.8 | |
| R3:0-13.5 |
