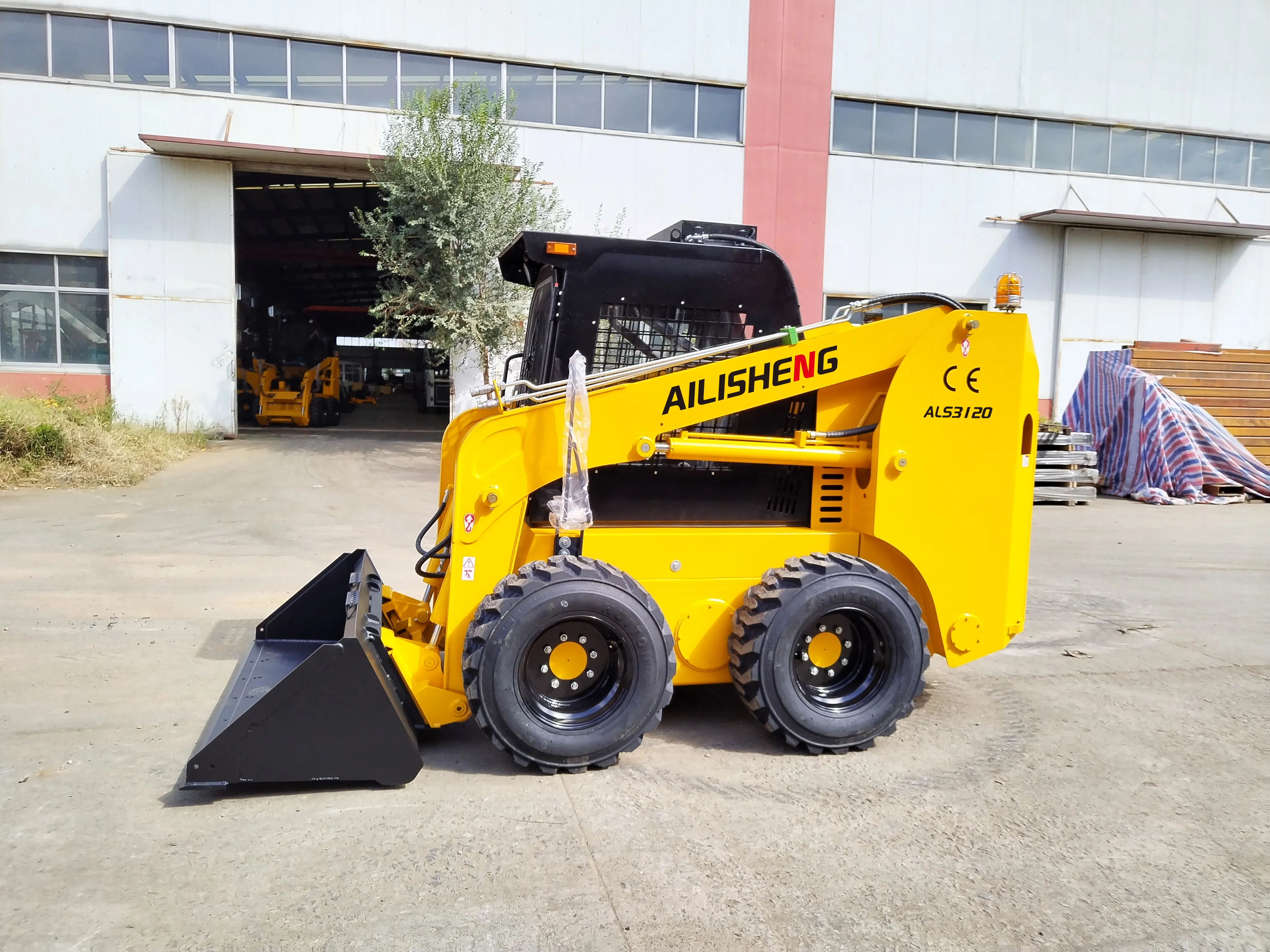

Buy Skid Steer Loader - - AILISHENG Construction Equipment 1

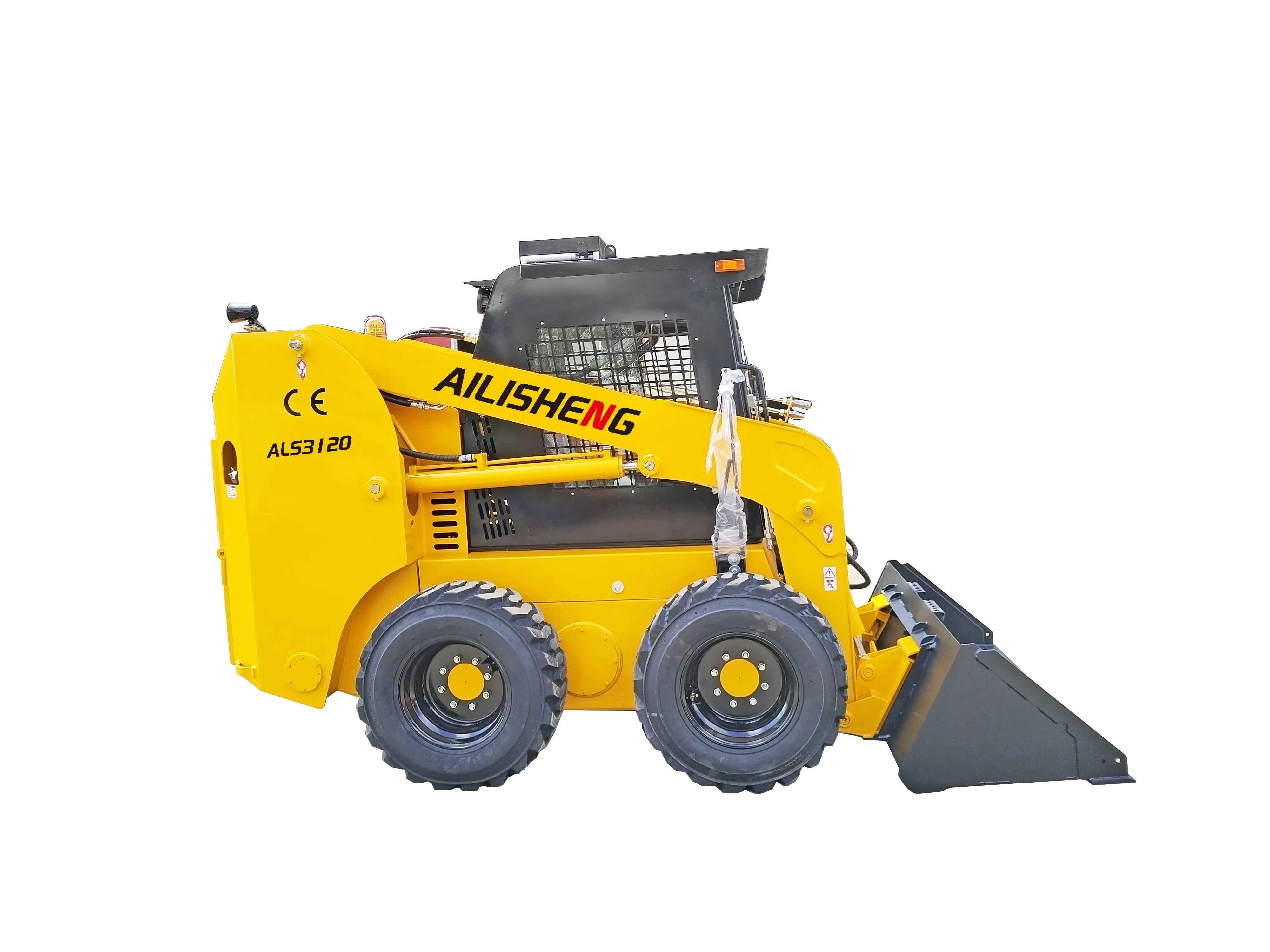

Buy Skid Steer Loader - - AILISHENG Construction Equipment 2

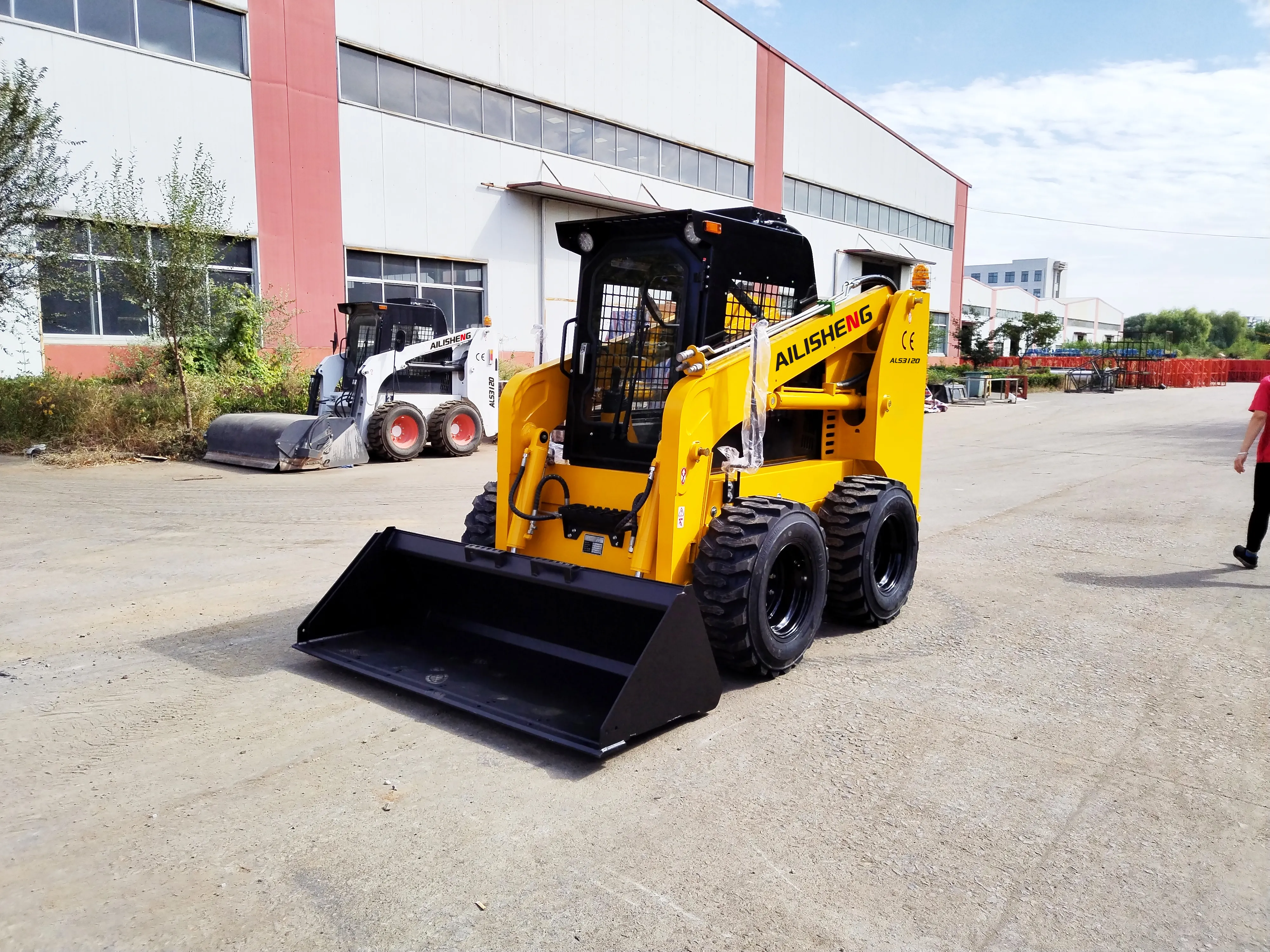

Buy Skid Steer Loader - - AILISHENG Construction Equipment 3

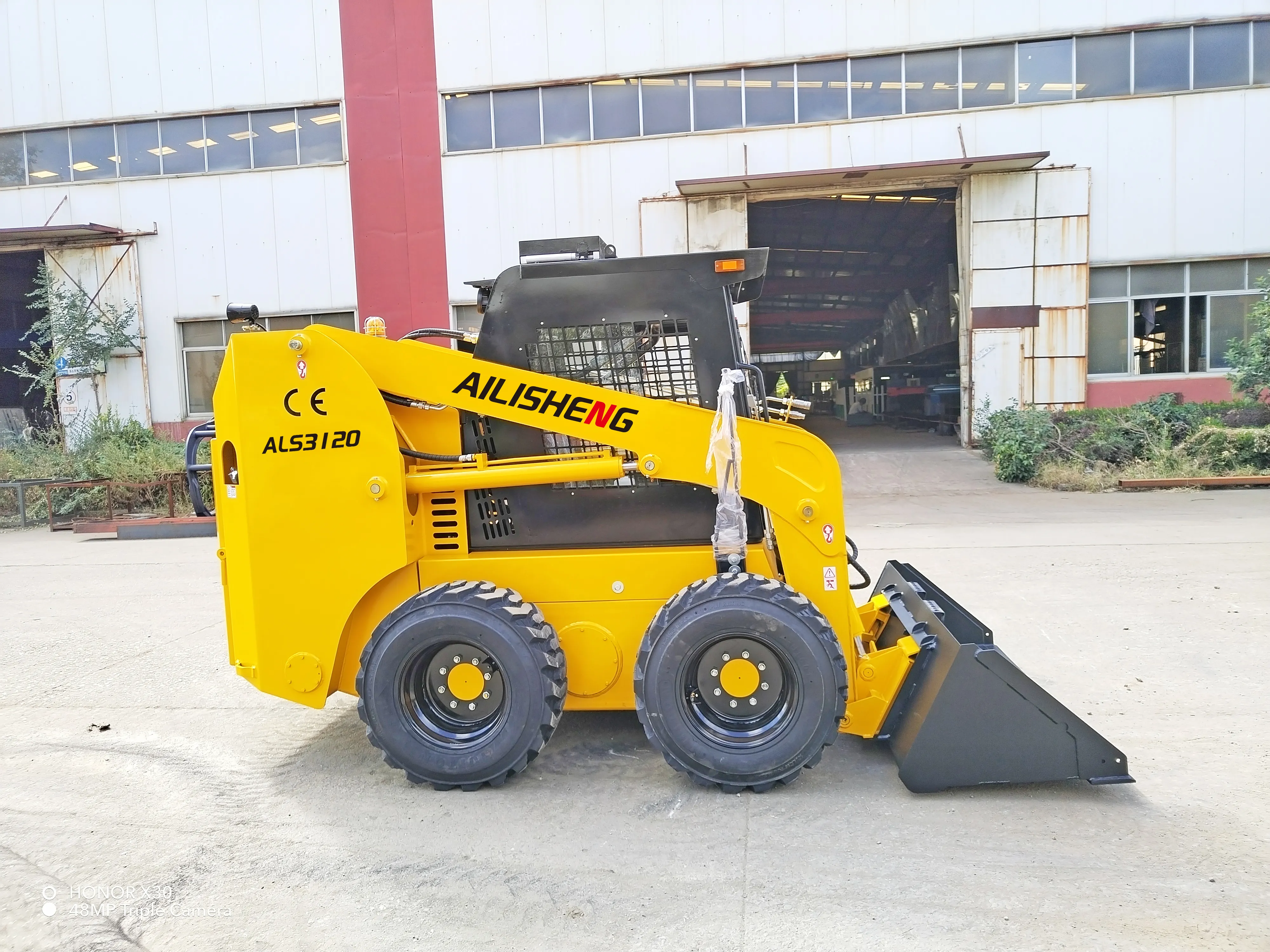

Buy Skid Steer Loader - - AILISHENG Construction Equipment 4

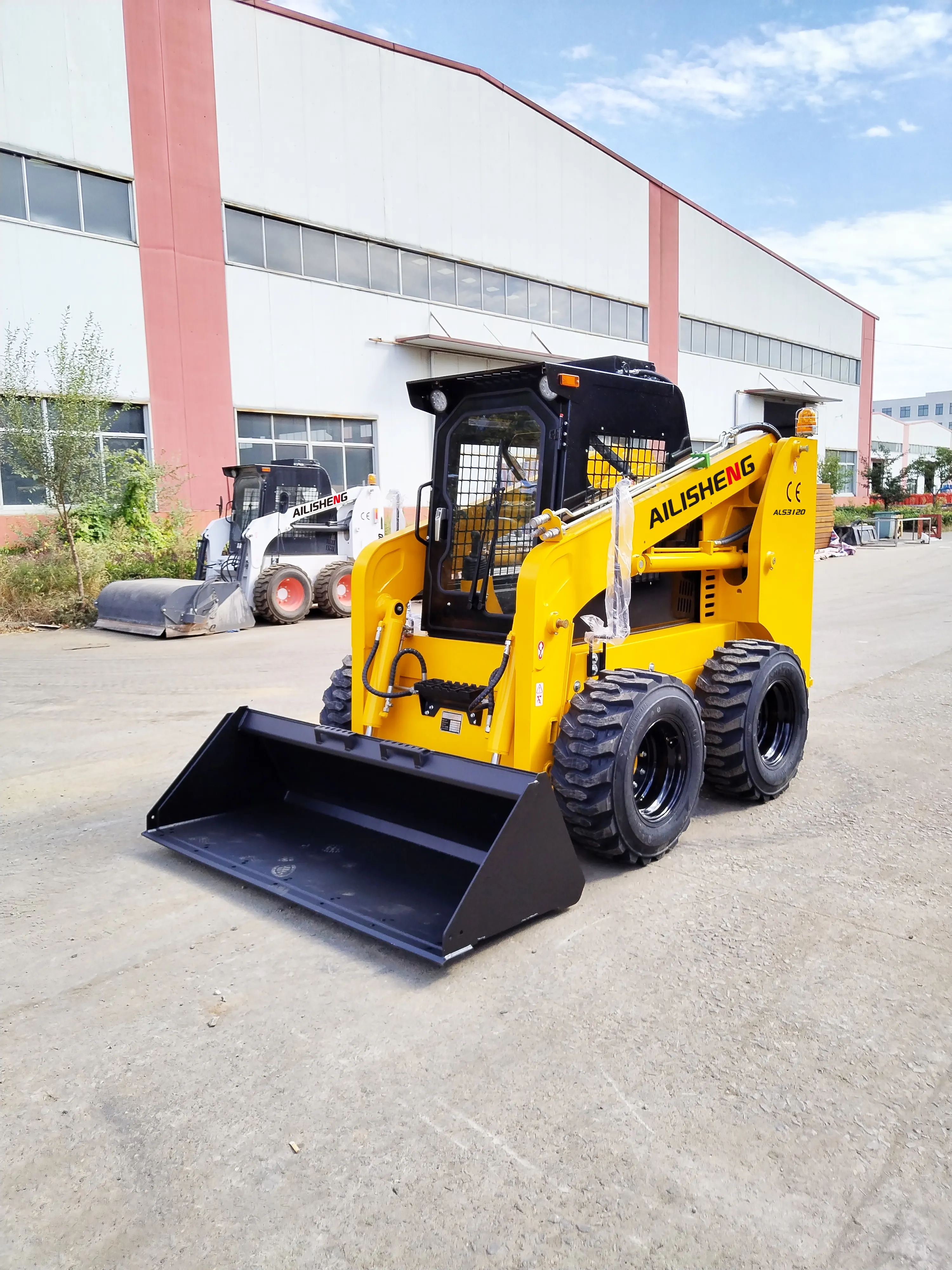

Buy Skid Steer Loader - - AILISHENG Construction Equipment 5

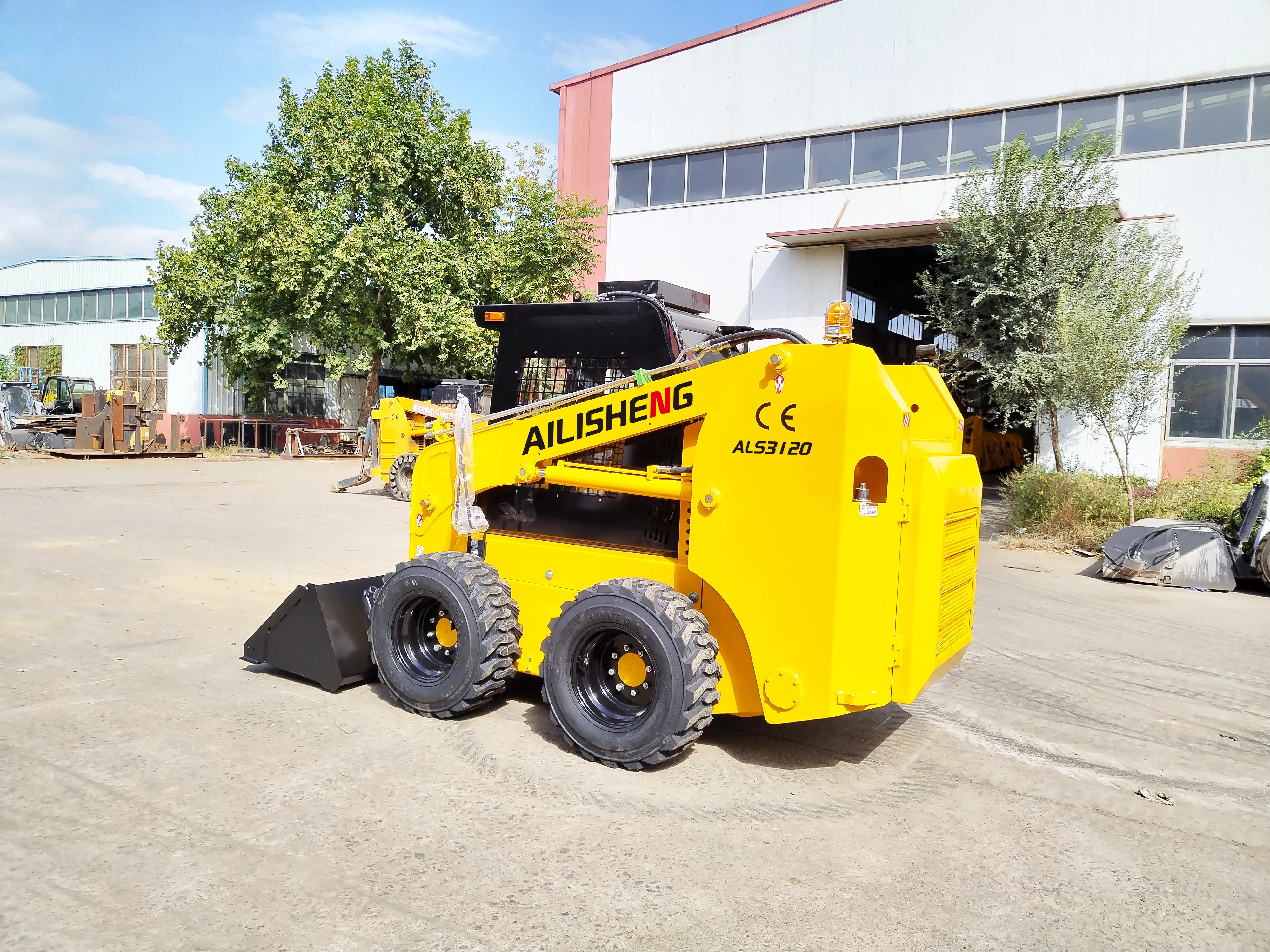

Buy Skid Steer Loader - - AILISHENG Construction Equipment 6
Buy Skid Steer Loader - - AILISHENG Construction Equipment 1
Buy Skid Steer Loader - - AILISHENG Construction Equipment 2
Buy Skid Steer Loader - - AILISHENG Construction Equipment 3
Buy Skid Steer Loader - - AILISHENG Construction Equipment 4
Buy Skid Steer Loader - - AILISHENG Construction Equipment 5
Buy Skid Steer Loader - - AILISHENG Construction Equipment 6

Buy Skid Steer Loader - - AILISHENG Construction Equipment

Inquiry
Send your inquiry

Product details of the buy skid steer loader


Product Information

AILISHENG Construction Equipment buy skid steer loader is made using premium materials and comes in different design styles. buy skid steer loader is applied with high quality materials in high grade. Our buy skid steer loader has passed related qualification.

Buy Skid Steer Loader - - AILISHENG Construction Equipment 7

Product features

- Delivering unmatched performance, versatility, and ease of operation, the Ailisheng Skid Steer Loader is ideal for small confined areas, such as constructions sites, factory facilities, workshops, warehouses, docks, decks, ship cabins as well as other key sectors.

- Skid steer loader can attach various attachments to perform shoveling, stacking, lifting, digging, boring, breaking,grabbing, pushing, scarification, trenching, compacting, road cleaning, and many other operations which are provided to increase your flexibility, enabling you to handle many jobs with just the one machine.

- Using of simulation technology to learn the mission data at travelling and working conditions helped optimizing power and fuel efficiency.

-Compact structure, maneuverable movement suitable for narrow Space operation.

-Open cabin with mechanical control system.

-Double accelerograph control.

-Hydraulic brake.

Main Parameters



ALS3120

Engine Brand

Weichai WP4.1

Engine model

WP4.1

Bore x stroke (mm)

98X105

Rated power (Kw)

55

Rated speed(rpm)

2450

Number of cylinders

4

Max. torque (N.m)

245

Displacement (L)

3.168

Max. Speed (km/h)

12(8/16)

Tire (track) model

12-16.5

Loading Capacity (kg)

1050

Lifting Type

Arc-Shaped Lifting

Bucket capacity(m3)

0.5

Rated flow(L/min)

75

tank capacity(L)

90

Weight with bucket(kg)

3500

Dimension

Height at Maximum Extension(mm)

4070

Hinge Pin Height (mm)

3150

Total Height (mm)

2160

Height to bottom of bucket(mm)

2983

Overall length without bucket ( mm )

2880

overall length with bucket(mm)

3580

Dumping angle at maximum height(° )

40

Dumping height(mm)

2450

Dumping reach(mm)

700

Rollback at ground position(° )

30

Rollback fully raised at max. height(° )

104

Wheelbase(mm)

1115

Ground clearance(mm)

205

Angle of departure(°)

20

Front turning radius without bucket(mm)

1250

Front turning radius(mm)

2112

Rear tuning radius(mm)

1774

Rear length (mm)

1082

Track width(mm)

1500

Width (mm)

1880

Bucket width (mm)

1880

The structure and parameters are subject to change without prior notice due to technical progress. If the sample product is different from the actual product in some way, the actual product shall prevail.
