Product details of the wheel loader electric
Product Introduction
Using high-quality materials, AILISHENG Construction Equipment wheel loader electric has been given an attractive appearance. The quality of the product meets the requirements of domestic and international standards. Comprehensive sales network helps AILISHENG Construction Equipment win more customers.

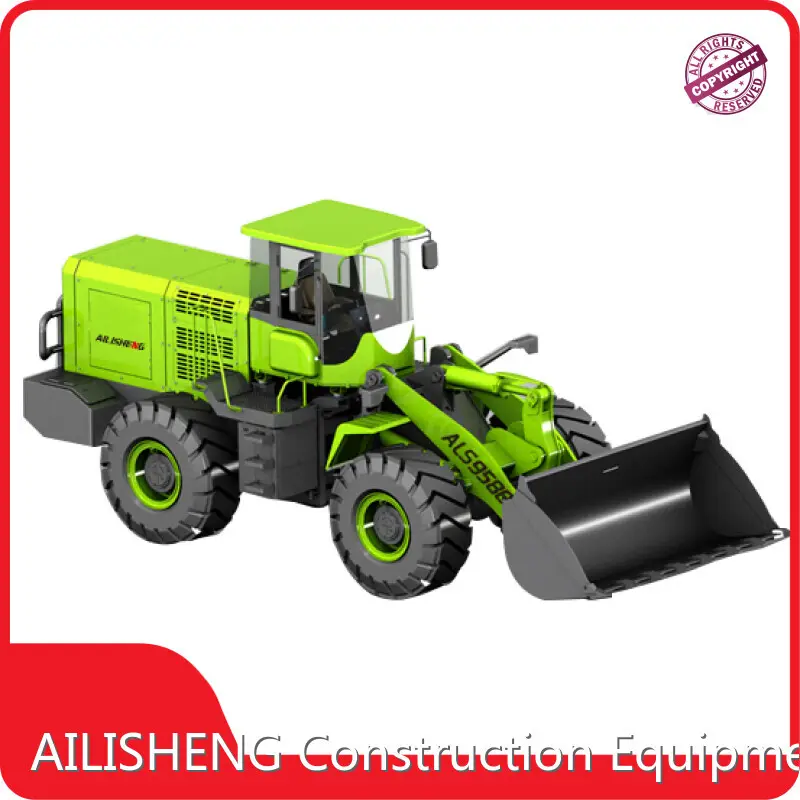

ALS958EV Specifications
Electric Wheel Loaders Parameters
Item |
No. |
Item |
Item |
Main Parameters |
1 |
Rated Load(kg) |
5500 |
2 |
Operating weight(kg) |
18500 |
|
3 |
Bucket capacity(m3) |
3.5 |
|
4 |
Max.traction (KN) |
150-180KN |
|
5 |
Max. breakout force (KN) |
170 |
|
6 |
Max. grade ability(°) |
30 |
|
7 |
Max. dumping height(mm) |
3450 |
|
8 |
Max. dumping distance(mm) |
1200mm |
|
9 |
Dimensions(LxWxH))mm |
8850×3120×3500 |
|
10 |
Min. turning diameter(mm) |
6780 |
|
11 |
Diameter of traverse |
7500 |
|
Hydraulic motor |
12 |
Motor type |
Permanent magnet synchronous motor |
13 |
Motor model |
TZ300-S180 |
|
14 |
Rated power/Peak power(KW) |
80/140 |
|
15 |
Rated speed/Peak speed(r/min) |
850/2300 |
|
16 |
Rated torque/Peak torque(N.M) |
980/1300 |
|
Driving motor |
18 |
Motor type |
Permanent magnet synchronous motor |
19 |
Motor model |
TZ370-S280 |
|
20 |
Rated power/Peak power(KW) |
135/200 |
|
21 |
Rated speed/Peak speed(r/min) |
990/2800 |
|
22 |
Rated torque/Peak torque(N.M) |
1300/2850 |
|
Transmission system |
24 |
Transmission type |
Electro-hydraulic control counter-shaft type |
25 |
Gear number |
F2/R2 |
|
26 |
Speed F1/R1 |
0-12 |
|
27 |
Speed F2/R2 |
0-39 |
|
28 |
Speed F3/R3 |
- |
|
29 |
Speed F4/R4 |
- |
|
Driving system |
30 |
Driving axles type |
Wet-type |
31 |
Axles manufacturor |
Yunyu |
|
32 |
Velocity ratio |
27.53 |
|
33 |
Wheel redction pattern |
Planetary |
|
34 |
Wheelbase(mm) |
3330 |
|
35 |
Wheel track(mm) |
2350 |
|
36 |
Ground clearance(mm) |
480mm |
|
37 |
Tyre spec. |
23.5-25 |
|
38 |
Driving type |
4WD |
|
Hydraulic system |
39 |
Hydraulic pump model & manufacturor |
SGP2112-2090-0016L01Jinan Hydraulic |
40 |
Pump displacement(ml/r) |
112-90-16 |
|
41 |
Valve model and manufacturor |
D32-00A/Gaoyu |
|
42 |
Steering model and manufacturor |
TLF2-E1000C-Zhengjiang |
|
43 |
Working Pressure(Mpa) |
18 |
|
44 |
Boom lifting time(s) |
6.0 |
|
45 |
Boom lowering time(s) |
3.0 |
|
46 |
Dumping time(s) |
1.5 |
|
47 |
Total cycle time(s) |
≦10.5 |
|
Brake system |
48 |
Working brake type |
Hydraulic brake |
49 |
Parking brake type |
Manual clamp type |
|
Battery system |
50 |
System voltage(V) |
24 |
51 |
Battery type |
Water-cooling/heating |
|
52 |
Working voltage(V) |
540 |
|
53 |
Battery capacity(kWh) |
351 |
|
54 |
Battery capacity(Ah) |
579 |
|
55 |
Charging time(h) |
1.5-2(h) |
|
56 |
Charging pile power(kw) |
180-240 |
Company Feature
• Getting rid of old ideas, our company draws support from the current e-commerce trend, and actively develops domestic and foreign markets. With the excellent quality of our products, we have successfully broken the space and regional barriers and opened up a vast market.
• AILISHENG Construction Equipment wholeheartedly provides intimate and reasonable services for customers.
• Our company now has a professional team which focuses on product research and development. Thus, we can guarantee the continuous improvement of product quality.
The products we produced are excellent in quality and cost-effective. If in need, please contact us!
