Scope of Application:

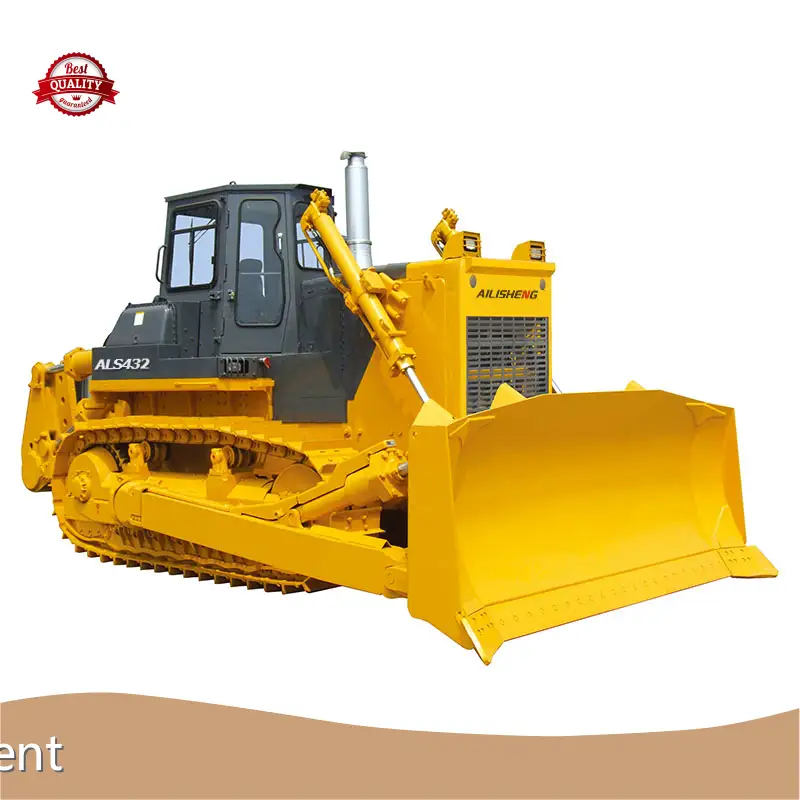

ALS432 crawler bulldozer, carries out standardized mass production of high-power bulldozer. The whole machine adopts advanced hydraulic transmission, hydraulic control technology, advanced and reasonable structure, light and flexible operation, quality and reliable.
Main Features
•A CUMMINS NTA855-C360S10 engine which can gives you more power and reliability you need.
•The highly reliable power shift transmission, stable torque converter and the two-stage straight-tooth structure final drive transmit power efficiently.
•With independent engine cooling water tank, chassis oil cooler, water and air intercooler provides excellent cooling performance and simple maintenance operation to ensure continuous operation of the machine.
•The main frame of the full box structure adopts steel plate welded full box type integral structure, which is welded with the rear axle box. It has high impact load bearing capacity and resistance to bending and twisting. High quality weld seam ensures the main frame has a full life cycle.
•The final drive is driven low and provides more powerful driving force and efficient gradeability. The crawler-type walking chassis has reached the international advanced level and is suitable for various complicated working conditions, with high reliability and carrying capacity.
•The standard straight tilt blade features powerful cutting force and the three-shank ripper can be equipped for the ripping of clay and frozen earth, featuring high working efficiency and super-strong penetrating force
Main Specifications
Model | ALS432 |
Type | Standard Hydraulic Crawler Type |
Engine Model | CUMMINS NTA855-C360S10 |
(L)Displacement | 14.01 |
(kw/rpm)Rated power | 257/2000 |
(N.m/rpm)Max.torque | 1440@1400 |
Operating weight | 37.2 Ton |
(mm) Dimension(no ripper) | 6535×4150×3515 |
(mm) Grounding length | 3150 |
(MPa) Ground pressure | 0.105 |
(mm) Track gauge | 2140 |
(m³) Dozing capacity | 10 |
(mm) Blade width | 4150 |
(mm) Blade height | 1610 |
(mm) Max drop below ground | 560 |
(mm) Track shoe width | 560 |
(mm) Pitch | 228.6 |
Quantity of track link | 41 |
Quantity of Carrier rollers | 4 |
Quantity of Track rollers | 14 |
(MPa) Max pressure | 14 |
L/min Discharge | 355 |
(KN) Max tractor force | 280 |
(Km/h) Forward Speed | F1:0-3.6 |
F2:0-6.6 | |
F3:0-11.5 | |
(Km/h) Rear Speed | R1:0-4.4 |
R2:0-7.8 | |
R3:0-13.5 |
Company Advantages
· The offered AILISHENG Construction Equipment electric construction equipment is designed by a team of experienced professionals.
· This product has long service life and stable performance.
· Owing to the service provided to customer, Xiamen Ailisheng Intelligent Equipment Co.,Ltd is developing better and better.
Company Features
· As a supplier and manufacturer of electric construction equipment, Xiamen Ailisheng Intelligent Equipment Co.,Ltd is professional and reliable.
· The quality for our electric construction equipment is so great that you can definitely rely on.
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd can guarantee high-quality electric construction equipment and professional services. Ask online!
Application of the Product
The electric construction equipment produced by AILISHENG Construction Equipment is widely used in many industry sectors.
AILISHENG Construction Equipment has an excellent team consisting of talents in R&D, production and management. We could provide practical solutions according to actual needs of different customers.
