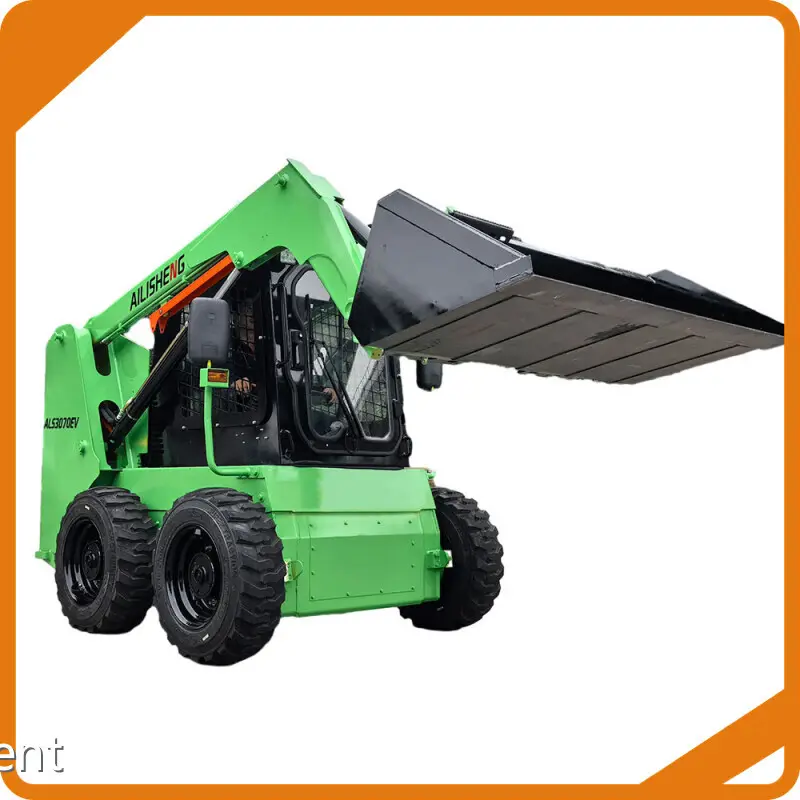

Battery Powered Skid Steer by AILISHENG Construction Equipment
Product details of the battery powered skid steer
Product Description
Proper materials: battery powered skid steer is made of materials with properties that not only meet the performance or reliability requirement but also is easy to work with during production. The product is got into a regular cadence of quality audits to ensure reliable quality. The product, in the long term, will be used by larger group of people.
Product features
● Four wheel drive, full power. The whole machine has compact structure and flexible operation. The structural parts of the whole machine are optimized, stable and reliable.
● Reliable battery, drive motor and electrical accessory system, advanced AC controller and CANbus data bus technology ensure the durability and long endurance of the equipment.
● The cover of the whole machine can be turned over to facilitate maintenance. The system maintenance items are simple and convenient, saving maintenance time and labor cost. Families can charge by themselves, which is convenient and safe to use.
● The operating device is designed by ergonomics, with comfortable operation and stable driving. The whole machine protection frame provides full safety protection for drivers.
● Pure electric system has the advantages of high efficiency, zero exhaust emission, low noise, environmental protection and energy saving. It is suitable for indoor and outdoor use with lower cost.
● A variety of accessories can be selected to meet the needs of various working conditions such as loading, forking, grass clamping, snow pushing, cleaning, drilling, hoisting and so on.
|
Model |
Fuel loader |
Electric Loader |
Cost comparison of 200 days per year |
||||
|
Country |
Diesel price |
Hourly fuel consumption |
Cost of working 8 hours per day |
Electricity price |
Hourly energy consumption |
Cost of working 8 hours per day |
|
|
Canada |
1.6 C$/L |
5L/h |
64 C$ |
0.06 C$/Kwh |
5Kwh/h |
2.4 C$ |
save 12320 C$ |
|
U.S.A |
0.66 $/L |
26.4 $ |
0.13 $/Kwh |
5.2 $ |
Save 4240 $ |
||
|
China |
6.7 RMB/L |
268 RMB |
0.50RMB/Kwh |
20 RMB |
Save 49600 RMB |
||
Main technical parameter
|
|
ALS3070EV |
|
Electric motor model |
5×PMSM |
|
Rated power |
5x12kW |
|
Maximum power |
5x12kW |
|
Maximum torque(PER MOTOR) |
160Nm |
|
Battery Pack |
30kwh |
|
Max. Speed (km/h) |
13 |
|
Tire (track) model |
10-16.5 |
|
Loading Capacity(kg) |
700 |
|
Bucket capacity(m3) |
0.4 |
|
Rated flow(L/min) |
62.5 |
|
hydraulic tank capacity(L) |
70 |
|
Weight with bucket(kg) |
2700 |
|
Dimension |
|
|
Height at Maximum Extension (mm) |
3980 |
|
Hinge Pin Height (mm) |
3080 |
|
Total Height (mm) |
2140 |
|
Height to bottom of bucket(mm) |
2913 |
|
Overall length without bucket ( mm ) |
2640 |
|
overall length with bucket(mm) |
3420 |
|
Dumping angle at maximum height(° ) |
40 |
|
Dumping height(mm) |
2380 |
|
Dumping reach(mm) |
700 |
|
Rollback at ground position(° ) |
30 |
|
Rollback fully raised at max height(° ) |
104 |
|
Wheelbase(mm) |
991 |
|
Ground clearance(mm) |
185 |
|
Angle of departure(°) |
20 |
|
Front turning radius without bucket(mm) |
1168 |
|
Front turning radius(mm) |
1958 |
|
Rear tuning radius(mm) |
1630 |
|
Rear length (mm) |
1108 |
|
Track width(mm) |
1450 |
|
Width (mm) |
1720 |
|
Bucket width (mm) |
1740 |
