Product details of the electric construction vehicles
Product Description
AILISHENG Construction Equipment electric construction vehicles is manufactured with the support of the latest tools and equipment. With different material and technology processing, electric construction vehicles features its high performance. In order to better control quality, Xiamen Ailisheng Intelligent Equipment Co.,Ltd has made a complete quality control system.
Product features

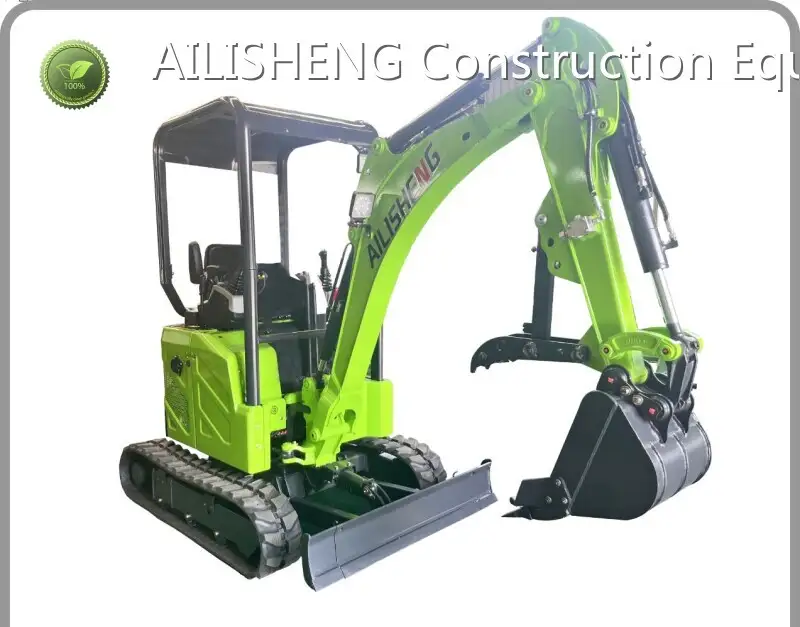

● The ALS20EV series all electric compact mini excavator can expand your work field and time range to a greater extent, showing the working performance no less than that of the same traditional internal combustion engine powered models. Its unique features of environmental friendliness and lower cost, as well as its traditional characteristics such as ultra compactness, durability and versatility, make it an ideal machine for use in places that are sensitive to noise and waste gas and have very narrow and compact workplaces.
● The lithium iron phosphate power battery used in this product does not need maintenance, the power cost is far lower than the fuel cost, which greatly reduces the noise, vibration, pollution-free, high efficiency, high stability and high quality. Standard on-board charging and plug and charge of civil electricity. ALS20EV electric excavator adopts electric professional design chassis, frame, boom and hydraulic system, with excellent performance. It can adapt to a large number of auxiliary working devices, such as bucket, crushing, clamp, drilling, etc., with flexible and convenient switching.
● Optional configurations also include retractable chassis, boom side sway, folding anti roll frame, four column ceiling, fast charging, photovoltaic charging, remote control device, etc.
Main technical parameter
|
Item |
ALS20EV |
1 |
Operating weight |
2065Kg |
2 |
Motor |
Permanent magnet synchronous motor |
3 |
Rated power |
15KW |
4 |
Motor Peak Power |
25KW |
5 |
Motor Rated Power |
65N·m |
6 |
Max. speed |
3000r/min |
7 |
Battery type |
Lithium iron phosphate battery |
8 |
Voltage(Standard) |
288V |
9 |
Battery capacity |
25.9KWh |
10 |
Bucket capacity |
0.04m3 |
11 |
Travel speed(H/L) |
3.2/2.3(Km/h) |
12 |
Swing speed |
10r/min |
13 |
Gradeability |
50.6% |
14 |
Ground pressure |
0.028MPa |
15 |
Bucket Digging Force |
15.2KN |
16 |
Arm Digging Force |
9.2KN |
17 |
Main pump flow |
30mL/r |
18 |
Max. Hydraulic system flow |
90L/min |
19 |
Hydraulic system pressure |
24.5Mpa |
Company Feature
• AILISHENG Construction Equipment has established an unobstructed market channel and sales network at home and abroad and has expanded the visibility of the products.
• AILISHENG Construction Equipment is capable of providing customers with high-quality products and thoughtful services relying on the professional service team.
• Based on the requirements of modern enterprise management system, our company develops ourselves in a long term through forming an experienced talents team.
• AILISHENG Construction Equipment's location has traffic convenience with multiple traffic lines joining up. This contributes to the transportation and ensures the timely supply of products.
Welcome to the site. AILISHENG Construction Equipment is sincere to be at your service!
