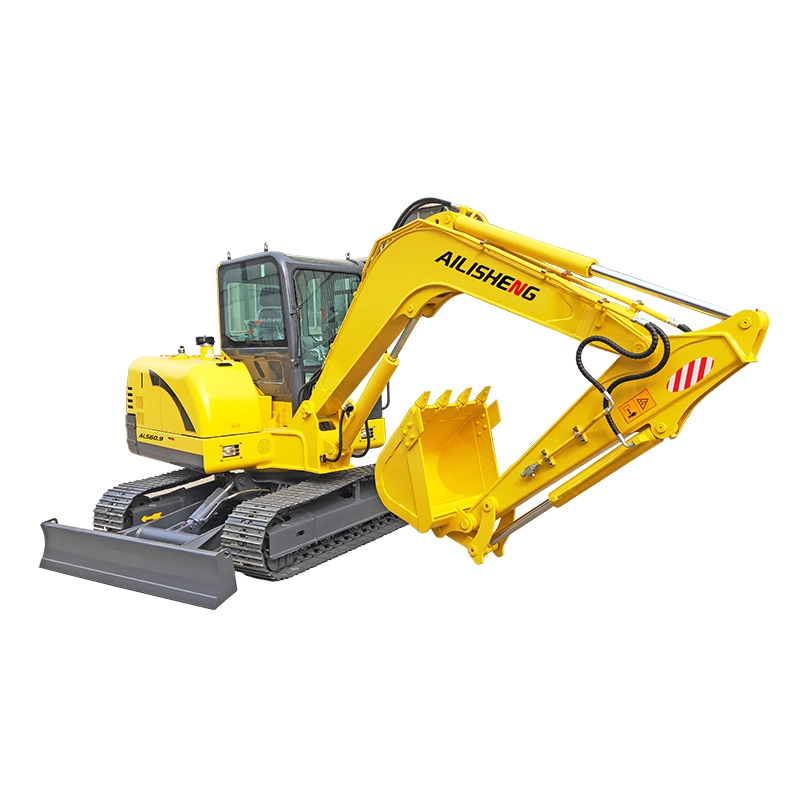

AILISHENG COMPACT EXCAVATORS ALS60.9

AILISHENG's compact excavators ALS60.9 is a classic model in Ailisheng's entire excavator product line and is designed for construction conditions. ALS60.9 excavator has strong power, fuel-saving, and high-efficiency characteristics and is widely used in various mines and medium-scale municipal projects.

    oops...!

    no product data.

    Go to homepage

    Products Features

    未标题-1
    High-efficiency hydraulic system
    The internationally renowned hydraulic system and intelligent electronic control system greatly improve the product's working efficiency, with stable performance, soft operation and reliable quality. The overall performance of the hydraulic system is reasonably matched with the output power of the engine, which significantly reduces energy loss.
    ALS958EV 03
    High reliability Yanmar engine
    Using the well-proven Yanmar engine, it has abundant power and good durability and is suitable for fuel in general areas with high fuel economy. Perfect matchin
    ALS958EV 04
    High efficiency working perfomance
    The potent power output and Ailisheng's unique intelligent control system and intelligent power control technology ensure efficient operation and reduce fuel consumption.
    20231201-ALS9588EV-2
    Strengthening the structure
    Ensure the reliability and durability of the excavators. Increase the thickness of the plate for critical parts and adapt to the advanced manufacturing process to improve durability. It not only increases the plate thickness and force-bearing area but also adopts an integrated casting structure at the linked part, dramatically improving service life.
    20231201-ALS9588EV-1
    Ultra-long life
    Finite element stress analysis software and MT and UT dual flaw detection guarantees are used to improve the strength of structural parts and covering parts.
    图片1 (2)
    Structure-optimized chassis
    The chassis structure design is optimized to improve the overall working stability and the durability of the lower chassis. ALS60.9 has the characteristics of wide gauge and long track characteristics, more reasonable weight distribution, stability in dynamic and slope operation, stronger side lifting force, and more stable operation under heavy load.
    Luxury cab
    Adhering to Ailisheng's driver-centered design concept, with comfortable operation, wide field of vision and low noise. It has an air-conditioning system that meets the operation's needs and a multi-functional LCD instrument panel to improve the comfort and convenience of the operation.
    ALS60 (5)
    The main frame and boom are equipped with LED work headlights as standard
    Significantly improving the driver's night work vision and improving night work efficiency and safety.
    ALS60 (4)
    Maintainability
    The distribution of maintenance parts is reasonably designed, and daily inspections can be easily performed on the ground.
    ALS60 (6)
    Service
    Our commitment to total customer satisfaction extends worldwide. To keep your machine and business up and running with Ailisheng uptime services that are proven to cut repair costs and unplanned downtime. Ailisheng always takes customer needs as the starting point and provides customers with a full range of services, including maintenance, repair, accessories, and value-added care.
    ALS60 (5)
    Application range
    Mining, general engineering, municipal engineering, road engineering.

    Electric Wheel Loaders Parameters

    Type



    ALS60.9

    Operating weight

    T

    6.05

    Bucket capacity(SAE)

    m3

    0.22-0.28

    Engine model



    Yanmar 4TNV94L-BVTY2C

    Power

    kw/r/min

    36.2/2100

    Volume of fuel tank

    L

    100

    Travel speed (High/Low)

    km/h

    4.2/2.2

    Swing speed

    r/min

    9.5

    Gradeability

    °

    30

    Digging force of bucket

    KN

    38.5

    Digging force of stick

    KN

    24.3

    Specific pressure of ground contact

    Kpa

    36.1

    Max. Traction

    kN

    55

    Type of hydraulic pump



    HP5V76

    Maximum flow

    L/min

    160

    Working pressure

    Mpa

    32

    Volume of hydraulic fluid tank

    L

    80

    A-Overall length

    mm

    5960

    B-Overall Width

    mm

    1960

    C-Overall height(tope of boom)

    mm

    1995

    D-Overall height(tope of cab)

    mm

    2690

    E-Gap from counterweight to ground

    mm

    700

    F-Min ground clearance

    mm

    360

    G-Tail swing radius

    mm

    1700

    H-Length of track on ground

    mm

    2000

    J-Track length

    mm

    2560

    K-Gauge

    mm

    1560

    L-Width of track

    mm

    1960

    M-Width of track shoe

    mm

    400

    N-Width of turning table

    mm

    1906

    O-Max. digging height

    mm

    5750

    P-Max. dumping height

    mm

    3980

    Q-Max. digging depth

    mm

    3860

    R-Max. vertical wall digging depth

    mm

    3040

    Max. digging depth at 2.5m plane

    mm

    3440

    T-Max. digging distance

    mm

    6170

    U-Max. digging distance at plane

    mm

    6045

    Min. swing radius

    mm

    2380

    Max height at min swing radius

    mm

    4395

    Distance from center of swing to rear end

    mm

    1700

    Y-Thickness of track grouses

    mm

    14

    Length of stick

    mm

    1630

    Length of boom

    mm

    3000
