Top Skid Steer Loaders Supply
Product details of the skid steer loaders
Product Introduction

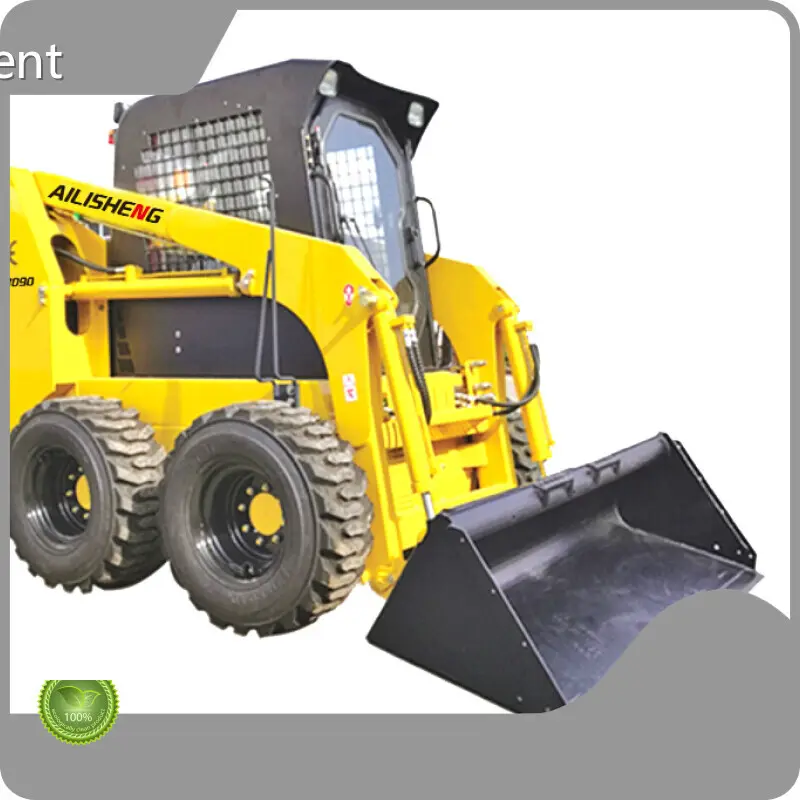

AILISHENG Construction Equipment skid steer loaders is developed as per the specifications laid by customers. Its quality is of high quality, meeting numerous needs of customers. Xiamen Ailisheng Intelligent Equipment Co.,Ltd has complete quality guarantee system and wins the trust of customers.
Product features
- Delivering unmatched performance, versatility, and ease of operation, the Ailisheng Skid Steer Loader is ideal for small confined areas, such as constructions sites, factory facilities, workshops, warehouses, docks, decks, ship cabins as well as other key sectors.
- Skid steer loader can attach various attachments to perform shoveling, stacking, lifting, digging, boring, breaking,grabbing, pushing, scarification, trenching, compacting, road cleaning, and many other operations which are provided to increase your flexibility, enabling you to handle many jobs with just the one machine.
- Using of simulation technology to learn the mission data at travelling and working conditions helped optimizing power and fuel efficiency.
-Compact structure, maneuverable movement suitable for narrow Space operation.
-Open cabin with mechanical control system.
-Double accelerograph control.
-Hydraulic brake.
Main Parameters
|
|
ALS3090 |
|
Engine Brand |
Xinchai |
|
Engine model |
498 |
|
Bore x stroke (mm) |
96X105 |
|
Rated power (Kw) |
45 |
|
Rated speed(rpm) |
2500 |
|
Number of cylinders |
4 |
|
Max. torque (N.m) |
193 |
|
Displacement (L) |
3.168 |
|
Max. Speed (km/h) |
12 |
|
Tire (track) model |
12-16.5 |
|
Loading Capacity (kg) |
850 |
|
Lifting Type |
Arc-Shaped Lifting |
|
Bucket capacity(m3) |
0.5 |
|
Rated flow(L/min) |
75 |
|
tank capacity(L) |
60 |
|
Weight with bucket(kg) |
3150 |
|
Dimension |
|
|
Height at Maximum Extension(mm) |
3690 |
|
Hinge Pin Height (mm) |
2920 |
|
Total Height (mm) |
2080 |
|
Height to bottom of bucket(mm) |
2783 |
|
Overall length without bucket ( mm ) |
2640 |
|
overall length with bucket(mm) |
3440 |
|
Dumping angle at maximum height(° ) |
40 |
|
Dumping height(mm) |
2250 |
|
Dumping reach(mm) |
710 |
|
Rollback at ground position(° ) |
30 |
|
Rollback fully raised at max. height(° ) |
104 |
|
Wheelbase(mm) |
991 |
|
Ground clearance(mm) |
205 |
|
Angle of departure(°) |
20 |
|
Front turning radius without bucket(mm) |
1198 |
|
Front turning radius(mm) |
1958 |
|
Rear tuning radius(mm) |
1728 |
|
Rear length (mm) |
1208 |
|
Track width(mm) |
1500 |
|
Width (mm) |
1880 |
|
Bucket width (mm) |
1880 |
|
The structure and parameters are subject to change without prior notice due to technical progress. If the sample product is different from the actual product in some way, the actual product shall prevail. |
|
Company Advantage
• After years of development in thepan> industry, we have a deep understanding of the market and rich experience in production and processing. Based on this, we have manufactured products suitable for the market like Electric Construction Equipment,Excavators,Wheel Loaders,Soil Vibratory Compactors,Landfill Compactors,Skid Steer Loaders,Forklift Trucks,Telescopic Forklift,Dozers,Motor Graders,Backhoe Loaders. Gradually, we become a remarkable leader of the industry,
• AILISHENG Construction Equipment provides competitive solutions and services based on customer demand,
• AILISHENG Construction Equipment's high-quality and highly educated elite team serves as the motivation for AILISHENG Construction Equipment's healthy and sustainable development.
• AILISHENG Construction Equipment's sales network now covers many provinces and cities such as Northeast China, North China, East China, and South China. And our products are highly praised by consumers.
If you have any questions when purchasing tents, don't hesitate to contact AILISHENG Construction Equipment. We will reply you in time!
