Skid Steer Loaders Manufacturer

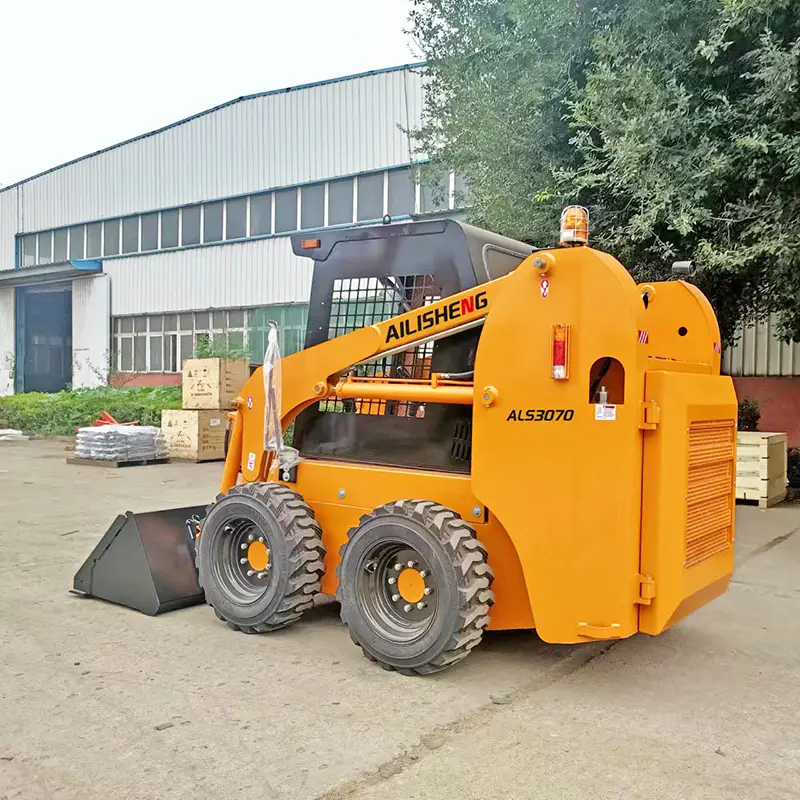

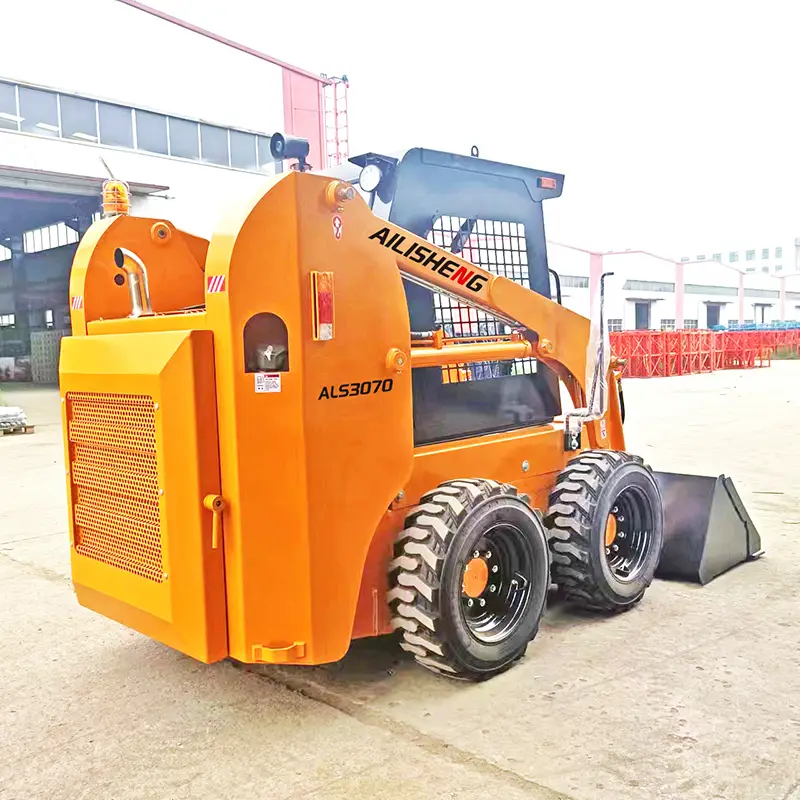

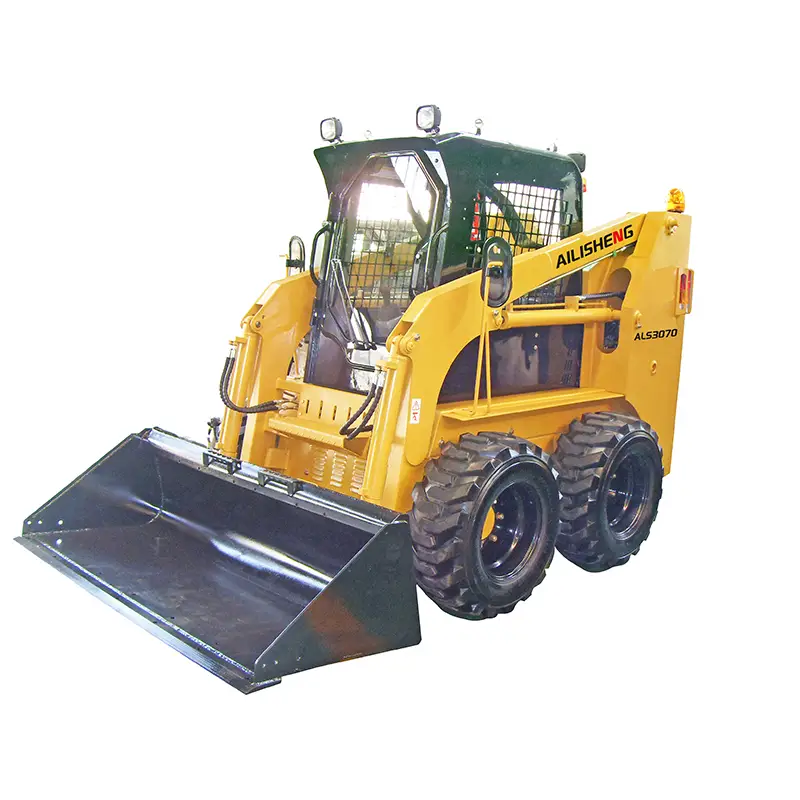

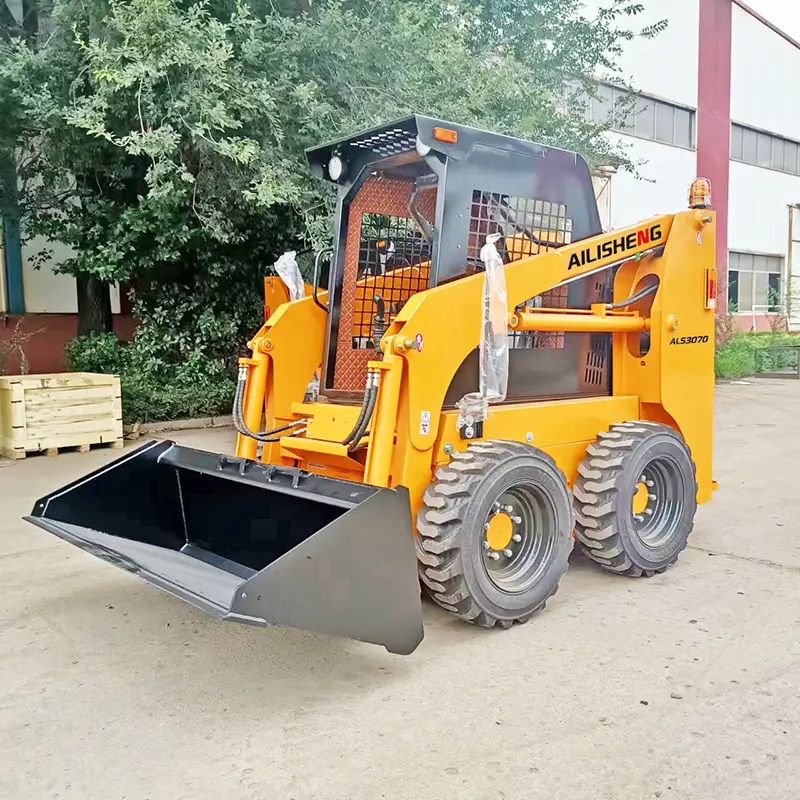

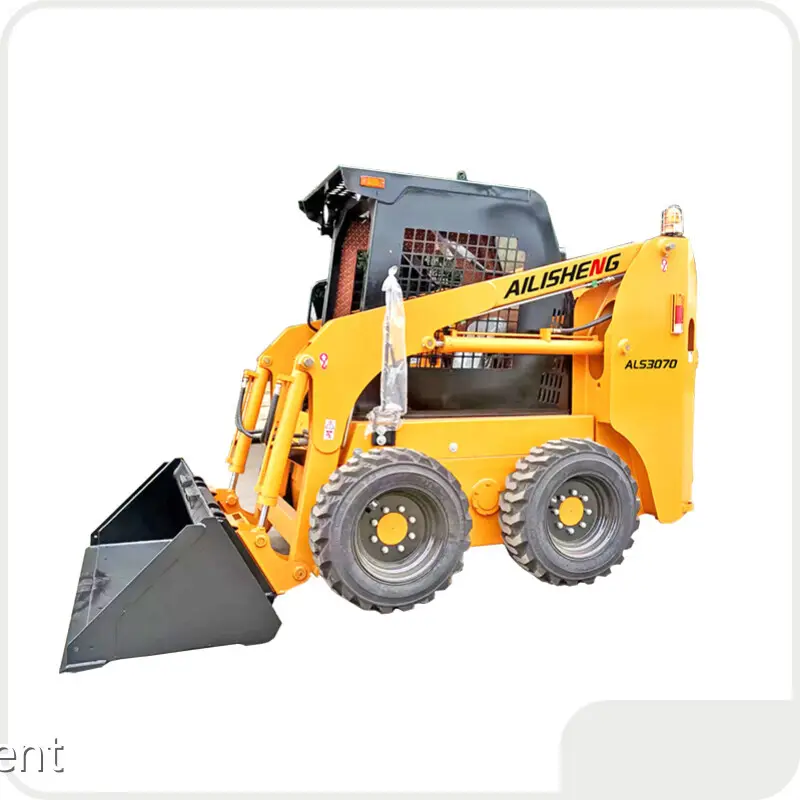

Product details of the skid steer loaders
Quick Overview
AILISHENG Construction Equipment skid steer loaders is elaborately manufactured by using quality raw materials and advanced production technology. It is recognized for strong durability and relatively long service life. skid steer loaders of AILISHENG Construction Equipment can play a role in various industries. The sales network of AILISHENG Construction Equipment is famous for its wide applications into different regions.
Product Information
With a focus on product's quality, our company strives for excellent quality in the process of producing skid steer loaders.
Product features
- Delivering unmatched performance, versatility, and ease of operation, the Ailisheng Skid Steer Loader is ideal for small confined areas, such as constructions sites, factory facilities, workshops, warehouses, docks, decks, ship cabins as well as other key sectors.
- Skid steer loader can attach various attachments to perform shoveling, stacking, lifting, digging, boring, breaking,grabbing, pushing, scarification, trenching, compacting, road cleaning, and many other operations which are provided to increase your flexibility, enabling you to handle many jobs with just the one machine.
- Using of simulation technology to learn the mission data at travelling and working conditions helped optimizing power and fuel efficiency.
-Compact structure, maneuverable movement suitable for narrow Space operation.
-Open cabin with mechanical control system.
-Double accelerograph control.
-Hydraulic brake.
Main Parameters
|
|
ALS3070 |
|
Engine Brand |
Xinchai |
|
Engine model |
490 |
|
Bore x stroke (mm) |
95X105 |
|
Rated power (Kw) |
37 |
|
Rated speed(rpm) |
2650 |
|
Number of cylinders |
4 |
|
Max. torque (N.m) |
156 |
|
Displacement (L) |
2.67 |
|
Max. Speed (km/h) |
12 |
|
Tire (track) model |
10-16.5 |
|
Loading Capacity (kg) |
700 |
|
Lifting Type |
Arc-Shaped Lifting |
|
Bucket capacity(m3) |
0.4 |
|
Rated flow(L/min) |
75 |
|
tank capacity(L) |
65 |
|
Weight with bucket(kg) |
3100 |
|
Dimension |
|
|
Height at Maximum Extension(mm) |
3980 |
|
Hinge Pin Height (mm) |
3080 |
|
Total Height (mm) |
2140 |
|
Height to bottom of bucket(mm) |
2913 |
|
Overall length without bucket ( mm ) |
2640 |
|
overall length with bucket(mm) |
3420 |
|
Dumping angle at maximum height(° ) |
40 |
|
Dumping height(mm) |
2380 |
|
Dumping reach(mm) |
750 |
|
Rollback at ground position(° ) |
30 |
|
Rollback fully raised at max. height(° ) |
104 |
|
Wheelbase(mm) |
991 |
|
Ground clearance(mm) |
185 |
|
Angle of departure(°) |
20 |
|
Front turning radius without bucket(mm) |
1168 |
|
Front turning radius(mm) |
1958 |
|
Rear tuning radius(mm) |
1630 |
|
Rear length (mm) |
1108 |
|
Track width(mm) |
1450 |
|
Width (mm) |
1720 |
|
Bucket width (mm) |
1740 |
|
The structure and parameters are subject to change without prior notice due to technical progress. If the sample product is different from the actual product in some way, the actual product shall prevail. |
|
Company Advantages
Xiamen Ailisheng Intelligent Equipment Co.,Ltd is one of the earliest professional skid steer loaders manufacturers in China. Xiamen Ailisheng Intelligent Equipment Co.,Ltd is great at learning and upgrading skid steer loaders technology. In order to contribute to protecting our environment, we make great efforts to save energy resources, reduce production pollution and produce cleaner and more environmental-friendly products.
Welcome all customers in need to purchase our products.
