AILISHENG Construction Equipment - Lead in electric construction equipment, one stop solution for construction equipment.

New Electric Mini Loader for Sale Price List 1
New Electric Mini Loader for Sale Price List 2
New Electric Mini Loader for Sale Price List 3
New Electric Mini Loader for Sale Price List 4
New Electric Mini Loader for Sale Price List 5
New Electric Mini Loader for Sale Price List 1
New Electric Mini Loader for Sale Price List 2
New Electric Mini Loader for Sale Price List 3
New Electric Mini Loader for Sale Price List 4
New Electric Mini Loader for Sale Price List 5

New Electric Mini Loader for Sale Price List

Inquiry
Send your inquiry

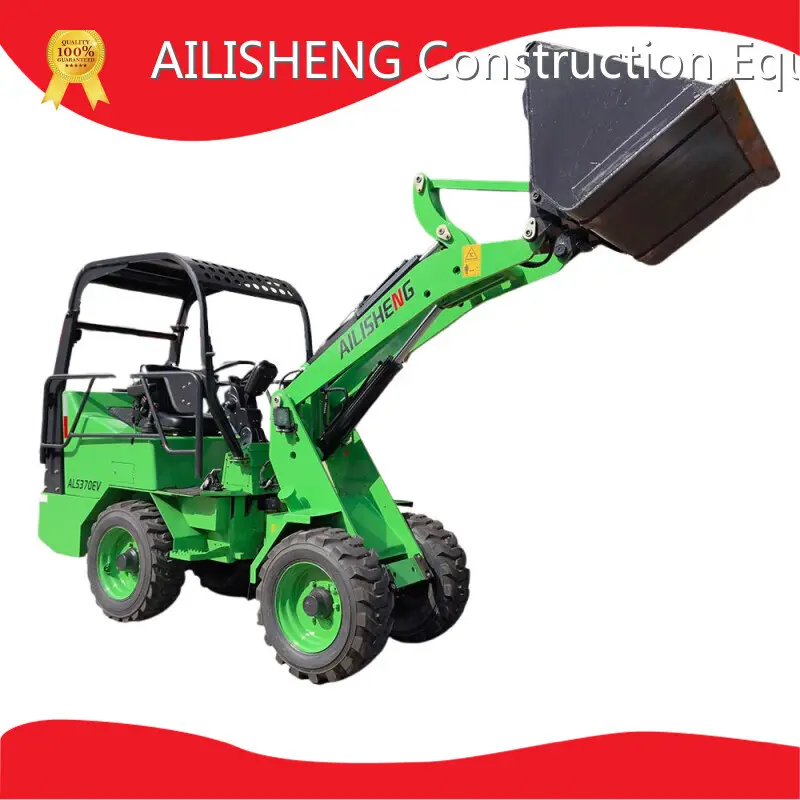

Product details of the electric mini loader for sale


Quick Detail

Moreover, we make required changes in electric mini loader for sale in order to match with the latest development of the industry. Its function is in perfect balance with the the quality and its service life. Xiamen Ailisheng Intelligent Equipment Co.,Ltd has a wide range of influence in the country.


Product Description

Adhering to the concept of 'details and quality make achievement', we will work harder on the following details of electric mini loader for sale to make our products more advantageous.

IMG_20231219_112639

Product features

Four wheel drive, full power. The whole machine has compact structure and flexible operation. The structural parts of the whole machine are optimized, stable and reliable.

Reliable battery, drive motor and electrical accessory system, advanced AC controller and CANbus data bus technology ensure the durability and long endurance of the equipment.

The cover of the whole machine can be turned over to facilitate maintenance. The system maintenance items are simple and convenient, saving maintenance time and labor cost. Families can charge by themselves, which is convenient and safe to use.

 The operating device is designed by ergonomics, with comfortable operation and stable driving. The whole machine protection frame provides full safety protection for drivers.

 Pure electric system has the advantages of high efficiency, zero exhaust emission, low noise, environmental protection and energy saving. It is suitable for indoor and outdoor use with lower cost.

 A variety of accessories can be selected to meet the needs of various working conditions such as loading, forking, grass clamping, snow pushing, cleaning, drilling, hoisting and so on.

IMG_20231219_112814

Main technical parameter

ITEM

ALS340EV

 Main parameter

Operating weight

2850Kg

Rated Load

850Kg

Bucket capacity

0.7m³

Moving speed

0-18km/h

 Moving motor

Motor type

Permanent magnet synchronous motor

Rated power of motor

25kw

Motor Duty Rating

Duty with non-periodic load and speed variations

 Hydraulic Pump Moto

 Rated power of motor

15Kw

Motor Duty Rating

Duty with non-periodic load and speed variations

Battery

Battery Type

Lithium iron phosphate

Battery Voltage

144V

Battery rated capacity

278Ah(standard)

Battery weight

400Kg

 Charging time

AC220V Charge:3h

Operating time with full load

3.5h

Operating time with rated load

4-5h

Intermittent operation time

5-6h

Theoretical lifespan

25 ℃ 0.5c charge and discharge for 3000 times, and the capacity shall not be less than 80% of the nominal capacity

 Driving system

Operating voltage of driving system

144V

 Electrical system

Voltage of electrical system

12V

Tripping load with bucket(Refer to ISO8313)

Tripping load  when  straight line driving

1650Kg

Tripping load  when  full turn

1000Kg

 Hydraulic drive system

Displacement

12 cc

Working pressure

170bar

Hydraulic oil capacity

30L

Tyre

Specifications

26Í12-12 AS

Total width

1104mm

Overall dimension

Dimensions

ALS340EV

A  Total length with standard bucket

4440mm

A′  Transport position vehicle length

2330mm

C  Total width



   Narrow tire

1075mm

   Wide tire

1329mm

D  Wheel base

1550mm

E  Minimum ground clearance

345mm

F  Track width



   Narrow tire

812mm

   Wide tire

939mm

G  Bucket width

1370mm

H  Radius at the outer edge

2541mm

H′  Max. radius

3037mm

I  Total working height

3630mm

J  Max. height of bucket pivot

2885mm

K  Maximum dumping height

2190mm

L  Dumping reach

630mm

M  Digging depth

150mm

N  Max. inclination angle

43°

O  Backroll angle on the ground

42°

P  Departure angle

22°

Q  Max. dumping angle

32°

T  Total length without bucket

3660mm


Company Advantages

With years of focus on the R&D, design, and production of electric mini loader for sale, Xiamen Ailisheng Intelligent Equipment Co.,Ltd has been widely accepted as a powerful manufacturer in the industry. Many customers have shown their great interest in our electric mini loader for sale. We have a deep commitment to social responsibility. We believe our efforts will bring a positive impact on our clients across numerous areas.
We are committed to guaranteeing the product quality and after-sales service. Welcome to contact us for cooperation!
