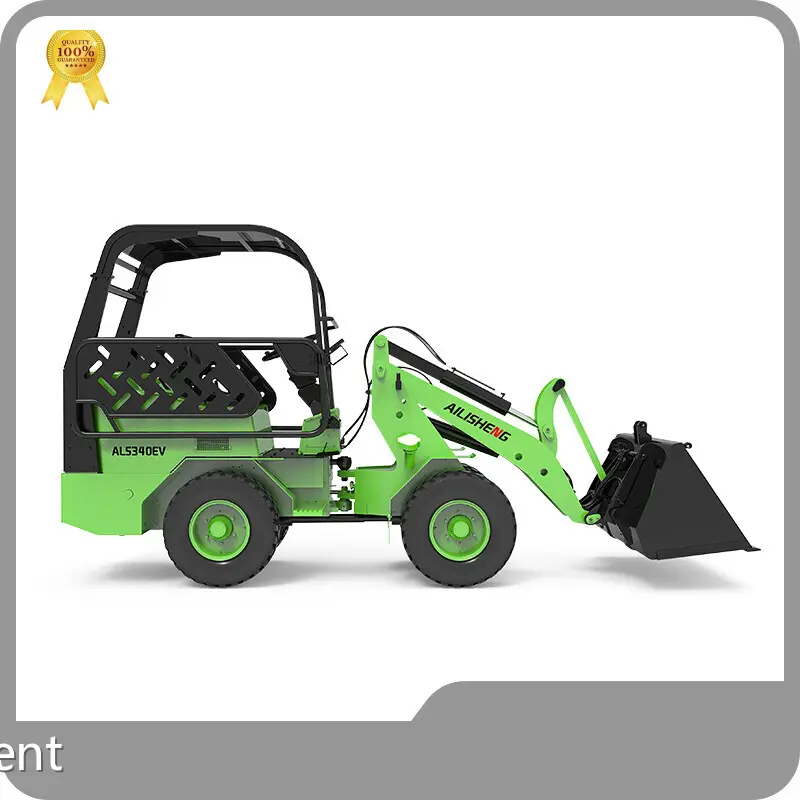

Latestelectric Mini Wheel Loader
Company Advantages
· The raw material of AILISHENG Construction Equipment electric mini wheel loader undergoes a rigorous selection procedure.
· The product is believed to function timelessly with improved reliability and is expected to serve users for a long time without any defects.
· Our quality control system is fully through entire production process of electric mini wheel loader.
Product features
● Four wheel drive, full power. The whole machine has compact structure and flexible operation. The structural parts of the whole machine are optimized, stable and reliable.
● Reliable battery, drive motor and electrical accessory system, advanced AC controller and CANbus data bus technology ensure the durability and long endurance of the equipment.
● The cover of the whole machine can be turned over to facilitate maintenance. The system maintenance items are simple and convenient, saving maintenance time and labor cost. Families can charge by themselves, which is convenient and safe to use.
● The operating device is designed by ergonomics, with comfortable operation and stable driving. The whole machine protection frame provides full safety protection for drivers.
● Pure electric system has the advantages of high efficiency, zero exhaust emission, low noise, environmental protection and energy saving. It is suitable for indoor and outdoor use with lower cost.
● A variety of accessories can be selected to meet the needs of various working conditions such as loading, forking, grass clamping, snow pushing, cleaning, drilling, hoisting and so on.
Main technical parameter
|
ITEM |
ALS340EV |
|
|
Main parameter |
Operating weight |
2450Kg |
|
Rated Load |
600Kg |
|
|
Bucket capacity |
0.45m³ |
|
|
Moving speed |
0-18km/h |
|
|
Moving motor |
Motor type |
Permanent magnet synchronous motor |
|
Rated power of motor |
20kw |
|
|
Motor Duty Rating |
Duty with non-periodic load and speed variations |
|
|
Hydraulic Pump Moto |
Rated power of motor |
10Kw |
|
Motor Duty Rating |
Duty with non-periodic load and speed variations |
|
|
Battery |
Battery Type |
Lithium iron phosphate |
|
Battery Voltage |
144V |
|
|
Battery rated capacity |
155Ah(standard) |
|
|
Battery weight |
260Kg |
|
|
Charging time |
AC220V Charge:3h |
|
|
Operating time with full load |
3.5h |
|
|
Operating time with rated load |
4-5h |
|
|
Intermittent operation time |
5-6h |
|
|
Theoretical lifespan |
25 ℃ 0.5c charge and discharge for 3000 times, and the capacity shall not be less than 80% of the nominal capacity |
|
|
Driving system |
Operating voltage of driving system |
144V |
|
Electrical system |
Voltage of electrical system |
12V |
|
Tripping load with bucket(Refer to ISO8313) |
Tripping load when straight line driving |
1250Kg |
|
Tripping load when full turn |
900Kg |
|
|
Hydraulic drive system |
Displacement |
12 cc |
|
Working pressure |
170bar |
|
|
Hydraulic oil capacity |
30L |
|
|
Tyre |
Specifications |
26Í12-12 AS |
|
Total width |
1104mm |
|
Overall dimension
|
Dimensions |
ALS340EV |
|
A Total length with standard bucket |
4330mm |
|
A′ Transport position vehicle length |
4260mm |
|
Non-enclosed trailer height |
1970mm |
|
B Height to top of cabin |
2330mm |
|
C Total width |
|
|
Narrow tire |
1075mm |
|
Wide tire |
1329mm |
|
D Wheel base |
1550mm |
|
E Minimum ground clearance |
345mm |
|
F Track width |
|
|
Narrow tire |
812mm |
|
Wide tire |
939mm |
|
G Bucket width |
1370mm |
|
H Radius at the outer edge |
2541mm |
|
H′ Max. radius |
3037mm |
|
I Total working height |
3630mm |
|
J Max. height of bucket pivot |
2950mm |
|
K Maximum dumping height |
2190mm |
|
L Dumping reach |
630mm |
|
M Digging depth |
150mm |
|
N Max. inclination angle |
43° |
|
O Backroll angle on the ground |
42° |
|
P Departure angle |
22° |
|
Q Max. dumping angle |
32° |
|
T Total length without bucket |
3550mm |
Company Features
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd is one of the leading companies in China’s electric mini wheel loader industry.
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd uses a unique production process and production technology. electric mini wheel loader has mature product structure and production process.
· The principle of our company is always sticking to quality. We devote ourselves to improving product quality throughout the whole production stage. They range from materials sourcing, manufacturing technologies, and facilities to strict quality testing.
Product Details
AILISHENG Construction Equipment's electric mini wheel loader has superior quality. The specific details are presented in the following section.
Application of the Product
AILISHENG Construction Equipment's electric mini wheel loader is of excellent quality and is widely used in the industry.
According to different needs of customers, AILISHENG Construction Equipment is capable of providing reasonable, comprehensive and optimal solutions for customers.
Enterprise Advantages
AILISHENG Construction Equipment has an elite team with high cohesiveness, technical excellence, high quality, high performance and courage, which provides favorable conditions for our development.
AILISHENG Construction Equipment makes effort to provide excellent services to meet the needs of customers.
Our company insists on the business philosophy of 'law-abiding and sustainable management' and the quality policy of 'pursuit of perfection'. We are committed to providing customers with the highest quality products.
It has been nearly years since AILISHENG Construction Equipment was established. Our company has won a good reputation in the industry for our exquisite production and processing technology.
AILISHENG Construction Equipment's Electric Construction Equipment,Excavators,Wheel Loaders,Soil Vibratory Compactors,Landfill Compactors,Skid Steer Loaders,Forklift Trucks,Telescopic Forklift,Dozers,Motor Graders,Backhoe Loaders are sold well in all parts of the country. They are of good quality and affordable price, which are deeply favored by the majority of customers.
