Durable Skid Steer Loaders Price List

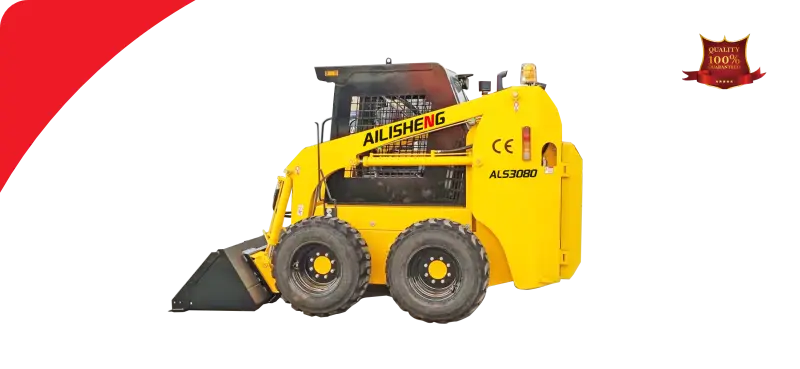

Product details of the skid steer loaders
Quick Overview
AILISHENG Construction Equipment's designers have begun to dare to make breakthroughs in the design of skid steer loaders. The product has the advantages of long and stable performance and long service life. As a result of our strong presence in the market and friendly relationship with customers, AILISHENG Construction Equipment have received positive feedback from them.
Product Information
The quality of AILISHENG Construction Equipment's skid steer loaders is better than the quality of its peer products. It is shown in the following aspects.
Product features
- Delivering unmatched performance, versatility, and ease of operation, the Ailisheng Skid Steer Loader is ideal for small confined areas, such as constructions sites, factory facilities, workshops, warehouses, docks, decks, ship cabins as well as other key sectors.
- Skid steer loader can attach various attachments to perform shoveling, stacking, lifting, digging, boring, breaking,grabbing, pushing, scarification, trenching, compacting, road cleaning, and many other operations which are provided to increase your flexibility, enabling you to handle many jobs with just the one machine.
- Using of simulation technology to learn the mission data at travelling and working conditions helped optimizing power and fuel efficiency.
-Compact structure, maneuverable movement suitable for narrow Space operation.
-Open cabin with mechanical control system.
-Double accelerograph control.
-Hydraulic brake.
Main Parameters
|
|
ALS3080 |
|
Engine Brand |
Xinchai |
|
Engine model |
498 |
|
Bore x stroke (mm) |
95X105 |
|
Rated power (Kw) |
45 |
|
Rated speed(rpm) |
2650 |
|
Number of cylinders |
4 |
|
Max. torque (N.m) |
156 |
|
Displacement (L) |
2.67 |
|
Max. Speed (km/h) |
12 |
|
Tire (track) model |
10-16.5 |
|
Loading Capacity (kg) |
700/800 |
|
Lifting Type |
Arc-Shaped Lifting |
|
Bucket capacity(m3) |
0.4 |
|
Rated flow(L/min) |
75 |
|
tank capacity(L) |
65 |
|
Weight with bucket(kg) |
3100 |
|
Dimension |
|
|
Height at Maximum Extension(mm) |
3980 |
|
Hinge Pin Height (mm) |
3080 |
|
Total Height (mm) |
2140 |
|
Height to bottom of bucket(mm) |
2913 |
|
Overall length without bucket ( mm ) |
2640 |
|
overall length with bucket(mm) |
3420 |
|
Dumping angle at maximum height(° ) |
40 |
|
Dumping height(mm) |
2380 |
|
Dumping reach(mm) |
750 |
|
Rollback at ground position(° ) |
30 |
|
Rollback fully raised at max. height(° ) |
104 |
|
Wheelbase(mm) |
991 |
|
Ground clearance(mm) |
185 |
|
Angle of departure(°) |
20 |
|
Front turning radius without bucket(mm) |
1168 |
|
Front turning radius(mm) |
1958 |
|
Rear tuning radius(mm) |
1630 |
|
Rear length (mm) |
1108 |
|
Track width(mm) |
1450 |
|
Width (mm) |
1720 |
|
Bucket width (mm) |
1740 |
|
The structure and parameters are subject to change without prior notice due to technical progress. If the sample product is different from the actual product in some way, the actual product shall prevail. |
|
Company Advantages
Xiamen Ailisheng Intelligent Equipment Co.,Ltd is situated in xia men and is a company that concentrates on production and sales of Electric Construction Equipment,Excavators,Wheel Loaders,Soil Vibratory Compactors,Landfill Compactors,Skid Steer Loaders,Forklift Trucks,Telescopic Forklift,Dozers,Motor Graders,Backhoe Loaders. Based on customer demand, AILISHENG Construction Equipment insists on seeking excellence and taking innovation, so as to provide consumers with better services. We are waiting for consulting from new and old customers!
