Product details of the big excavator for sale
Product Information
The design of AILISHENG Construction Equipment big excavator for sale is creative and targeted. Strict testing: its current performance has been tested by third parties. It is also ready to be tested by users and will be continuously updated. The product shows dynamic in the market.
Strong power
surging power, large torque, low fuel consumption, high efficiency power system.

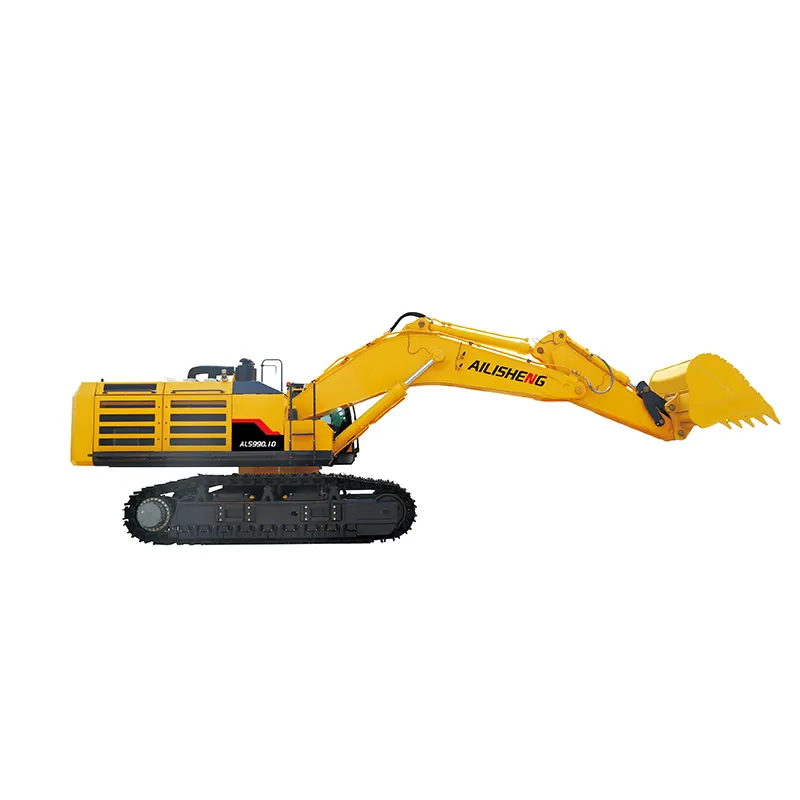

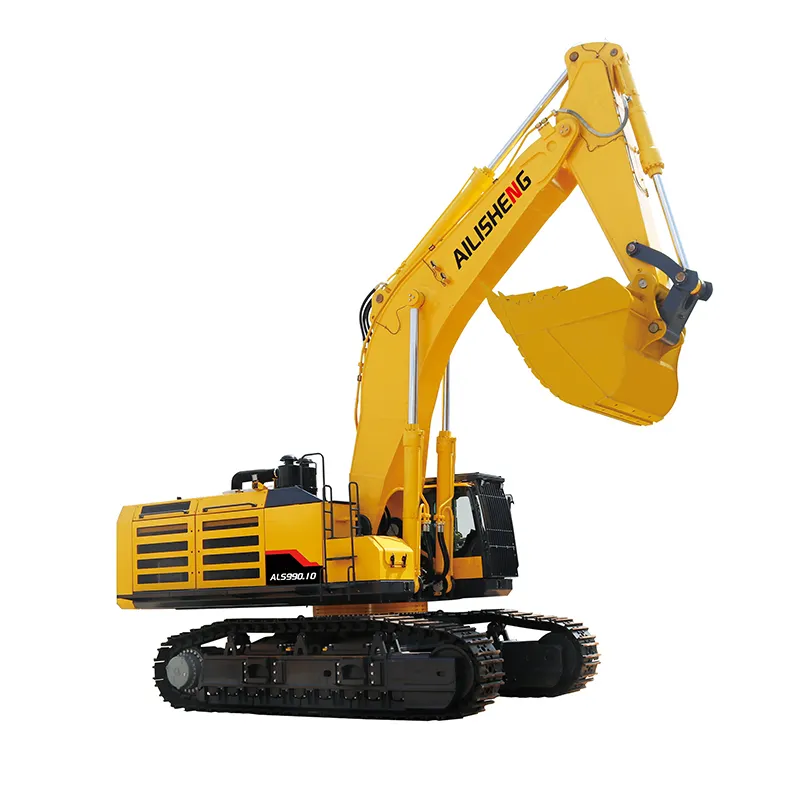

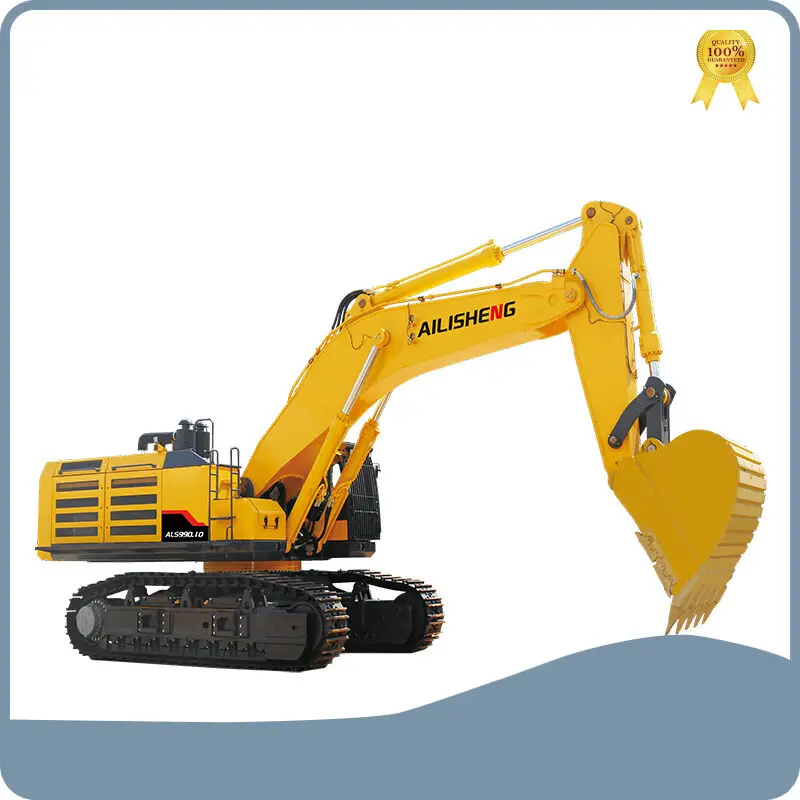

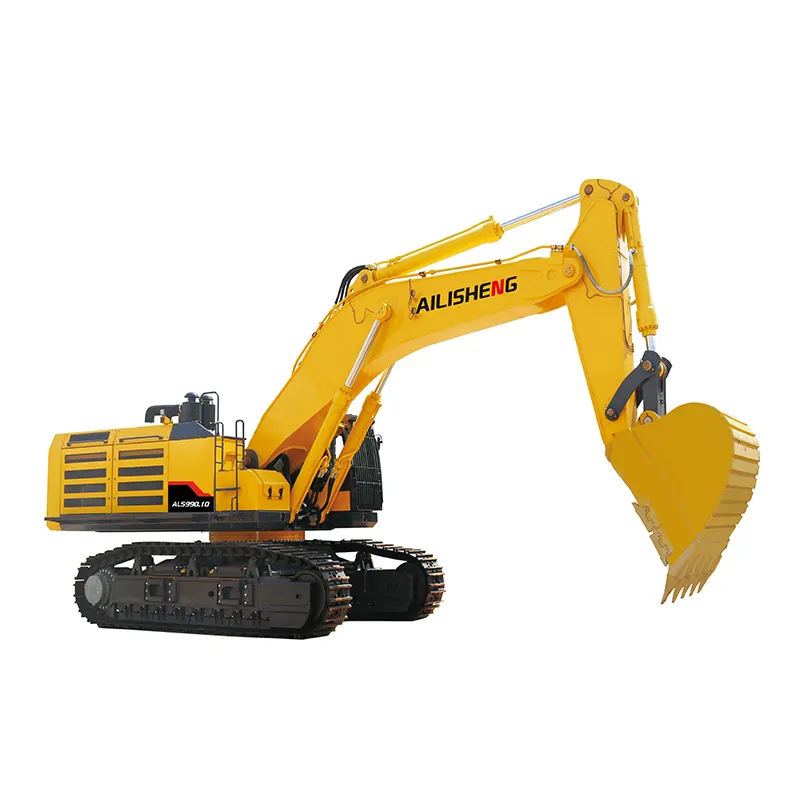

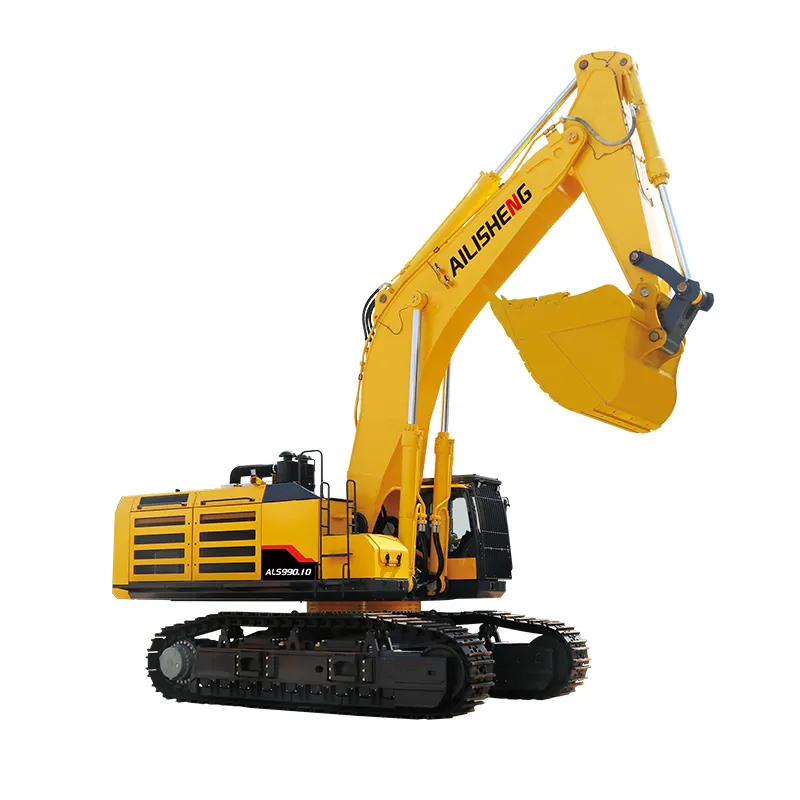

ALS990.10 is equipped with a new generation of SCANIA 16.4-liter V8 engine with a power of 574Kw. It is powerful and has sufficient power reserve to meet the requirements of high-intensity mining operations. The torque value reaches 3274N.m at 1400 rpm.
Innovative technology
Electronically controlled positive flow, dual pumps, independent cooling.
Independent cooling system
ALS990.10 adopts a completely independent dual cooling system, with independent control of water cooling system and hydraulic oil cooling system without interfering with each other. The fan speed is automatically adjusted according to the temperature. Equipped with one-key reversal function, radiator maintenance is convenient and quick. It can be used in high temperature environments and harsh working scenarios.
High-strength components - heavy-load reinforced design of structural parts.
The structural parts have been subjected to finite element analysis and heavy-load reinforcement design, which greatly improves the load-bearing capacity compared with models of the same tonnage in the industry.
Mine-type chassis, integral shoes guard; double volley ball slewing bearing is used for high load-bearing strength.
The whole machine has a unique and majestic shape, and the side doors, hood and other components are all reinforced designs.
Inspection and maintenance are convenient and fast
The engine room space adopts a "large space, easy maintenance" design. There is an inspection passage and an independent pump room and power cabin in the middle. There are walkways on both sides for easy and safe inspection and maintenance.
The cab has a novel appearance, comfortable control, wide field of view, intelligent and user-friendly design; it uses a 10-inch touch screen to integrate the control of air conditioning and radio, and is equipped with four cameras on the front, rear, left and right, which can generate a 360° panoramic image.
Attachments: You can cope with different working conditions to achieve multiple functions in one machine.
Four series of buckets can be configured to meet "one mine, one bucket" and cope with different application scenarios;
100-ton 240/250 breaker is optional to meet the needs of heavy-duty working conditions.
Service
Our commitment to total customer satisfaction extends worldwide. To keep your machine and business up and running with Ailisheng uptime services that are proven to cut repair costs and unplanned downtime. Ailisheng always takes customer needs as the starting point and provides customers with a full range of services, including maintenance, repair, accessories, and value-added care.
Application range: mining, general engineering, municipal engineering, road engineering.
Type |
|
ALS990.10 |
Working mass |
T |
98 |
Bucket capacity(SAE) |
m3 |
6.5-6.9 |
Engine model |
|
SCANIA DC16 |
Power |
kw/r/min |
574/2000 |
Volume of fuel tank |
L |
1300 |
Travel speed (High/Low) |
km/h |
3.53/2.39 |
Swing speed |
r/min |
6.5 |
Gradeability |
° |
35 |
Digging force of bucket |
KN |
477(514) |
Digging force of stick |
KN |
405(437) |
Specific pressure of ground contact |
Kpa |
131 |
Max. Traction |
kN |
713.6 |
Type of hydraulic pump |
|
K7V280SH |
Maximum flow |
L/min |
550x2 |
Working pressure |
Mpa |
34.3 |
Volume of hydraulic fluid tank |
L |
695 |
A-Overall length |
mm |
13870 |
B-Overall Width |
mm |
4450 |
C-Overall height(tope of boom) |
mm |
5345 |
D-Overall height(tope of cab) |
mm |
3920 |
E-Gap from counterweight to ground |
mm |
1728 |
F-Min ground clearance |
mm |
940 |
G-Tail swing radius |
mm |
4710 |
H-Length of track on ground |
mm |
5200 |
J-Track length |
mm |
6445 |
K-Gauge |
mm |
2750/3510 |
L-Width of track |
mm |
3400/4160 |
M-Width of track shoe |
mm |
650 |
N-Width of turning table |
mm |
3480 |
O-Max. digging height |
mm |
12670 |
P-Max. dumping height |
mm |
8345 |
Q-Max. digging depth |
mm |
6955 |
R-Max. vertical wall digging depth |
mm |
4860 |
Max. digging depth at 2.5m plane |
mm |
6805 |
T-Max. digging distance |
mm |
12560 |
U-Max. digging distance at plane |
mm |
12180 |
Min. swing radius |
mm |
5610 |
Max height at min swing radius |
mm |
10686 |
Distance from center of swing to rear end |
mm |
4710 |
Y-Thickness of track grouses |
mm |
50 |
Length of stick |
mm |
2930 |
Length of boom |
mm |
7250 |
