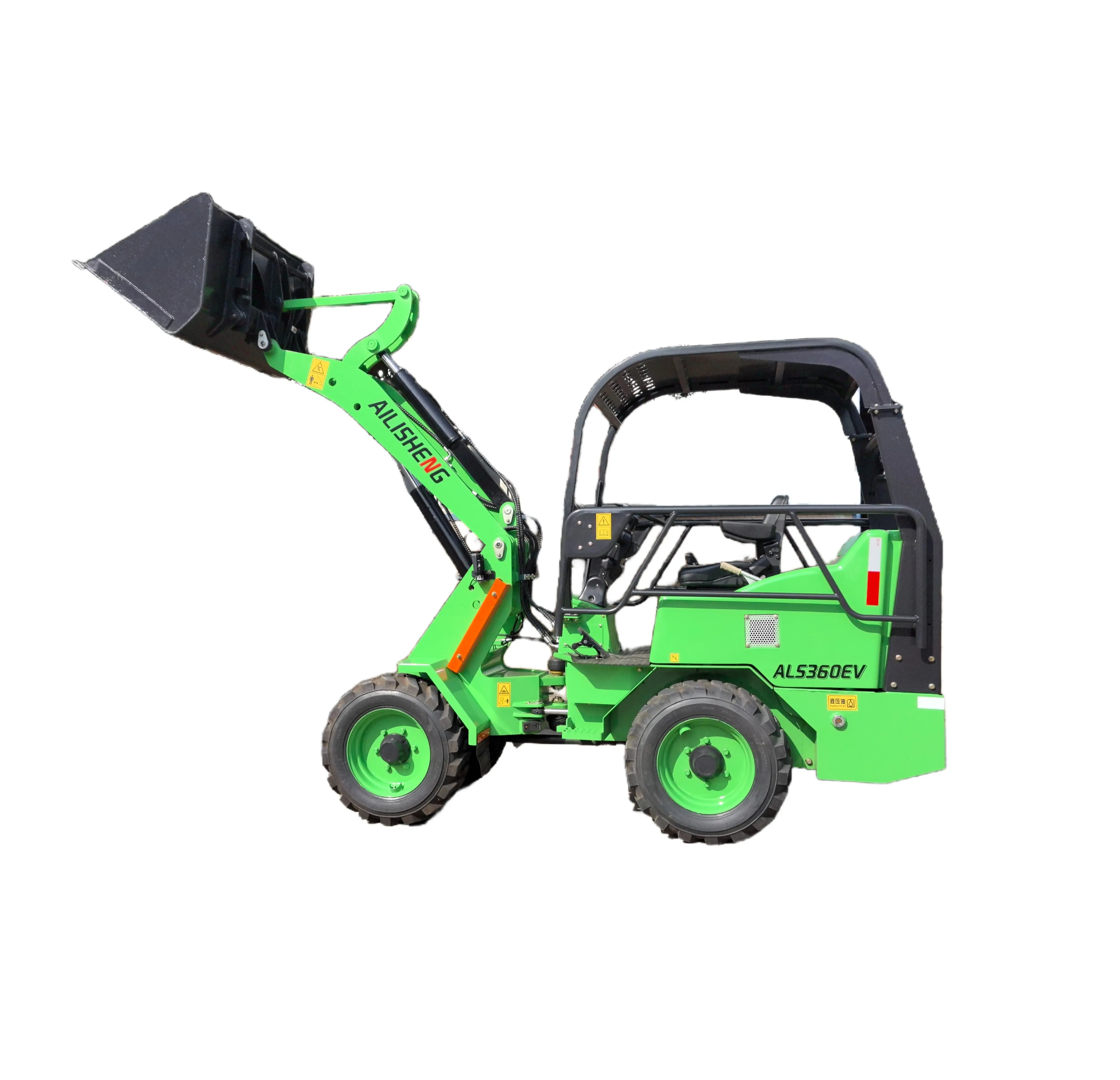

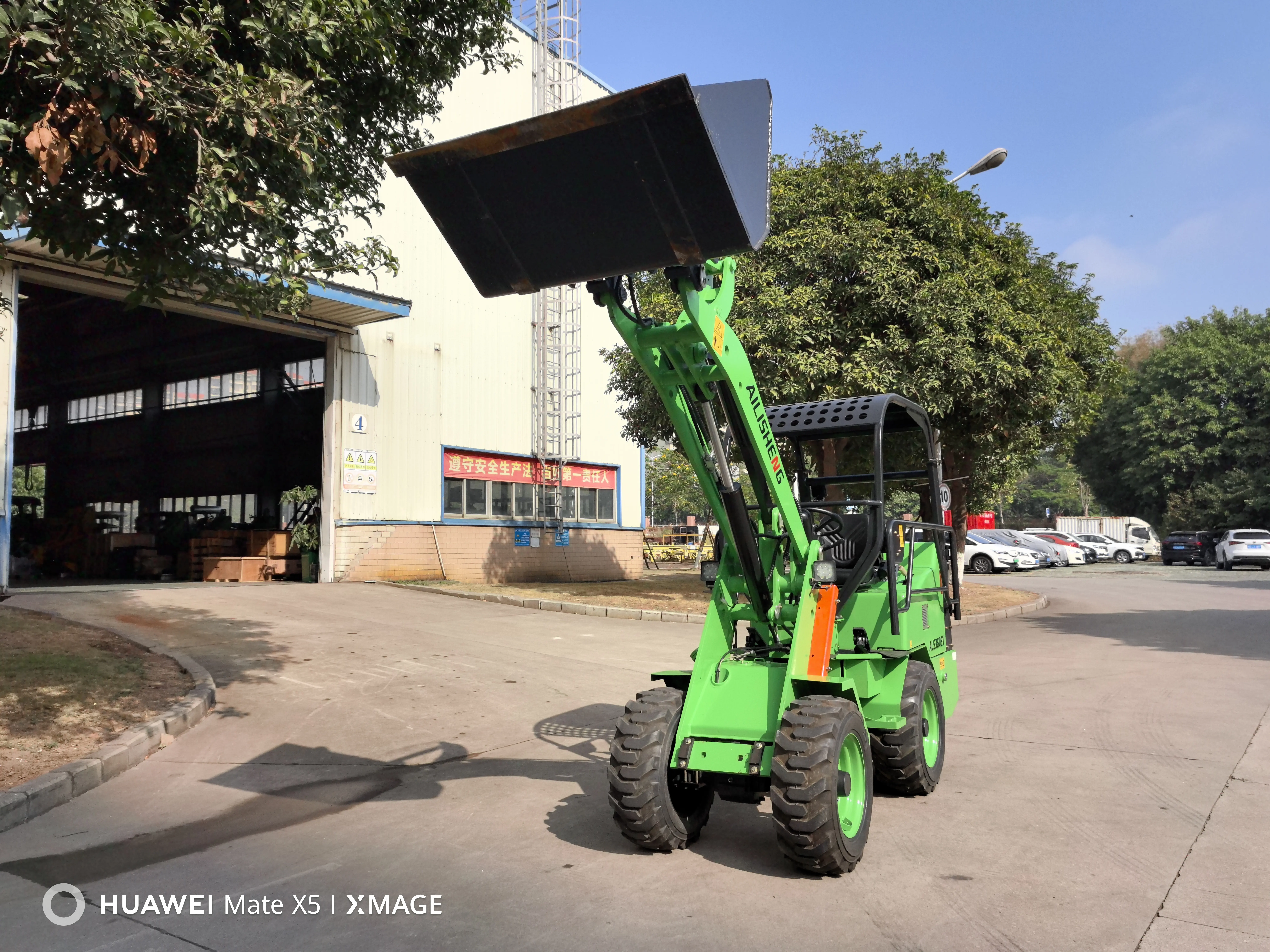

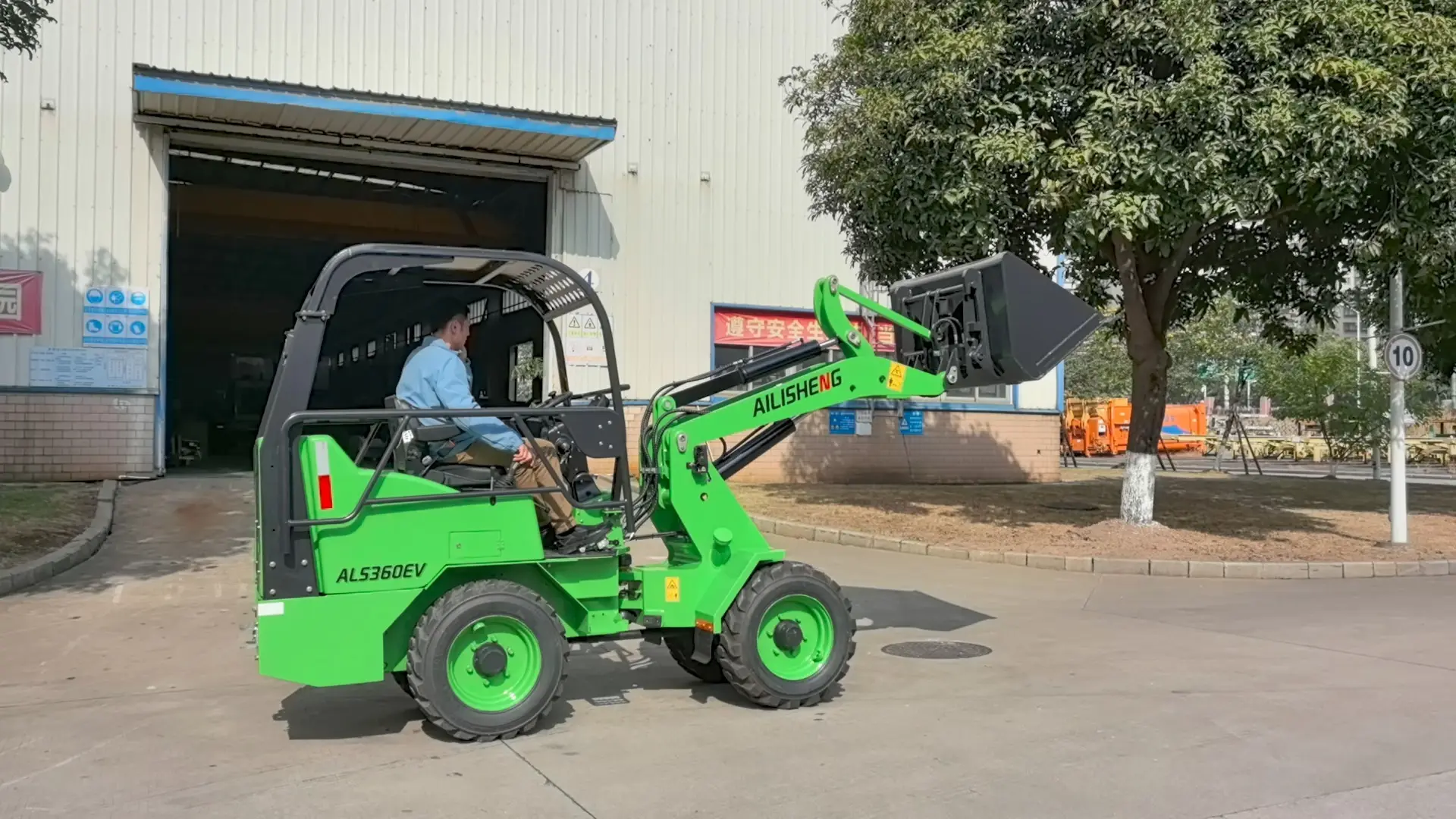

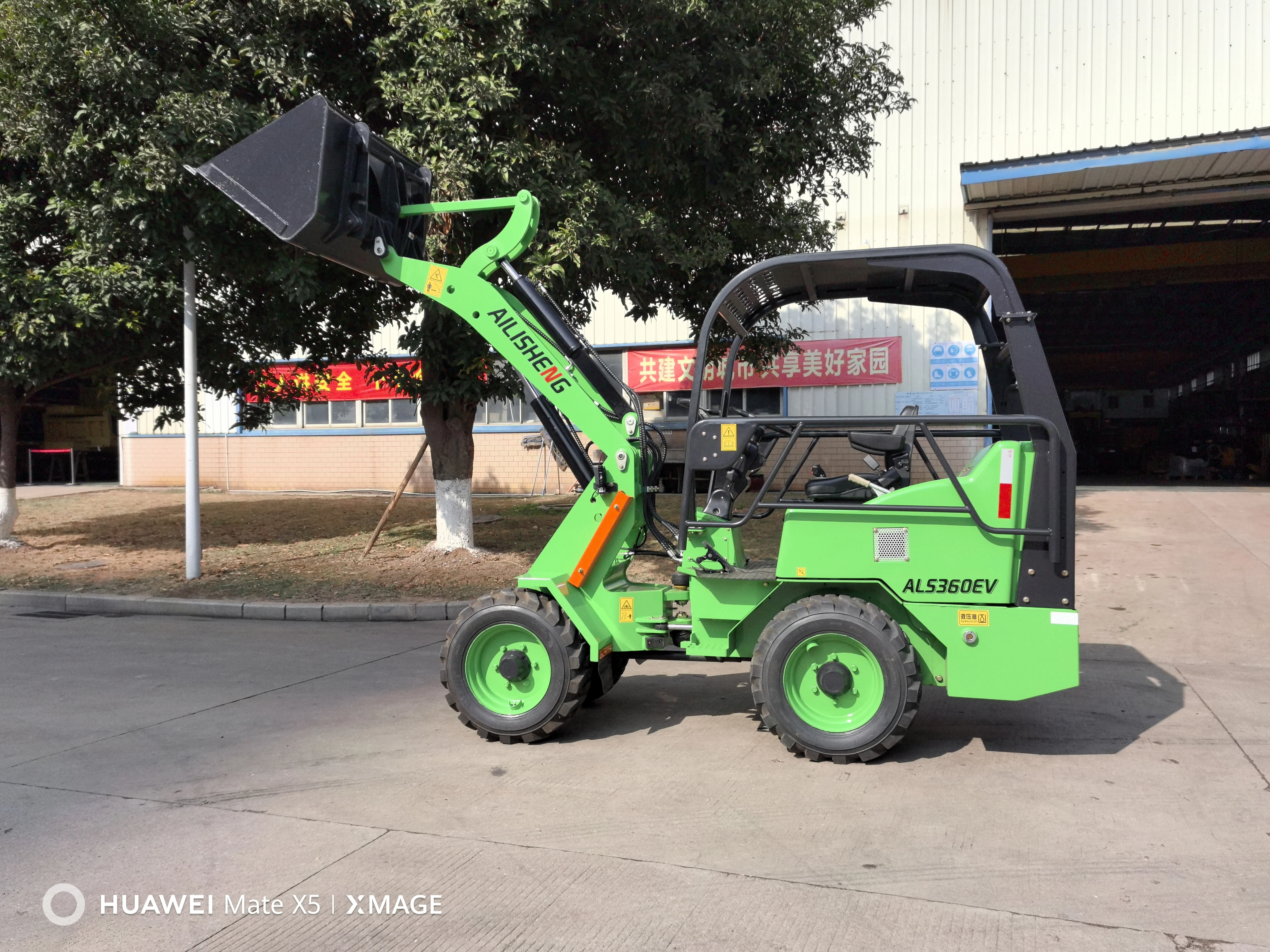

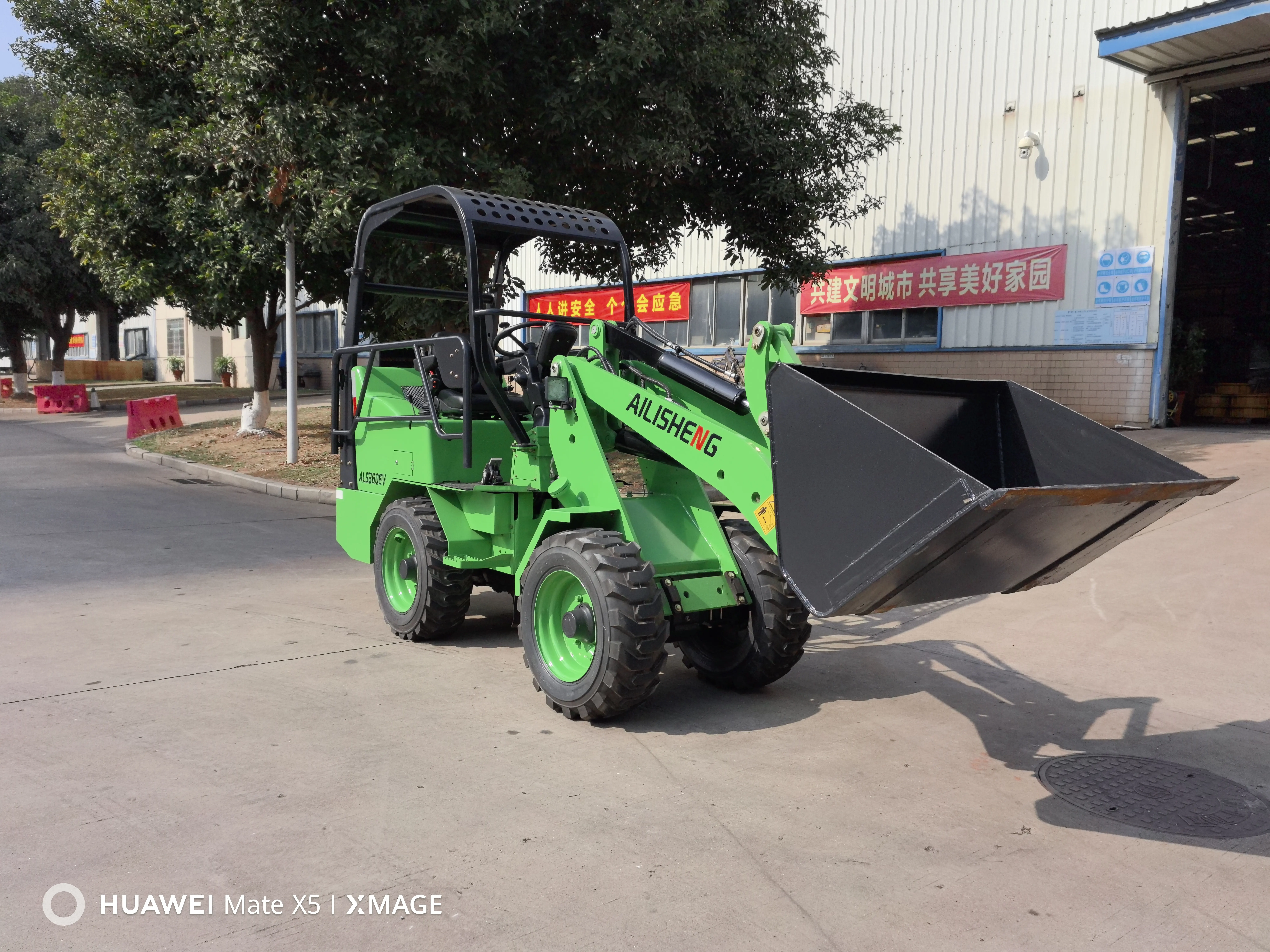

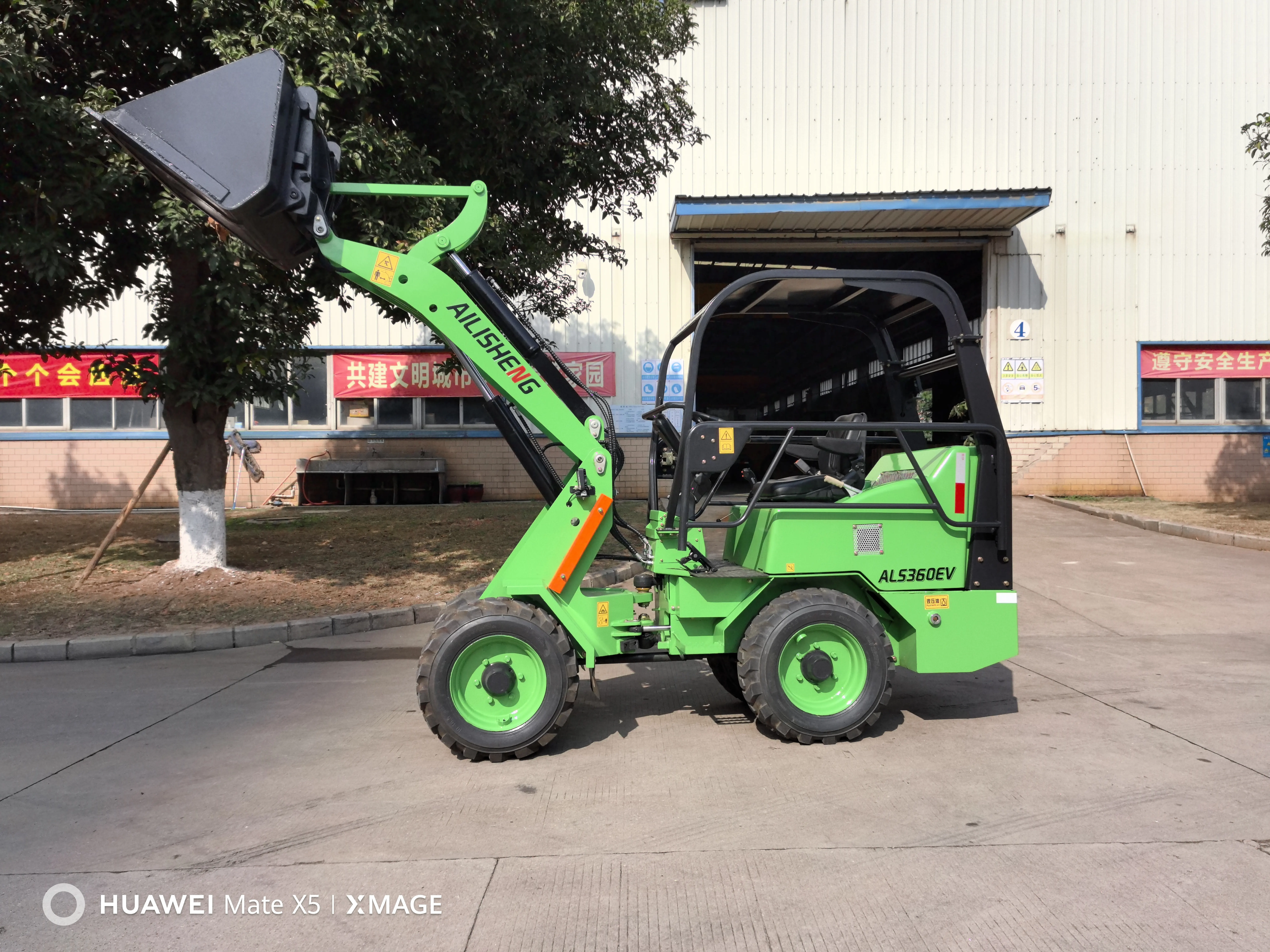

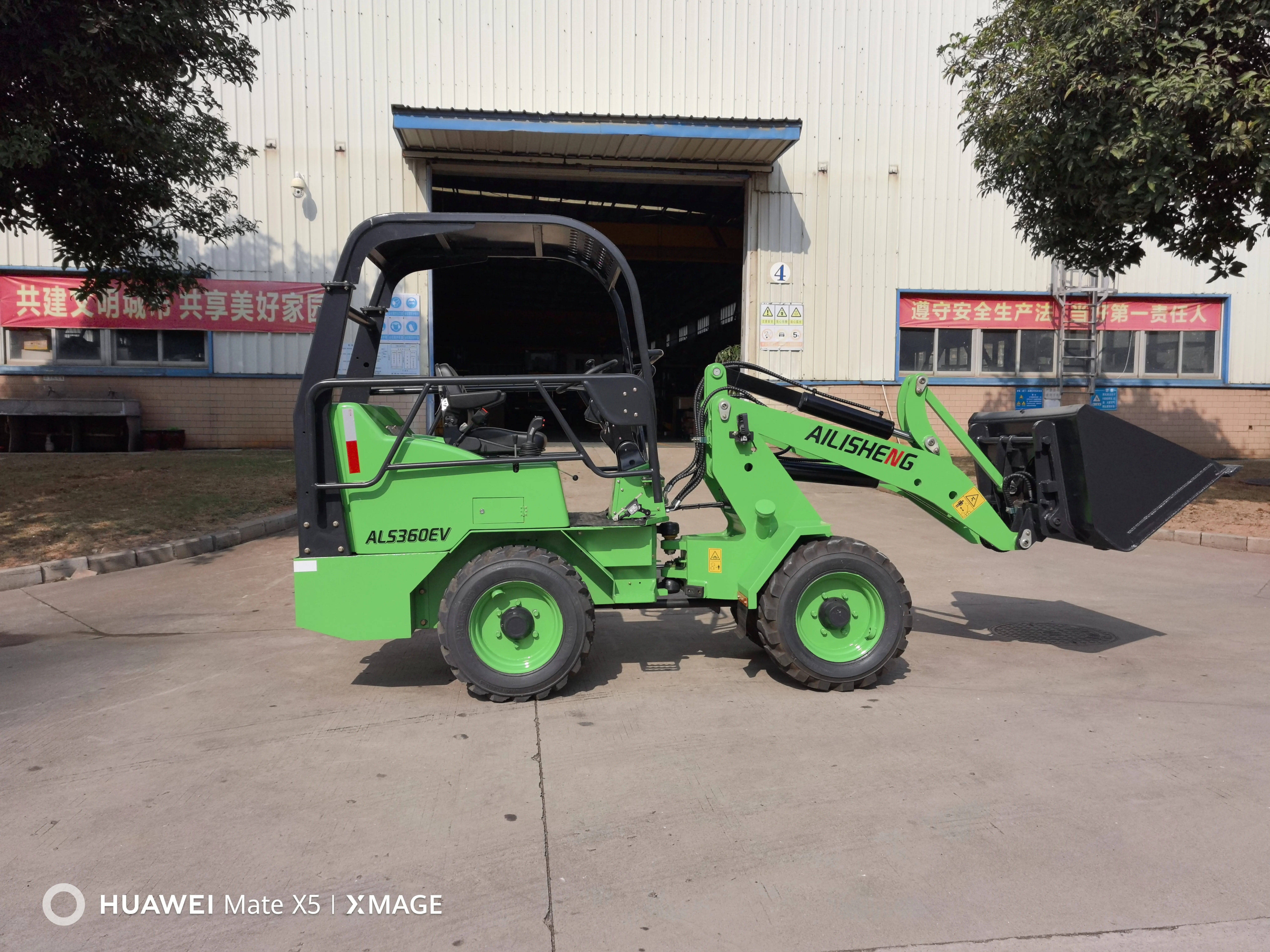

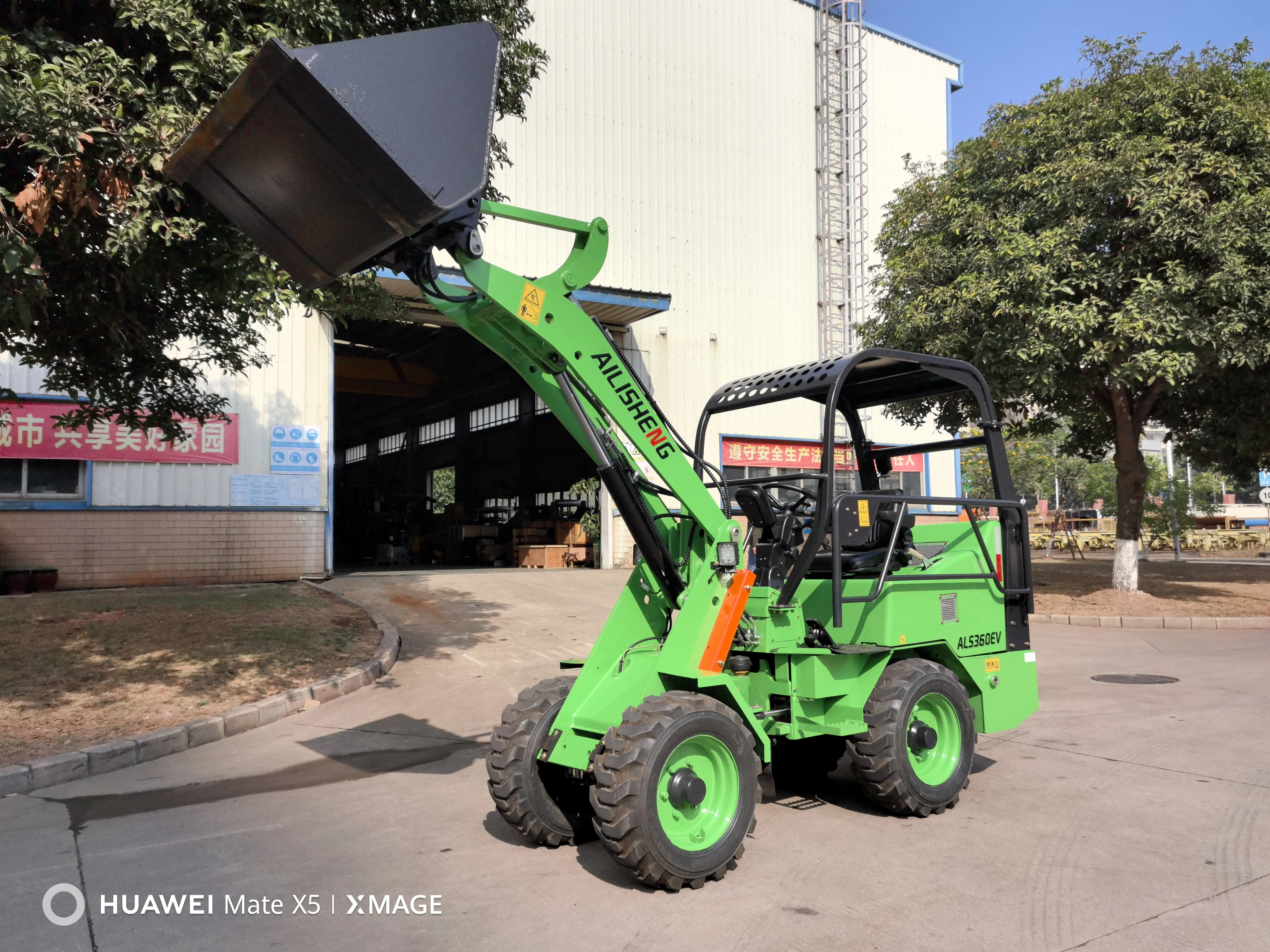

AILISHENG Construction Equipment Electric Mini Wheel Loader Electric Mini Wheel Loaderfactory
Product features
● Four wheel drive, full power. The whole machine has compact structure and flexible operation. The structural parts of the whole machine are optimized, stable and reliable.
● Reliable battery, drive motor and electrical accessory system, advanced AC controller and CANbus data bus technology ensure the durability and long endurance of the equipment.
● The cover of the whole machine can be turned over to facilitate maintenance. The system maintenance items are simple and convenient, saving maintenance time and labor cost. Families can charge by themselves, which is convenient and safe to use.
● The operating device is designed by ergonomics, with comfortable operation and stable driving. The whole machine protection frame provides full safety protection for drivers.
● Pure electric system has the advantages of high efficiency, zero exhaust emission, low noise, environmental protection and energy saving. It is suitable for indoor and outdoor use with lower cost.
● A variety of accessories can be selected to meet the needs of various working conditions such as loading, forking, grass clamping, snow pushing, cleaning, drilling, hoisting and so on.
Main technical parameter
|
ITEM |
ALS360EV |
|
|
Main parameter |
Operating weight |
2700Kg |
|
Rated Load |
800Kg |
|
|
Bucket capacity |
0.55m³ |
|
|
Moving speed |
0-18km/h |
|
|
Moving motor |
Motor type |
Permanent magnet synchronous motor |
|
Rated power of motor |
20kw |
|
|
Motor Duty Rating |
Duty with non-periodic load and speed variations |
|
|
Hydraulic Pump Moto |
Rated power of motor |
10Kw |
|
Motor Duty Rating |
Duty with non-periodic load and speed variations |
|
|
Battery |
Battery Type |
Lithium iron phosphate |
|
Battery Voltage |
144V |
|
|
Battery rated capacity |
155Ah(standard) |
|
|
Battery weight |
260Kg |
|
|
Charging time |
AC220V Charge:3h |
|
|
Operating time with full load |
3.5h |
|
|
Operating time with rated load |
4-5h |
|
|
Intermittent operation time |
5-6h |
|
|
Theoretical lifespan |
25 ℃ 0.5c charge and discharge for 3000 times, and the capacity shall not be less than 80% of the nominal capacity |
|
|
Driving system |
Operating voltage of driving system |
144V |
|
Electrical system |
Voltage of electrical system |
12V |
|
Tripping load with bucket(Refer to ISO8313) |
Tripping load when straight line driving |
1250Kg |
|
Tripping load when full turn |
900Kg |
|
|
Hydraulic drive system |
Displacement |
12 cc |
|
Working pressure |
170bar |
|
|
Hydraulic oil capacity |
30L |
|
|
Tyre |
Specifications |
26Í12-12 AS |
|
Total width |
1104mm |
|
Overall dimension
|
Dimensions |
ALS360EV |
|
A Total length with standard bucket |
4330mm |
|
A′ Transport position vehicle length |
4260mm |
|
Non-enclosed trailer height |
1970mm |
|
B Height to top of cabin |
2330mm |
|
C Total width |
|
|
Narrow tire |
1075mm |
|
Wide tire |
1329mm |
|
D Wheel base |
1550mm |
|
E Minimum ground clearance |
345mm |
|
F Track width |
|
|
Narrow tire |
812mm |
|
Wide tire |
939mm |
|
G Bucket width |
1370mm |
|
H Radius at the outer edge |
2541mm |
|
H′ Max. radius |
3037mm |
|
I Total working height |
3630mm |
|
J Max. height of bucket pivot |
2950mm |
|
K Maximum dumping height |
2190mm |
|
L Dumping reach |
630mm |
|
M Digging depth |
150mm |
|
N Max. inclination angle |
43° |
|
O Backroll angle on the ground |
42° |
|
P Departure angle |
22° |
|
Q Max. dumping angle |
32° |
|
T Total length without bucket |
3550mm |
Company Advantages
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd pays great attention on selecting the best materials to be used in our electric mini wheel loader collection.
· Manual inspection and equipment testing both have been carried out to ensure that the product is 100% qualified.
· electric mini wheel loader is deeply trusted by customers for its excellent quality.
Company Features
· As a large manufacturer of electric mini wheel loader, Xiamen Ailisheng Intelligent Equipment Co.,Ltd is competitive in its industry.
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd possesses a powerful technical staff and advanced production equipment.
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd aims to be a top manufacturer for electric mini wheel loader. Get info!
Application of the Product
The electric mini wheel loader produced by AILISHENG Construction Equipment is widely used in field for its excellent quality.
Based on customers' specific situations and needs, AILISHENG Construction Equipment provides comprehensive and reasonable solutions.
