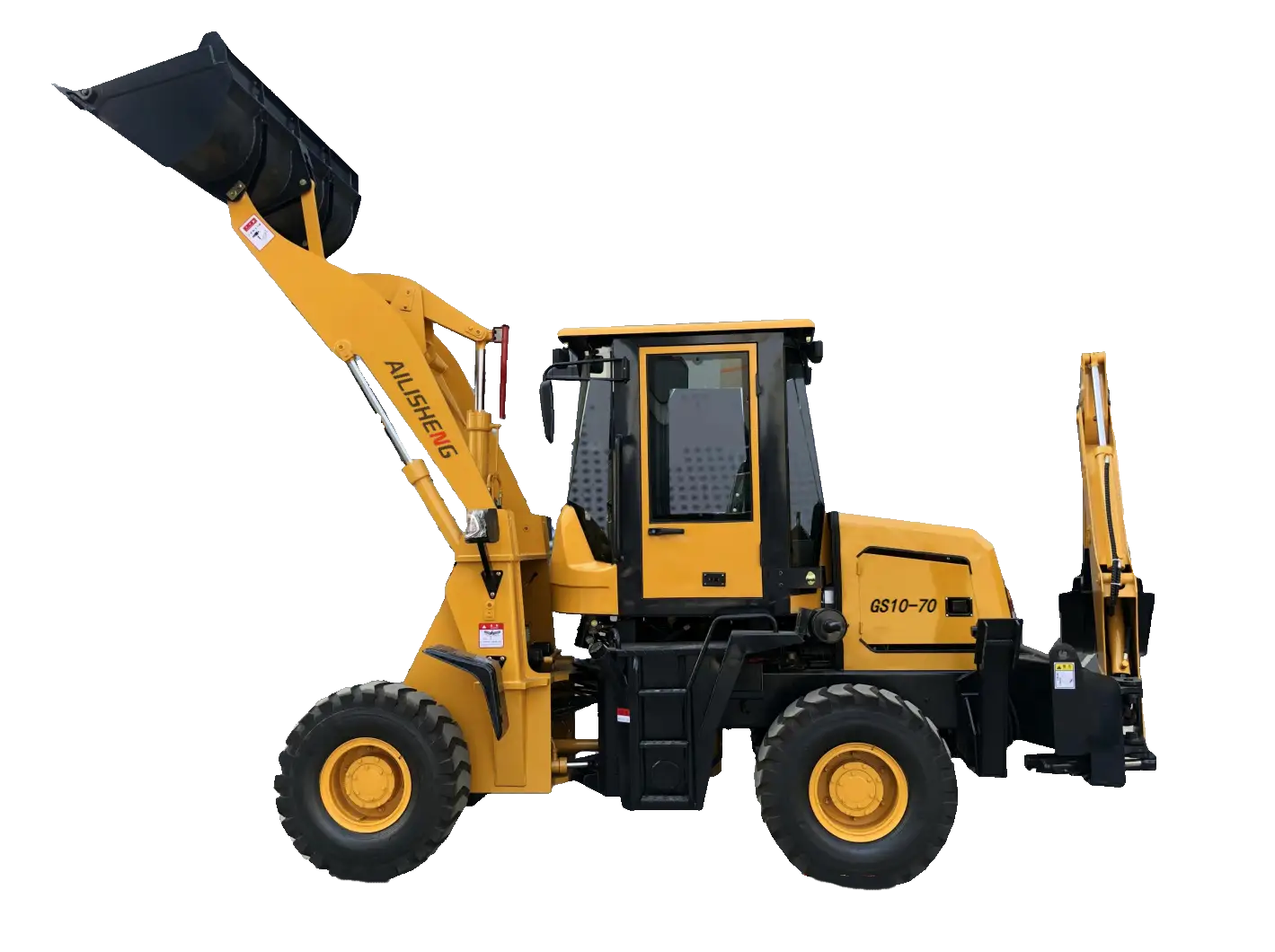

AILISHENG BACKHOE LOADERS GS10-70
Performance
- Power system:
Equipped with Yunnei high-power 58kw engine, the power output is more stable, theoperation of the whole machine is smoother, the fuel consumption is low, the power issufficient, the torque is large, and it is easy to maintain.
- Hydraulic system：
Using hydraulic dumping device to achieve fast unloading, convenient and efficient,saving manpower.
- Operating system:
Adopting a user-friendly design, the handle has a complete range of gears and is easy tooperate, making it convenient for workers to use.
- Off-road tires:
Using engineering rubber tires, it is suitable for complex and harsh working conditions, such as swamps, mountains, qrasslands, snow, deserts, etc., and has strong adaptability
- Application scenarios:
Small-scale engineering, agriculture, animal husbandry,
Specifications
|
Model |
Unit |
GS10-70 |
|
|
Performance Parameters |
|
||
|
Operating Weight |
kg |
4600 |
|
|
Digging Bucket |
Capacity |
m3 |
0.20 |
|
Width |
mm |
400 |
|
|
Max.digging force |
kN |
12 |
|
|
Arm digging force |
kN |
4.5 |
|
|
Loading bucket |
Bucket capacity |
m3 |
0.7 |
|
Bucket width |
mm |
1800 |
|
|
Engine |
Brand/Model |
|
Yunnei YN27GB |
|
Rated power/speed |
kw/rpm |
58/2400 |
|
|
Displacement |
L |
2.7 |
|
|
|
Pump type |
|
T50/25/25 |
|
Flow rate |
L/min |
100/50/50 |
|
|
Running speed(high/low) |
km/h |
26 |
|
|
Pressure of the system |
Mpa |
16 |
|
|
Max.traction |
kN |
25 |
|
|
Ground pressure |
kPa |
180 |
|
|
Gradeability |
° |
30 |
|
|
Fuel tank capacity |
L |
45 |
|
|
Hydraulic oil tank capacity |
L |
45 |
|
|
Transmission System |
|||
|
Gearbox |
|
Fixed axle power |
|
|
Gears |
|
Four Gears， |
|
|
Driving form |
|
Four-wheel drive |
|
|
Work Performance |
|||
|
Digging |
Max.digging height |
mm |
3500 |
|
Max.dumping height |
mm |
2000 |
|
|
Max.digging depth |
mm |
2000 |
|
|
Max.vertical digging depth |
mm |
2000 |
|
|
Max.digging radius |
mm |
3400 |
|
|
Loading |
Maximum dumping height |
mm |
3300 |
|
Loading and lifting capacity |
kg |
1200 |
|
|
Maximum lifing force |
KN |
25 |
|
|
Dimensions |
|||
|
Overall Dimension (LxWxH) |
mm |
5400X1870X2750 |
|
|
Wheel tread |
mm |
1510 |
|
|
Wheel base |
mm |
2200 |
|
|
Chassis ground clearance |
mm |
280 |
|
|
Tyre |
|||
|
Model |
mm |
23.5/70-16 |
|
|
Pressure of Front wheel |
Mpa |
2.5 |
|
|
Pressure of Back wheel |
Mpa |
2.5 |
|
Note: Specifications are subject to changes by the manufacturer without prior notice.
